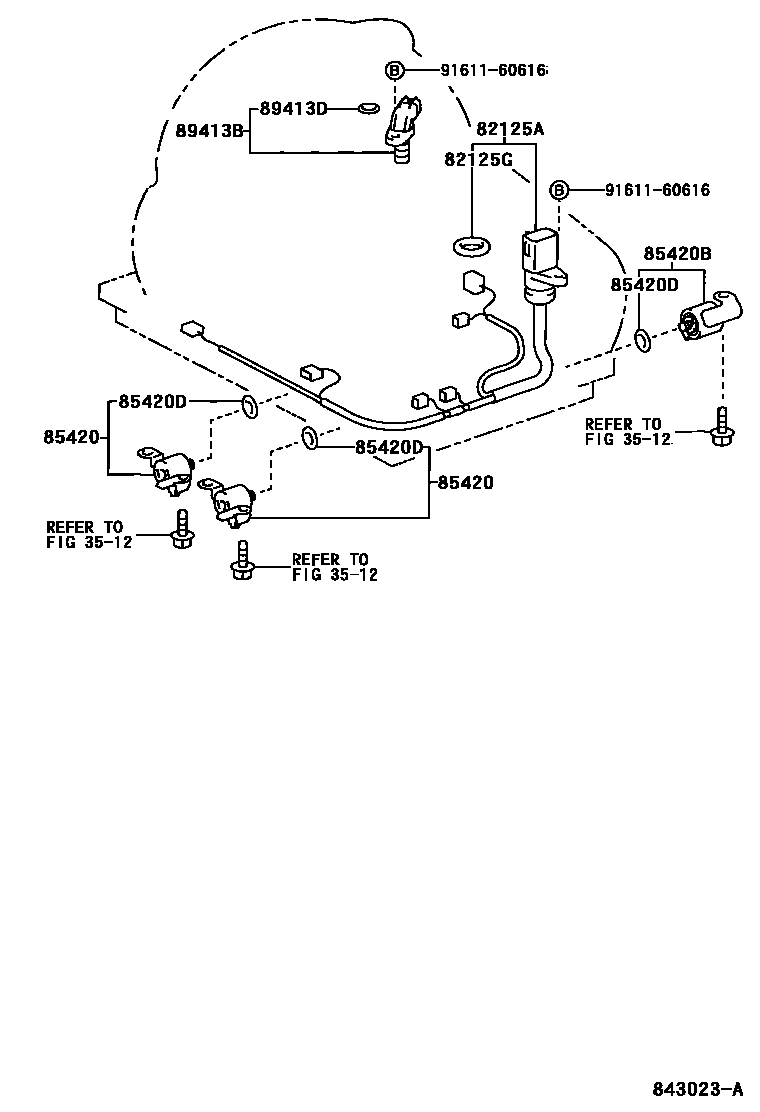

Toyota FUNCARGO — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

82125AWIRE, TRANSMISSION

main82125-20250i199908-200208

main82125-20260i199908-200208

main82125-52010i199908-200208

main82125-52100i200508-200509

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009i199908-200208

85420SOLENOID ASSY, TRANSMISSION

main35250-52020×2i200112-200208

main85420-52010×2i199908-200112

main85420-52020×2i199908-200112

85420BSOLENOID ASSY, TRANSMISSION

main35250-52050i200112-200208

main85420-52030i199908-200112

main85420-52040i199908-200112

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3i199908-200208

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010i199908-200208

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008i199908-200208

9161160616

main91611-60616

9 parts on this diagram · 3 diagrams in section

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION for Toyota FUNCARGO

This section contains 16 genuine Toyota parts for the OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota FUNCARGO. Key components include: VALVE BODY & OIL STRAINER (ATM), WIRE, TRANSMISSION, RING, O(FOR TRANSMISSION WIRE), COVER, CONNECTOR(FOR SHIFT CONTOROL SWITCH), SWITCH ASSY, TRANSMISSION SHIFT.
