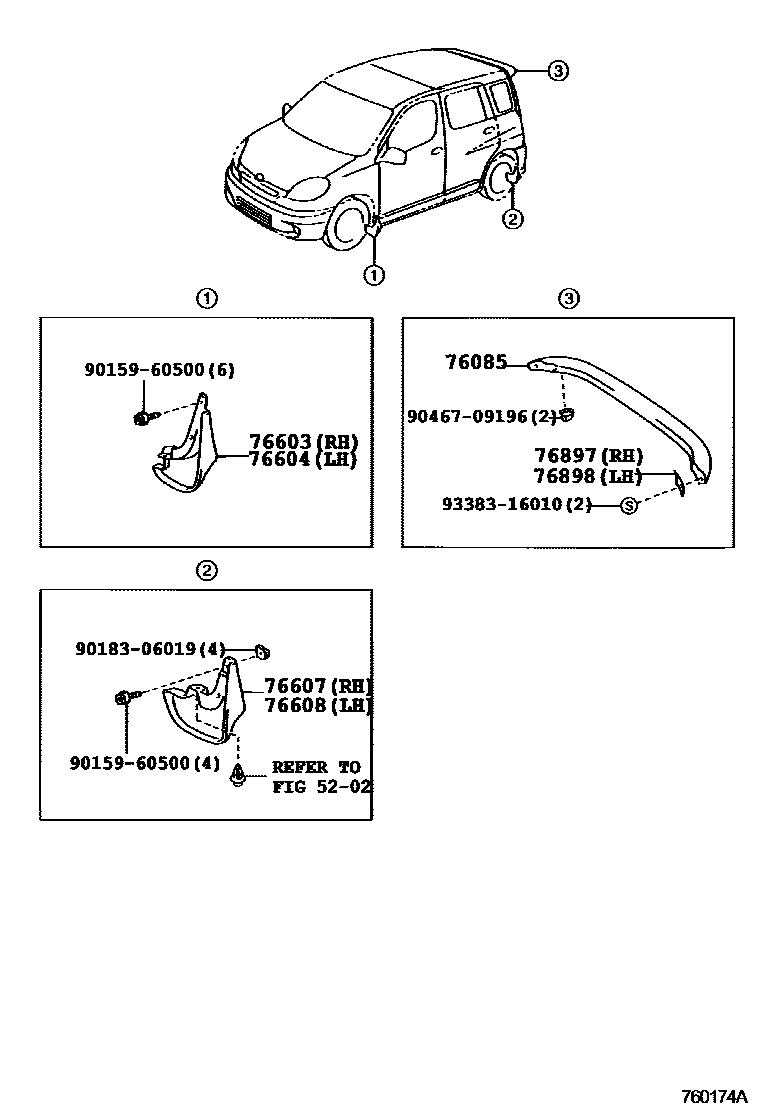

Toyota FUNCARGO — MUDGUARD & SPOILER

5202

76085SPOILER SUB-ASSY, REAR

main76871-52020-A0iNCP2#199908-200108

SUPER WHITE 2,KD6 ,040

sub76871-52906

main76871-52020-A1iNCP2#..G,X200208-200509

WHITE,068 ,KJ8

sub76871-52906

main76871-52020-A2iNCP2#..G,X200208-200509

WHITE PEARL CS.,064 ,KK2

sub76871-52906

main76871-52020-B0iNCP2#199908-200208

SILVER ME,KD7 ,199

sub76871-52906

main76871-52020-B1iNCP20,25..X200109-200208

sub76871-52906

main76871-52020-B2iNCP2#..G,X200208-200509

SILVER M.M.,1E7 ,KK4

sub76871-52906

main76871-52020-C0iNCP2#..G,X200208-200509

BLACK MC.,209 ,KK5

sub76871-52906

main76871-52020-D1iNCP2#..G,X200208-200509

SUPER RED 5,3P0 ,KK6

sub76871-52906

main76871-52020-F0iNCP2#199908-200208

YELLOW M.M.,KF2 ,584

sub76871-52906

main76871-52020-F1iNCP2#..G,X200208-200509

CHAMPAGNE ME.,583 ,KK7

sub76871-52906

main76871-52020-G0iNCP2#..G,X200208-200509

DK.GREEN MC.,6R4 ,KK8

sub76871-52906

main76871-52020-G1iNCP2#199908-200208

GREEN PM.,KE7 ,6S2

sub76871-52906

main76871-52020-H0iNCP2#..G,X200101-200103

sub76871-52906

main76871-52020-H1iNCP2#..G,X200208-200509

AQUA M.M.,774 ,KK1

sub76871-52906

main76871-52020-J0iNCP2#199908-200208

BLUE MC.,KF6 ,8M6

sub76871-52906

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-52020iNCP2#199908-200208

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-52020iNCP2#199908-200208

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-52020iNCP2#199908-200208

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-52020iNCP2#199908-200208

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-52010iNCP2#199908-200208

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-52010iNCP2#199908-200208

9015960500

main90159-60500

9018306019

main90183-06019

9046709196

main90467-09196

9338316010

main93383-16010

12 parts on this diagram · 1 diagram in section
