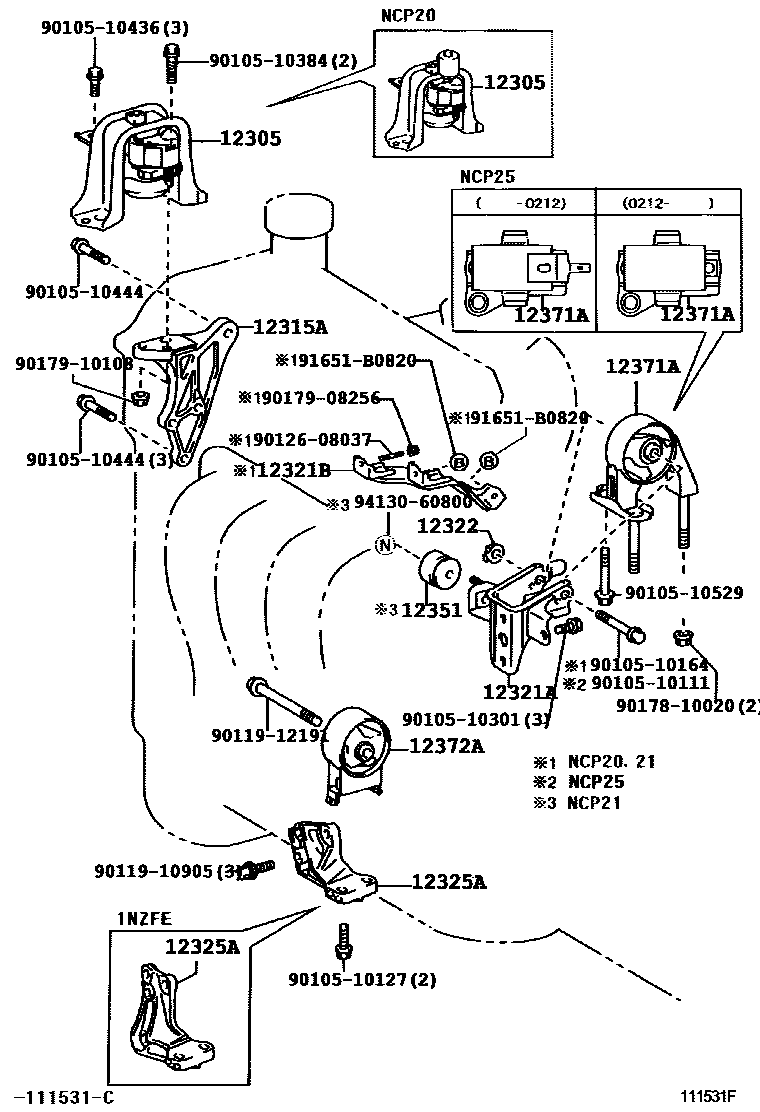

Toyota FUNCARGO — MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21020i1NZFE..NCP21199908-200208

main12305-21030i1NZFE..NCP25200208-200509

main12305-21060i2NZFE..NCP20200208-200509

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-21030i2NZFE..NCP20200208-200509

sub12315-21031

main12315-21040i1NZFE..NCP21,25200208-200509

sub12315-21041

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-21030i2NZFE..NCP20199908-200208

main12321-21050i1NZFE..NCP25199908-200208

main12321-21090i1NZFE..NCP21199908-200208

main12321-21140i2NZFE..NCP20200208-200509

main12321-21150i1NZFE..NCP21200208-200509

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-52010i1NZFE,2NZFE..NCP20,21199908-200208

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-23020i1NZFE,2NZFE..NCP20,21200208-200509

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21030i2NZFE..NCP20199908-200208

main12325-21060i1NZFE..NCP21200208-200509

main12325-21070i1NZFE..NCP25199908-200208

12351DAMPER, ENGINE MOUNTING

main12351-23010i1NZFE..NCP21199908-200208

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-21040i1NZFE..NCP25199908-200208

main12371-21041i1NZFE..NCP25200212-200509

main12371-23010i1NZFE,2NZFE..NCP20,21199908-200008

main12371-23011i1NZFE,2NZFE..NCP20,21200008-200208

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21060i1NZFE..NCP21199908-200208

main12372-23020i1NZFE,2NZFE..NCP20,25199908-200208

main12372-23050i1NZFE..NCP21200208-200509

9010510111

main90105-10111

9010510127

main90105-10127

9010510164

main90105-10164

9010510301

main90105-10301

9010510384

main90105-10384

9010510436

main90105-10436

9010510444

main90105-10444

9010510529

main90105-10529

9011910905

main90119-10905

9011912191

main90119-12191

9012608037

main90126-08037

9017810020

main90178-10020

9017908256

main90179-08256

9017910108

main90179-10108

91651B0820

main91651-B0820

9413060800

main94130-60800

25 parts on this diagram · 1 diagram in section
