Toyota FUNCARGO — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030i199908-200208

main87810-52040i200208-200509

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-44010i199908-200509

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-44010i199908-200509

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52010i199908-200509

main87910-52020-A0i199908-200008

SUPER WHITE 2,KD6 ,040

main87910-52020-B0i199908-200008

SILVER ME,KD7 ,199

main87910-52020-C0i199908-200008

BLACK MC.,KF4 ,209

main87910-52020-D0i199908-200008

SUPER RED 5,KE1 ,3P0

main87910-52020-F0i199908-200008

YELLOW M.M.,KF2 ,584

main87910-52020-F1i199908-200008

CHAMPAGNE ME.,KE3 ,583

main87910-52020-G0i199908-200008

DK.GREEN MC.,KF5 ,6R4

main87910-52020-G1i199908-200008

GREEN PM.,KE7 ,6S2

main87910-52020-J0i199908-200008

BLUE MC.,KF6 ,8M6

main87910-52090-A0i199908-200108

main87910-52090-A0i200008-200108

SUPER WHITE 2,KD6 ,040

main87910-52090-A1i200108-200208

WHITE,KJ6 ,068

main87910-52090-A1i200108-200208

main87910-52090-A1i200208-200312

WHITE,068 ,KJ8

main87910-52090-A2i200208-200312

WHITE PEARL CS.,064 ,KK2

main87910-52090-B0i200008-200208

SILVER ME,KD7 ,199

main87910-52090-B0i199908-200208

main87910-52090-B1i200206-200208

main87910-52090-B1i200109-200208

main87910-52090-B2i200208-200312

SILVER M.M.,1E7 ,KK4

main87910-52090-C0i199908-200208

main87910-52090-C0i200008-200208

BLACK MC.,KF4 ,209

main87910-52090-C0i200208-200312

BLACK MC.,209 ,KK5

main87910-52090-D0i200208-200312

SUPER RED 5,3P0 ,KK6

main87910-52090-D0i199908-200208

main87910-52090-D0i200008-200208

SUPER RED 5,KE1 ,3P0

main87910-52090-F0i199908-200208

main87910-52090-F0i200008-200208

YELLOW M.M.,KF2 ,584

main87910-52090-F1i200208-200312

CHAMPAGNE ME.,583 ,KK7

main87910-52090-F1i200008-200208

CHAMPAGNE ME.,KE3 ,583

main87910-52090-F1i199908-200208

main87910-52090-G0i200208-200312

DK.GREEN MC.,6R4 ,KK8

main87910-52090-G0i200008-200208

DK.GREEN MC.,KF5 ,6R4

main87910-52090-G0i199908-200208

main87910-52090-G1i200008-200208

GREEN PM.,KE7 ,6S2

main87910-52090-G1i199908-200208

main87910-52090-H0i200101-200103

main87910-52090-H1i200208-200312

AQUA M.M.,774 ,KK1

main87910-52090-J0i200008-200208

BLUE MC.,KF6 ,8M6

main87910-52090-J0i199908-200208

main87910-52090-J0i200208-200312

BLUE MC.,8M6 ,KK9

main87910-52091-A1i200401-200509

WHITE,068 ,KJ8

main87910-52091-A2i200401-200509

WHITE PEARL CS.,064 ,KK2

main87910-52091-B2i200401-200509

SILVER M.M.,1E7 ,KK4

main87910-52091-C0i200401-200509

BLACK MC.,209 ,KK5

main87910-52091-D0i200401-200509

SUPER RED 5,3P0 ,KK6

main87910-52091-F1i200401-200509

CHAMPAGNE ME.,583 ,KK7

main87910-52091-G0i200401-200509

DARK GREEN MC.,6R4 ,KK8

main87910-52091-H1i200401-200509

AQUA M.M.,774 ,KK1

main87910-52091-J0i200401-200509

BLUE MC.,8M6 ,KK9

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52010i199908-200509

main87940-52020-A0i199908-200008

SUPER WHITE 2,KD6 ,040

main87940-52020-B0i199908-200008

SILVER ME,KD7 ,199

main87940-52020-C0i199908-200008

BLACK MC.,KF4 ,209

main87940-52020-D0i199908-200008

SUPER RED 5,KE1 ,3P0

main87940-52020-F0i199908-200008

YELLOW M.M.,KF2 ,584

main87940-52020-F1i199908-200008

CHAMPAGNE ME.,KE3 ,583

main87940-52020-G0i199908-200008

DK.GREEN MC.,KF5 ,6R4

main87940-52020-G1i199908-200008

GREEN PM.,KE7 ,6S2

main87940-52020-J0i199908-200008

BLUE MC.,KF6 ,8M6

main87940-52070-A0i199908-200108

main87940-52070-A0i200008-200108

SUPER WHITE 2,KD6 ,040

main87940-52070-A1i200108-200208

WHITE,KJ6 ,068

main87940-52070-A1i200108-200208

main87940-52070-A1i200208-200312

WHITE,068 ,KJ8

main87940-52070-A2i200208-200312

WHITE PEARL CS.,064 ,KK2

main87940-52070-B0i200008-200208

SILVER ME,KD7 ,199

main87940-52070-B0i199908-200208

main87940-52070-B1i200109-200208

main87940-52070-B1i200206-200208

main87940-52070-B2i200208-200312

SILVER M.M.,1E7 ,KK4

main87940-52070-C0i199908-200208

main87940-52070-C0i200208-200312

BLACK MC.,209 ,KK5

main87940-52070-C0i200008-200208

BLACK MC.,KF4 ,209

main87940-52070-D0i199908-200208

main87940-52070-D0i200208-200312

SUPER RED 5,3P0 ,KK6

main87940-52070-D0i200008-200208

SUPER RED 5,KE1 ,3P0

main87940-52070-F0i200008-200208

YELLOW M.M.,KF2 ,584

main87940-52070-F0i199908-200208

main87940-52070-F1i200008-200208

CHAMPAGNE ME.,KE3 ,583

main87940-52070-F1i199908-200208

main87940-52070-F1i200208-200312

CHAMPAGNE ME.,583 ,KK7

main87940-52070-G0i199908-200208

main87940-52070-G0i200008-200208

DK.GREEN MC.,KF5 ,6R4

main87940-52070-G0i200208-200312

DK.GREEN MC.,6R4 ,KK8

main87940-52070-G1i200008-200208

GREEN PM.,KE7 ,6S2

main87940-52070-G1i199908-200208

main87940-52070-H0i200101-200103

main87940-52070-H1i200208-200312

AQUA M.M.,774 ,KK1

main87940-52070-J0i200008-200208

BLUE MC.,KF6 ,8M6

main87940-52070-J0i200208-200312

BLUE MC.,8M6 ,KK9

main87940-52070-J0i199908-200208

main87940-52071-A1i200401-200509

WHITE,068 ,KJ8

main87940-52071-A2i200401-200509

WHITE PEARL CS.,064 ,KK2

main87940-52071-B2i200401-200509

SILVER M.M.,1E7 ,KK4

main87940-52071-C0i200401-200509

BLACK MC.,209 ,KK5

main87940-52071-D0i200401-200509

SUPER RED 5,3P0 ,KK6

main87940-52071-F1i200401-200509

CHAMPAGNE ME.,583 ,KK7

main87940-52071-G0i200401-200509

DARK GREEN MC.,6R4 ,KK8

main87940-52071-H1i200401-200509

AQUA M.M.,774 ,KK1

main87940-52071-J0i200401-200509

BLUE MC.,8M6 ,KK9

9017906208

main90179-06208

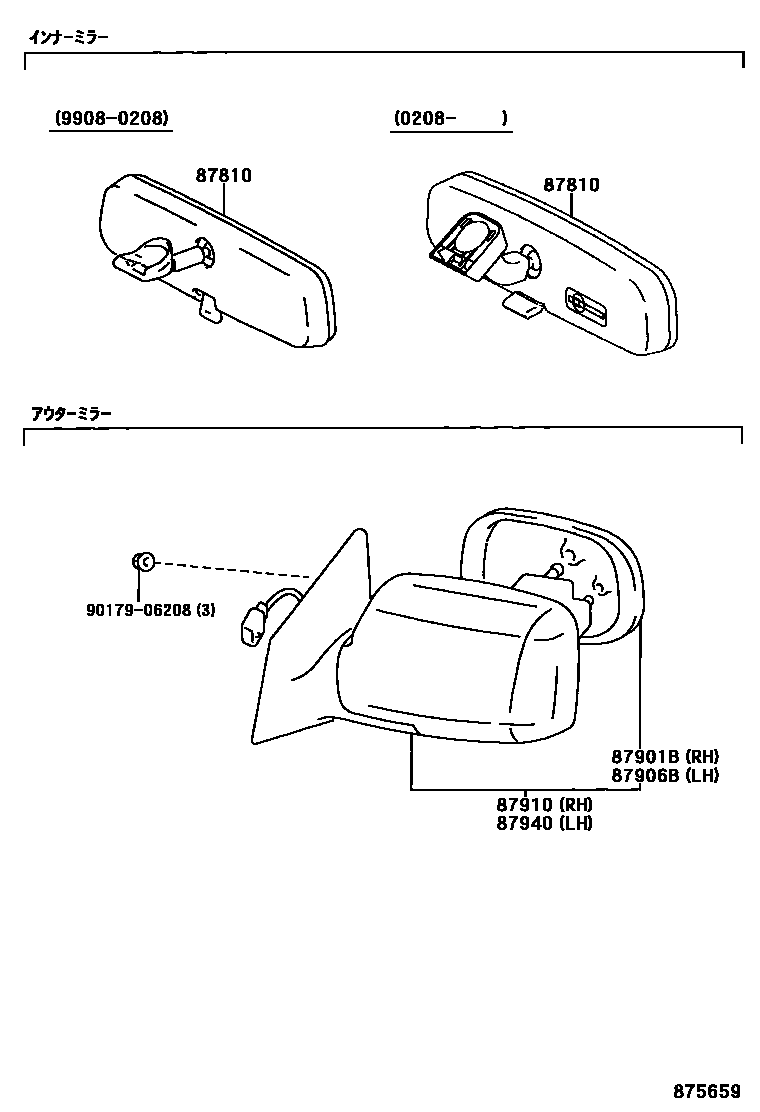

6 parts on this diagram · 1 diagram in section

MIRROR for Toyota FUNCARGO

This section contains 6 genuine Toyota parts for the MIRROR system of the Toyota FUNCARGO. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
