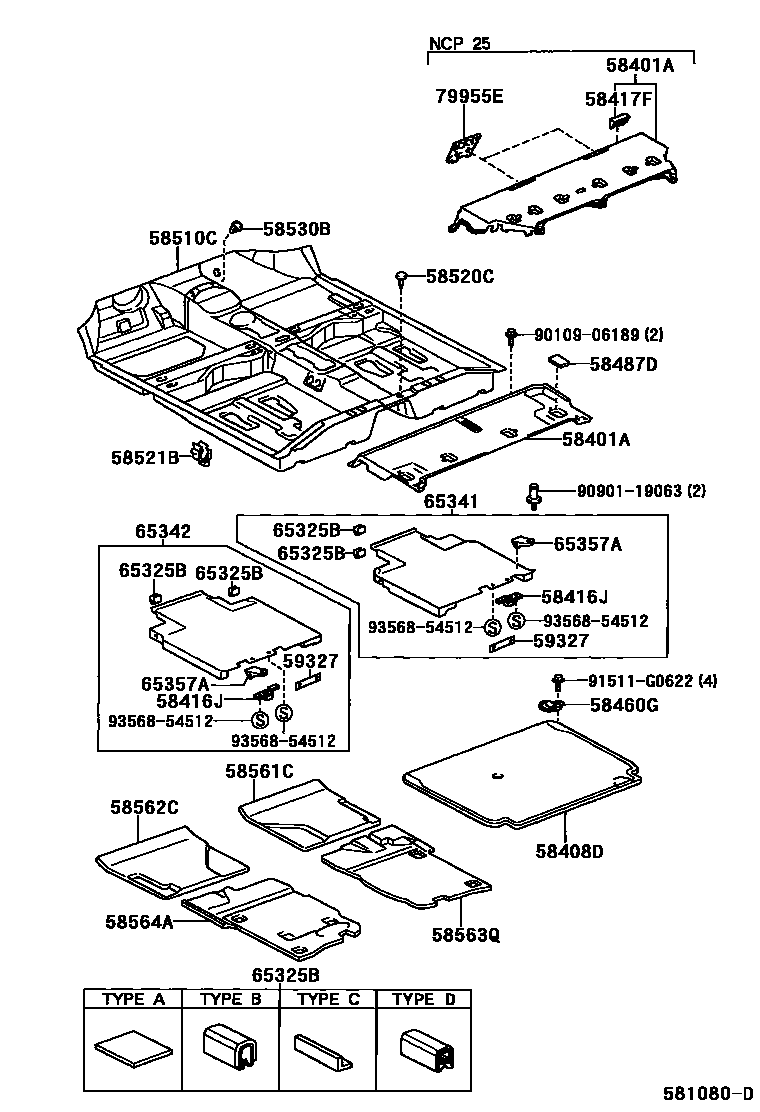

Toyota FUNCARGO — MAT & CARPET

0001 1 0002 1��(6:4 ����� �� �-�)

58401ABOARD SUB-ASSY, DECK, NO.1

main58401-52010-B1iNCP20,21199908-200208

GRAY,TRIM7#,9#

main58401-52010-B2iNCP20,21200208-200509

DK.GRAY,TRIM1#

main58401-52020-B1iNCP25199908-200208

GRAY,TRIM7#,9#

main58401-52030-B0iNCP20,21..G,X200208-200509

main58401-52040-B0iNCP25200208-200509

DK.GRAY,TRIM1#

58408DBOARD SUB-ASSY, DECK, NO.2

main58408-52010-B1iNCP20,21199908-200208

GRAY,TRIM7#,9#

main58408-52010-B2iNCP20,21200208-200509

DK.GRAY,TRIM1#

main58408-52020-B1iNCP25199908-200208

GRAY,TRIM7#,9#

main58408-52020-B2iNCP25200208-200509

DK.GRAY,TRIM1#

58416JBRACKET, DECK BOARD, NO.1

main58416-52010×2iNCP2#199908-200208

58417FBRACKET, DECK BOARD

main58417-52010×4iNCP25199908-200208

58460GSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-52020×4iNCP2#199908-200208

58487DCAP, DECK BOARD SERVICE HOLE

main58487-52010-B0×4iNCP20,21199908-200208

SHADOW GRAY,TRIM7#,9#

main58487-52010-B1×2iNCP20,21..G,X200208-200509

main58487-52020-B0×4iNCP25199908-200208

SHADOW GRAY,TRIM7#,9#

main58487-52020-B1×4iNCP25200208-200509

DK.GRAY,TRIM1#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52030-B0iNCP25199908-200004

GRAY,TRIM7#,9#

main58510-52031-B0iNCP25200004-200208

GRAY,TRIM7#,9#

main58510-52031-B2iNCP25200208-200509

GRAY,TRIM1#

main58510-52040-B0iNCP25199908-200004

main58510-52041-B0iNCP25200004-200208

main58510-52041-B1iNCP25200208-200509

main58510-52390-B0iNCP25199908-200004

main58510-52391-B0iNCP25200004-200208

main58510-52391-B1iNCP25..X200208-200308

main58510-52391-B2iNCP25..G200310-200509

main58510-52400-B0iNCP25199908-200004

main58510-52401-B0iNCP25200004-200208

main58510-52401-B1iNCP25..G200208-200310

main58510-52401-B2iNCP25..G200310-200509

main58510-52420-B0iNCP20,21199908-200004

GRAY,TRIM7#,9#

main58510-52421-B0iNCP20,21200004-200208

GRAY,TRIM7#,9#

main58510-52422-B1iNCP20,21200208-200509

GRAY,TRIM1#

main58510-52430-B0iNCP20,21199908-200004

main58510-52431-B0iNCP20,21200004-200208

main58510-52432-B1iNCP20,21200208-200509

main58510-52440-B0iNCP20,21199908-200004

main58510-52441-B0iNCP20,21200004-200208

main58510-52442-B1iNCP21200208-200310

main58510-52442-B2iNCP21200310-200509

main58510-52450-B0iNCP20,21199908-200004

main58510-52451-B0iNCP20,21200004-200208

main58510-52452-B1iNCP20..X200208-200308

main58510-52452-B2iNCP21200310-200509

main58510-5C050-B0iNCP20,21..G,X200208-200509

main58510-5C060-B0iNCP21200208-200310

main58510-5C060-B1iNCP21200310-200509

main58510-5C070-B0iNCP20,21..G,X200208-200509

main58510-5C080-B0iNCP21200208-200310

main58510-5C080-B1iNCP21200310-200509

main58510-5C090-B0iNCP25..G,X200208-200509

main58510-5C100-B0iNCP25..G,X200208-200509

main58510-5C110-B0iNCP25..G200208-200310

main58510-5C110-B1iNCP25..G200310-200509

main58510-5C120-B0iNCP25..G200208-200310

main58510-5C120-B1iNCP25..G200310-200509

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-P0iNCP20,21199908-199910

GRAY,TRIM7#,9#

main90467-07049-B7×2iNCP2#200208-200509

DK.GRAY,TRIM1#

main90467-07049-P0iNCP2#199910-200004

SHADOW GRAY,TRIM7#,9#

58521BHOOK, FLOOR CARPET

main58521-52010×4iNCP2#199908-200208

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-10091iNCP2#200208

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52050iNCP20,21199908-200208

sub58561-52051

main58561-52060iNCP25199908-200208

sub58561-52061

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52050iNCP2#200208-200509

sub58562-52051

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52030iNCP20,21199908-200208

sub58563-52031

main58563-52040iNCP25199908-200208

sub58563-52041

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52020iNCP20,21200208-200509

sub58564-52021

main58564-52030iNCP25199908-200208

sub58564-52031

59327BELT, FLOOR COVER

main59327-32010×2iNCP2#199908-200208

main59327-32010-A0×2iNCP2#200208-200509

IVORY

65325BPLATE, FLOOR BOARD, FRONT

main65325-52010×14iNCP2#199908-199909

main65325-52011×22iNCP2#199909-199911

main65325-52012×8iNCP2#200208-200509

main65325-52020×2iNCP2#200208-200509

main65325-52030×4iNCP2#200010-200208

65341BOARD, FLOOR, NO.1

main65341-52010-B1iNCP20,21199908-199911

GRAY,TRIM7#,9#

main65341-52011-B1iNCP20,21199911-200001

GRAY,TRIM7#,9#

main65341-52012-B1iNCP20,21200001-200208

GRAY,TRIM7#,9#

main65341-52012-B2iNCP20,21200208-200509

DK.GRAY,TRIM1#

main65341-52020-B1iNCP25199908-200208

GRAY,TRIM7#,9#

main65341-52020-B2iNCP25200208-200509

DK.GRAY,TRIM1#

main65341-52030-B1iNCP20,21..G,X200208-200509

main65341-52070-B1iNCP25..G,X200208-200509

65342BOARD, FLOOR, NO.2

main65342-52010-B1iNCP20,21199908-199911

GRAY,TRIM7#,9#

main65342-52011-B1iNCP20,21199911-200001

GRAY,TRIM7#,9#

main65342-52012-B1iNCP20,21200001-200208

GRAY,TRIM7#,9#

main65342-52012-B2iNCP20,21200208-200509

DK.GRAY,TRIM1#

main65342-52020-B1iNCP25199908-200208

GRAY,TRIM7#,9#

main65342-52020-B2iNCP25200208-200509

DK.GRAY,TRIM1#

main65342-52030-B1iNCP20,21..G,X200208-200509

main65342-52040-B1iNCP25..G,X200208-200509

65357ACOVER, FLOOR BOARD

main65357-52010×4iNCP20,21199908-199911

main65357-52011×4iNCP20,21199911-200001

main65357-52012×4iNCP20,21200001-200208

main65357-52020×4iNCP25199908-200208

79955ECOVER, REAR SEAT FRONT BRACKET

main79955-52030-B0×2iNCP25200208-200509

DK.GRAY,TRIM1#

9010906189

main90109-06189

9090119063

main90901-19063

91511G0622

main91511-G0622

9356854512

main93568-54512

24 parts on this diagram · 2 diagrams in section
