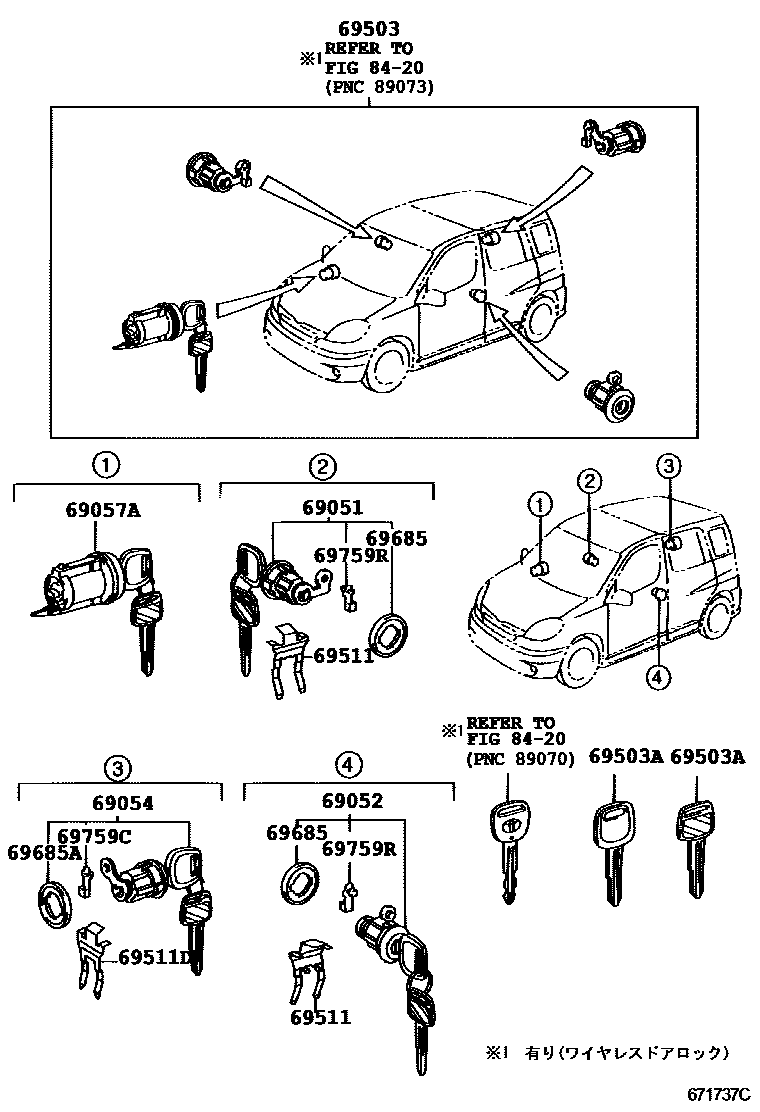

Toyota FUNCARGO — LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-52070iNCP20,25..J199908-200208

sub69051-52100

main69051-52080iNCP2#199908-200208

sub69051-52100

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-52070iNCP20,25..J199908-200208

sub69052-52100

main69052-52080iNCP2#199908-200208

sub69052-52100

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-52120iNCP20,25..J199908-200208

sub69055-52150

main69055-52130iNCP2#199908-200208

sub69055-52150

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-52010iNCP20,25..J199908-200208

sub69057-52100

main69057-52020iNCP2#199908-200208

69503CYLINDER SET, LOCK

main69005-52070iNCP20,25..J199908-200208

main69005-52620iNCP20,25..J200208-200509

69503AKEY, BLANK

main90999-00166iNCP20,25..J199908-200208

main90999-00167iNCP2#199908-200208

main90999-00186iNCP2#200208-200509

main90999-00199iNCP20,25..J200208-200509

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-16030×2iNCP2#200208-200509

69511DRETAINER, BACK DOOR LOCK CYLINDER

main69511-16030iNCP2#199908-200208

69685PAD, LOCK CYLINDER

main69563-10020×2iNCP2#200208-200509

main69563-16050×2iNCP2#199908-200208

69685APAD, LOCK CYLINDER

main69563-10020iNCP2#200208-200509

main69563-16050iNCP2#199908-200208

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080iNCP2#199908-200208

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090iNCP2#199908-200208

main69759-32100iNCP2#199908-200208

8420

13 parts on this diagram · 2 diagrams in section
