Toyota FUNCARGO — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-P0i200208-200509

LT.GRAY,TRIM1#

main81240-12060-P0i199908-200208

LT.GRAY,TRIM7#,9#

main81240-52010-B0i200208-200509

main81240-52010-B0i199908-200208

81240BBULB, ROOM LAMP, NO.1

main90981-14011i199908-200509

81241LENS, ROOM LAMP, NO.1

main81241-12020i199908-200509

main81241-44010i199908-200509

81250LAMP ASSY, ROOM, NO.2

main81250-52020-B0i200208-200409

LT.GRAY,TRIM1#

main81250-52020-B0i199908-200208

LT.GRAY,TRIM7#,9#

main81250-52021-B0i200410-200509

LT.GRAY,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main90981-12029i199908-200409

main90981-12033i200410-200509

main90981-14002i199908-200509

81253BODY, REAR ROOM LAMP

main81253-52010-B0i199908-200208

LT.GRAY,TRIM7#,9#

main81253-52010-B0i200208-200509

LT.GRAY,TRIM1#

81260ALAMP ASSY, MAP

main81260-46010-B2i199908-200208

LT.GRAY,TRIM7#,9#

main81260-46010-B2i200208-200509

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-14004i199908-200509

81261LENS AND COVER, MAP LAMP

main81261-46010i199908-200509

81367BATTERY, ROOM LAMP

main81367-52020i199908-200509

81398BRACKET, REAR LOOM LAMP

main81398-52010i199908-200203

main81398-52011i200203-200206

main81398-52012i200206-200509

8148652010RETAINER, MAP LAMP

main81486-52010

9011906067

main90119-06067

9015960594

main90159-60594

9016430008

main90164-30008

9016445006

main90164-45006

9151160610

main91511-60610

9354014516

main93540-14516

9356054010

main93560-54010

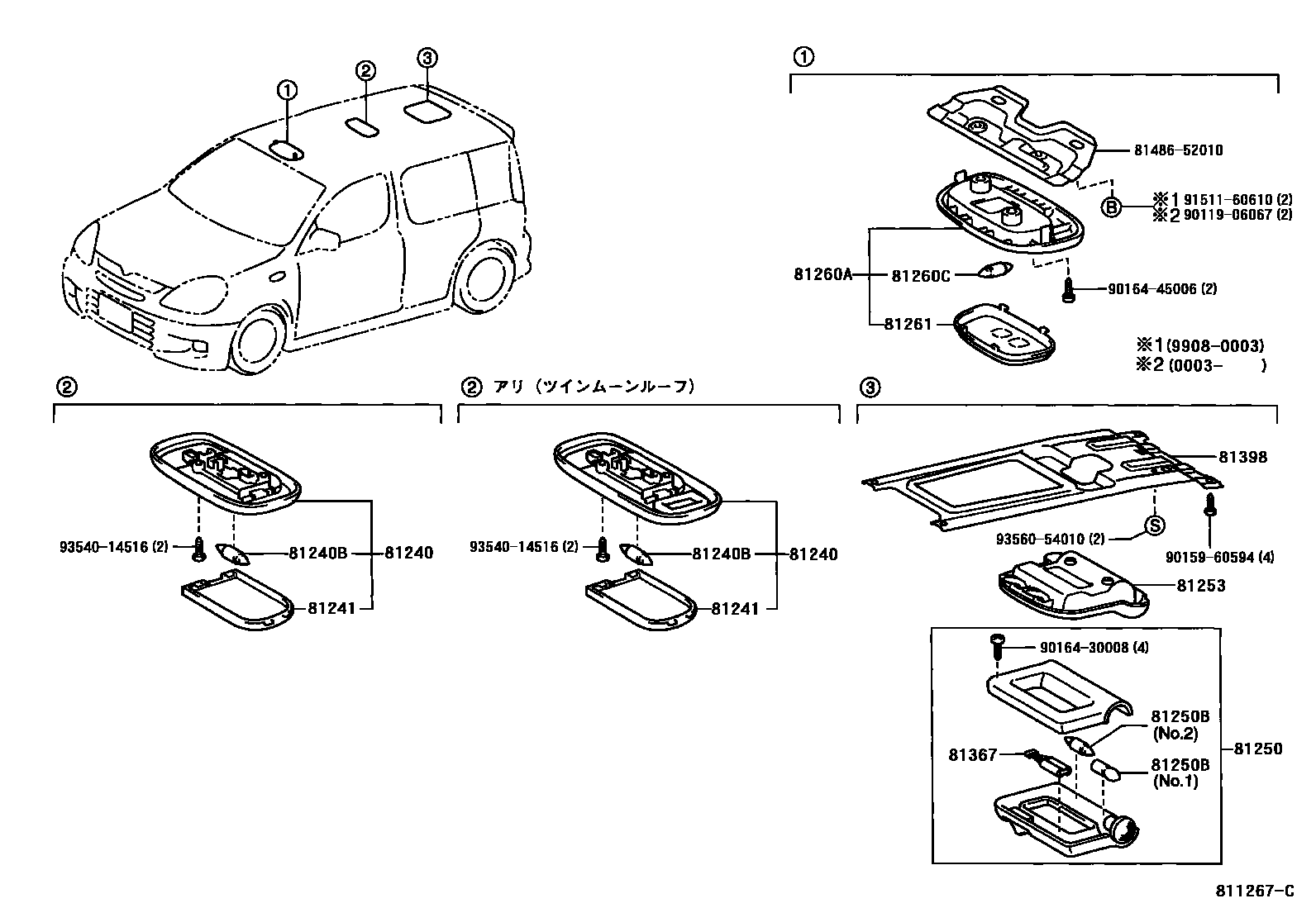

19 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota FUNCARGO

This section contains 19 genuine Toyota parts for the INTERIOR LAMP system of the Toyota FUNCARGO. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
