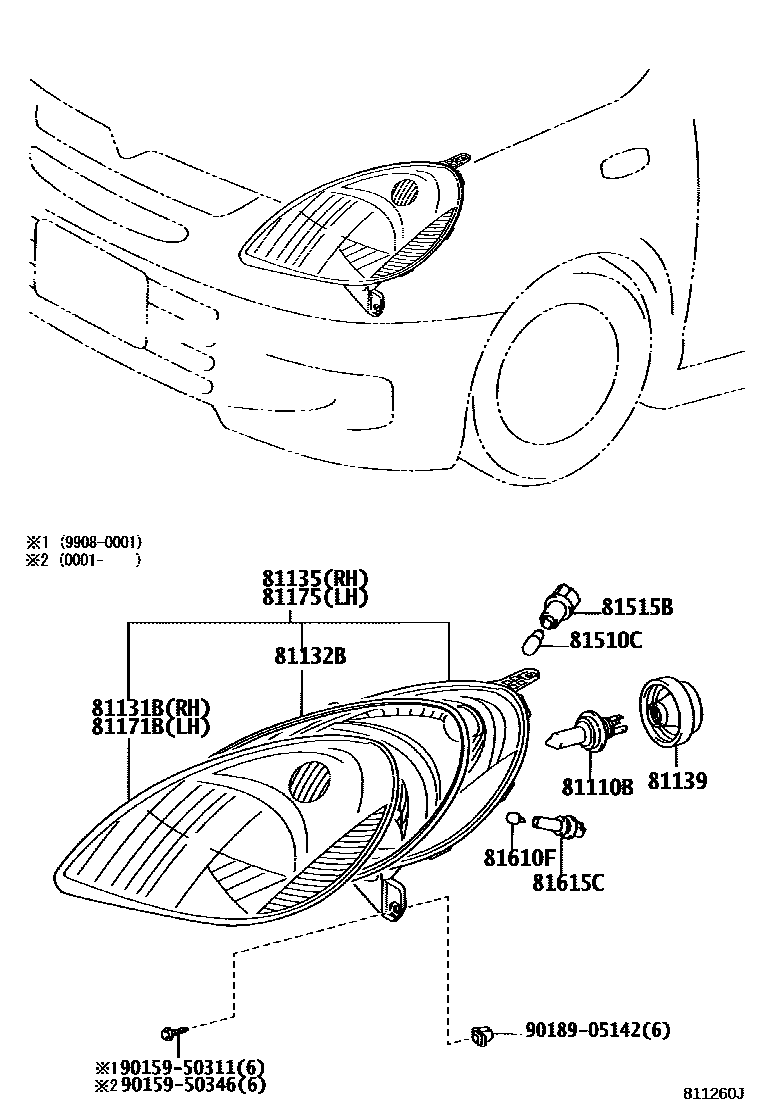

Toyota FUNCARGO — HEADLAMP

0001 1 0002 1 0003 1������-�� ��������

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNCP2#200208-200509

main90981-22002×2iNCP2#199908-200208

sub90981-13055

81131BHEAD LAMP LENS, RH

main81131-52060iNCP2#199908-200208

main81131-52380iNCP2#200208-200509

main81131-52410iNCP2#..G,X200208-200509

81132BGASKET, HEADLAMP LENS

main81132-52060×2iNCP2#199908-200208

sub81132-30A60

main81132-52380iNCP2#..G,X200208-200509

81135UNIT ASSY, HEADLAMP, RH

main81130-52061iNCP2#199908-200208

main81130-52380iNCP2#200208-200509

main81145-52410iNCP2#..G,X200208-200509

81139COVER, HEADLAMP SOCKET

main81139-1E340×2iNCP2#200208-200509

main81139-52060×2iNCP2#199908-200208

81171BHEAD LAMP LENS, LH

main81171-52060iNCP2#199908-200208

main81171-52380iNCP2#200208-200509

main81171-52410iNCP2#..G,X200208-200509

81175UNIT ASSY, HEADLAMP, LH

main81170-52061iNCP2#199908-200208

main81170-52380iNCP2#200208-200509

main81185-52410iNCP2#..G,X200208-200509

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13050×2iNCP2#199908-200208

sub90981-13043

main90981-15011×2iNCP2#200208-200509

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNCP2#..G,X200208-200509

main90075-99128×2iNCP2#199908-200208

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP2#199908-200208

81615CSOCKET & WIRE, CLEARANCE LAMP

main81138-52060×2iNCP2#199908-200208

9015950311

main90159-50311

9015950346

main90159-50346

9018905142

main90189-05142

14 parts on this diagram · 3 diagrams in section
