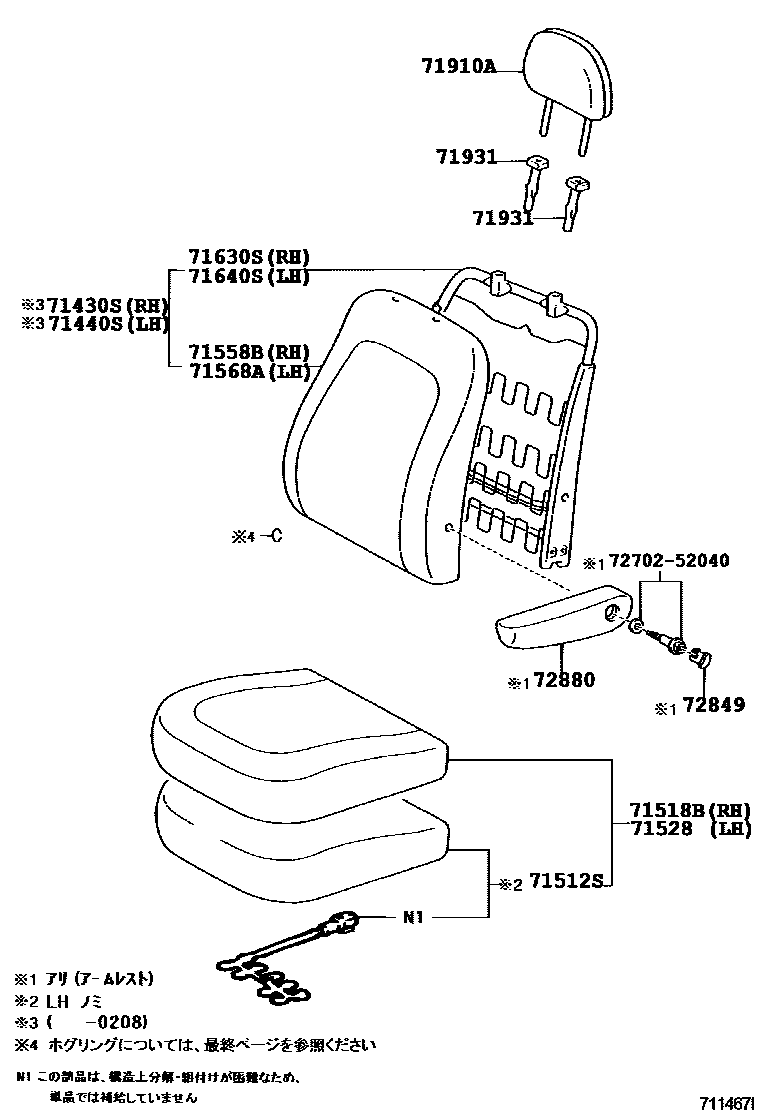

Toyota FUNCARGO — FRONT SEAT & SEAT TRACK
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71518BPAD, FRONT SEAT CUSHION W/COVER, RH
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
71528PAD, FRONT SEAT CUSHION W/COVER, LH
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
71558BPAD, FRONT SEATBACK W/COVER, RH
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
71568APAD, FRONT SEATBACK W/COVER, LH
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
72849CAP, SEAT ARMREST, NO.2
DK.GRAY,TRIM1#
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
72880ARMREST ASSY, SEAT, C RH
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
DK. GRAY,TRIM1#
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
7270252040BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52040
14 parts on this diagram · 11 diagrams in section
FRONT SEAT & SEAT TRACK for Toyota FUNCARGO
This section contains 55 genuine Toyota parts for the FRONT SEAT & SEAT TRACK system of the Toyota FUNCARGO. Key components include: BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE), BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE), PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE), PAD, FRONT SEAT CUSHION W/COVER, RH, PAD, FRONT SEAT CUSHION W/COVER, LH.
