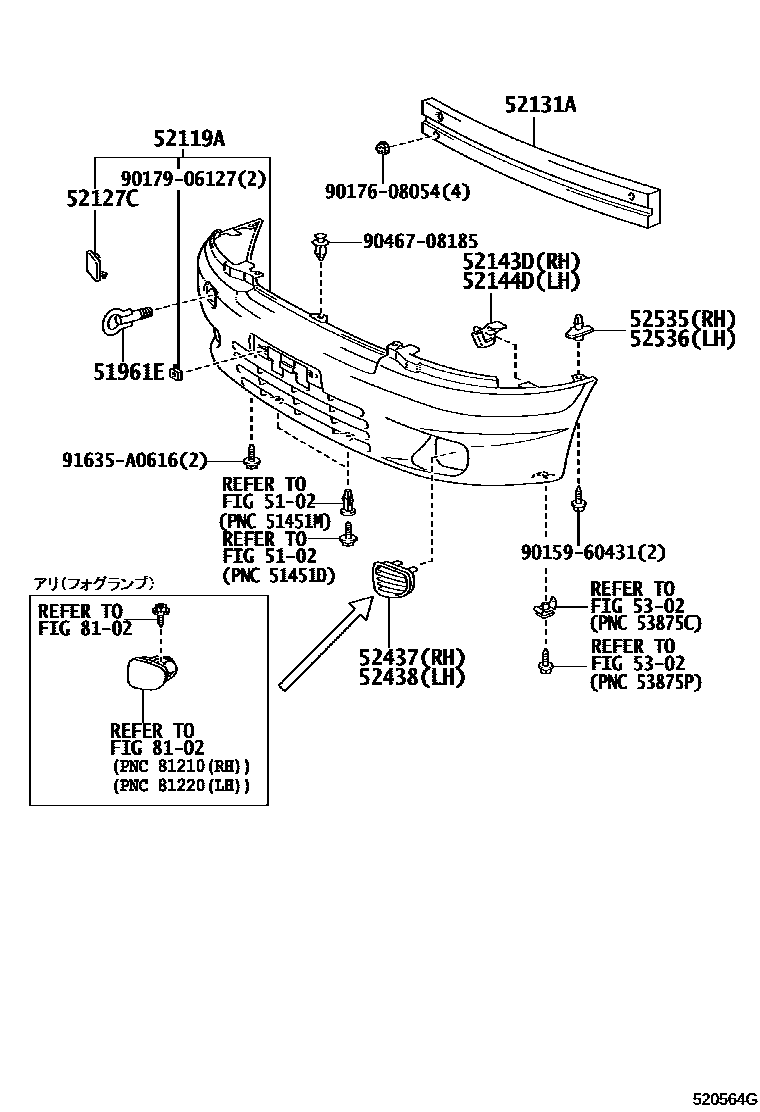

Toyota FUNCARGO — FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52119ACOVER, FRONT BUMPER
SUPER WHITE 2,040
WHITE,068
SILVER ME.,KF2 ,KJ6 ,199
GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
YELLOW M.M.,584
GREEN PM.,6S2
DK.GREEN MC.,6R4
BLUE MC.,8M6
WHITE PEARL CS.,064
WHITE,068
GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9
SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
52127CCOVER, FRONT BUMPER HOLE
SUPER WHITE 2,040
WHITE,068
SILVER ME,KF2 ,KJ6 ,199
BLACK MC.,209
GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6
GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6
SUPER RED 5,3P0
YELLOW M.M.,584
CHAMPAGNE ME.,583
DK.GREEN MC.,6R4
GREEN PM.,6S2
BLUE MC.,8M6
52131AREINFORCEMENT, FRONT BUMPER
52143DBRACKET, FRONT BUMPER SIDE, RH
52144DBRACKET, FRONT BUMPER SIDE, LH
52437COVER, FRONT BUMPER GUARD, RH
52438COVER, FRONT BUMPER GUARD, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
5302HOOD & FRONT FENDER
8102FOG LAMP
9015960431
main90159-60431
9017608054
main90176-08054
9017906127
main90179-06127
9046708185
main90467-08185
91635A0616
main91635-A0616
18 parts on this diagram · 2 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota FUNCARGO
This section contains 25 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota FUNCARGO. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, HOOK, FRONT, COVER, FRONT BUMPER, COVER, FRONT BUMPER HOLE, REINFORCEMENT, FRONT BUMPER.
