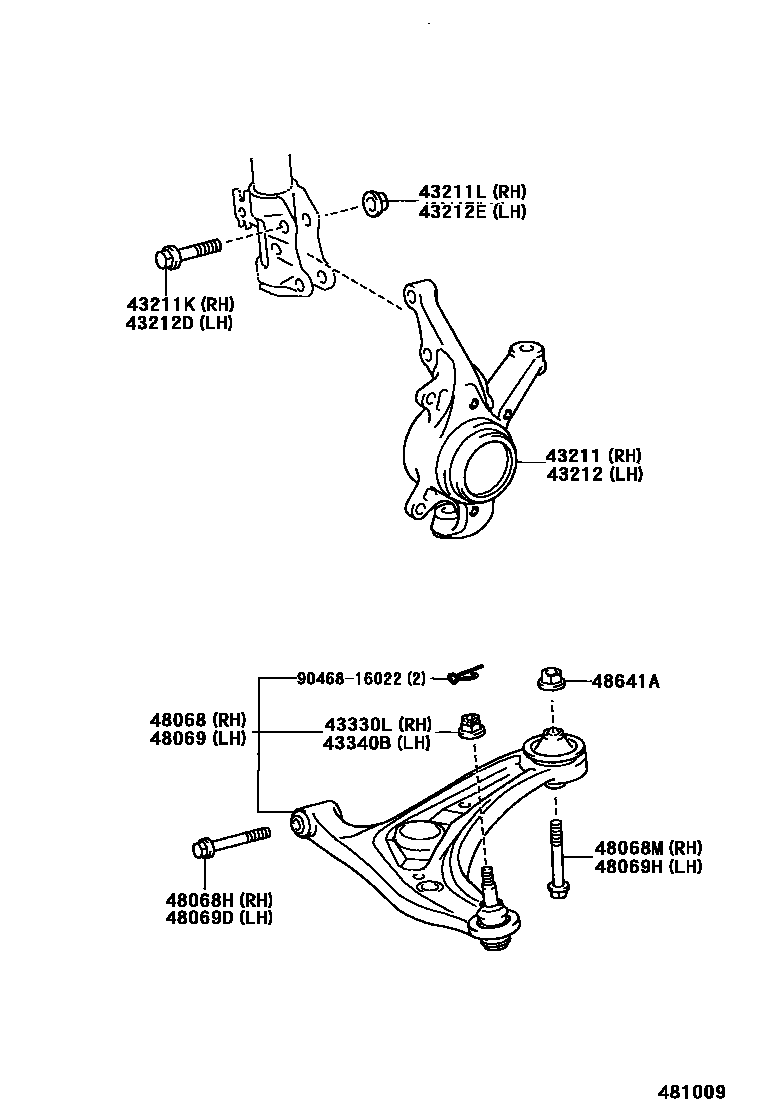

Toyota FUNCARGO — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52020i199908-200509

main43211-52030i199908-200509

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-14140i199908-200509

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-14062i199908-200509

43212KNUCKLE, STEERING, LH

main43212-52020i199908-200509

main43212-52030i199908-200509

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-14140i199908-200509

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-14062i199908-200509

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i199908-200509

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i199908-200509

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59035i199908-200305

main48068-59055i200305-200509

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-12338i199908-200305

main90119-14086i200305-200509

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-12337i199908-200509

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59035i199908-200305

main48069-59055i200305-200509

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-12338i199908-200305

main90119-14086i200305-200509

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-12337i199908-200509

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90178-12009i199908-200509

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section

FRONT AXLE ARM & STEERING KNUCKLE for Toyota FUNCARGO

This section contains 16 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota FUNCARGO. Key components include: KNUCKLE, STEERING, RH, BOLT (FOR STEERING KNUCKLE RH), NUT (FOR STEERING KNUCKLE RH), KNUCKLE, STEERING, LH, BOLT (FOR STEERING KNUCKLE LH).
