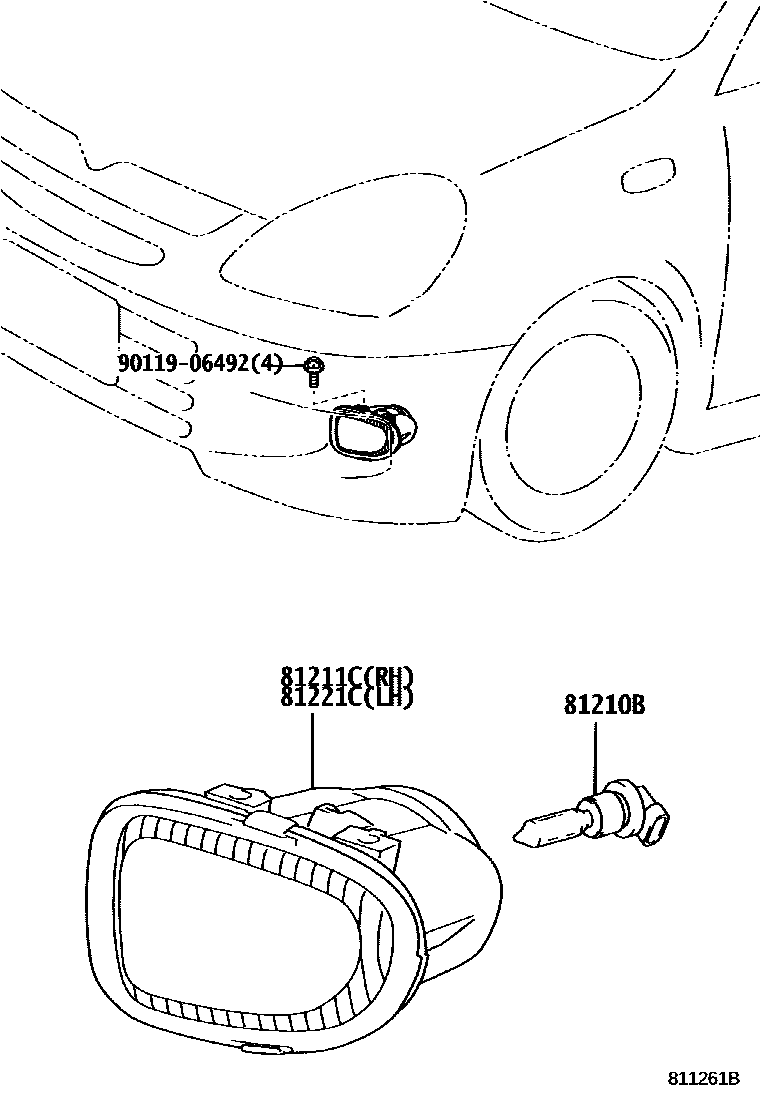

Toyota FUNCARGO — FOG LAMP

0001 1 0002 1

81210BBULB, FOG LAMP

main90080-81040×2iNCP21,25..G199908-200002

main90981-13047×2iNCP2#..G,X200208-200509

81211CLAMP UNIT, FOG LAMP, RH

main81211-52010iNCP21,25..G199908-200002

main81211-52050iNCP2#..G,X200208-200505

sub81211-52052

main81211-52051iNCP2#..G,X200505-200509

sub81211-52052

81221CLAMP UNIT, FOG LAMP, LH

main81221-52010iNCP21,25..G199908-200002

main81221-52050iNCP2#..G,X200208-200505

sub81221-52052

main81221-52051iNCP2#..G,X200505-200509

sub81221-52052

9011906492

main90119-06492

4 parts on this diagram · 2 diagrams in section
