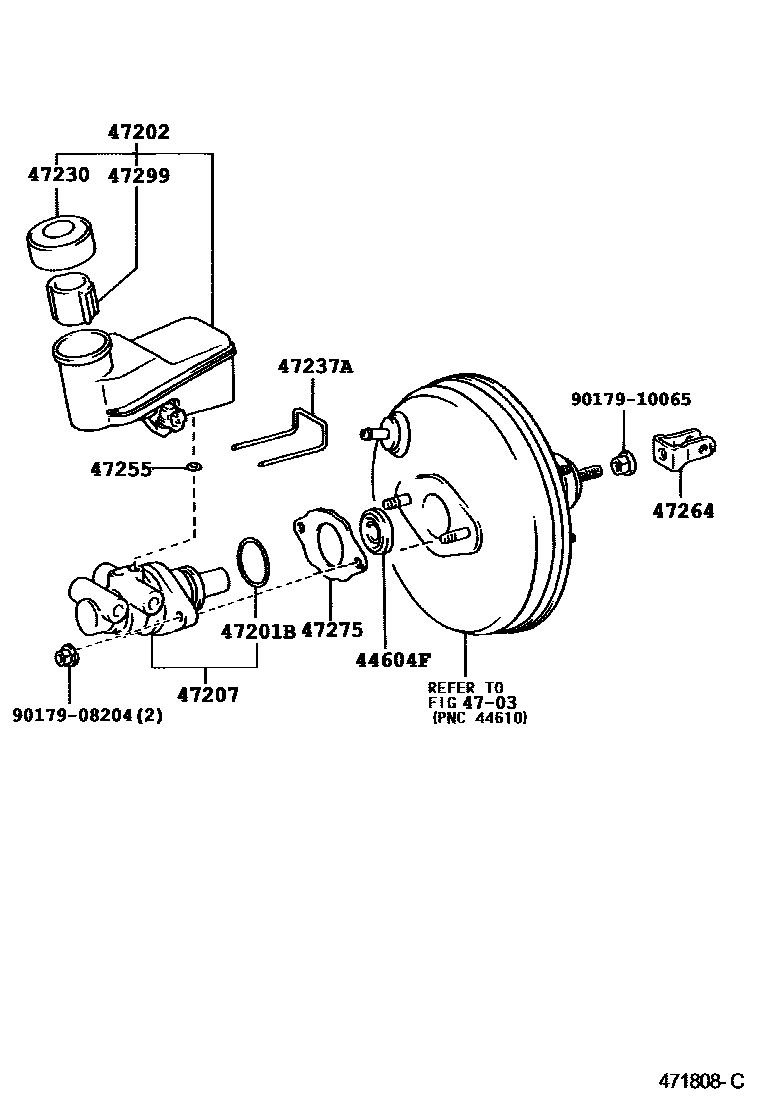

Toyota FUNCARGO — BRAKE MASTER CYLINDER

0001 1 0002 1��(VSC)

44604FSEAL, BRAKE BOOSTER BODY

main44604-52030iNCP21200305-200407

main44604-52070iNCP2#199908-200208

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52200iNCP21200305-200509

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-EH001iNCP2#200308-200509

main90029-20059iNCP21200305-200509

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52060iNCP21200305-200509

main47220-52080iNCP2#200208-200509

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-52031iNCP2#199908-200208

main47207-52032iNCP2#200308-200509

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP21200305-200509

main47230-52030iNCP2#200208-200509

sub47230-33071

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-52010iNCP2#199908-200208

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010×2iNCP21200305-200509

main47255-52010×2iNCP2#199908-200208

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-52010iNCP21200305-200509

main47264-52020iNCP2#200208-200509

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iNCP21200305-200407

main47275-52010iNCP2#200208-200308

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNCP21200305-200509

main47299-52010iNCP2#199908-200208

9017908204

main90179-08204

9017910065

main90179-10065

14 parts on this diagram · 2 diagrams in section
