Toyota FUNCARGO — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05052i199908-200509

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908204

main90179-08204

9415180800

main94151-80800

5 parts on this diagram · 1 diagram in section

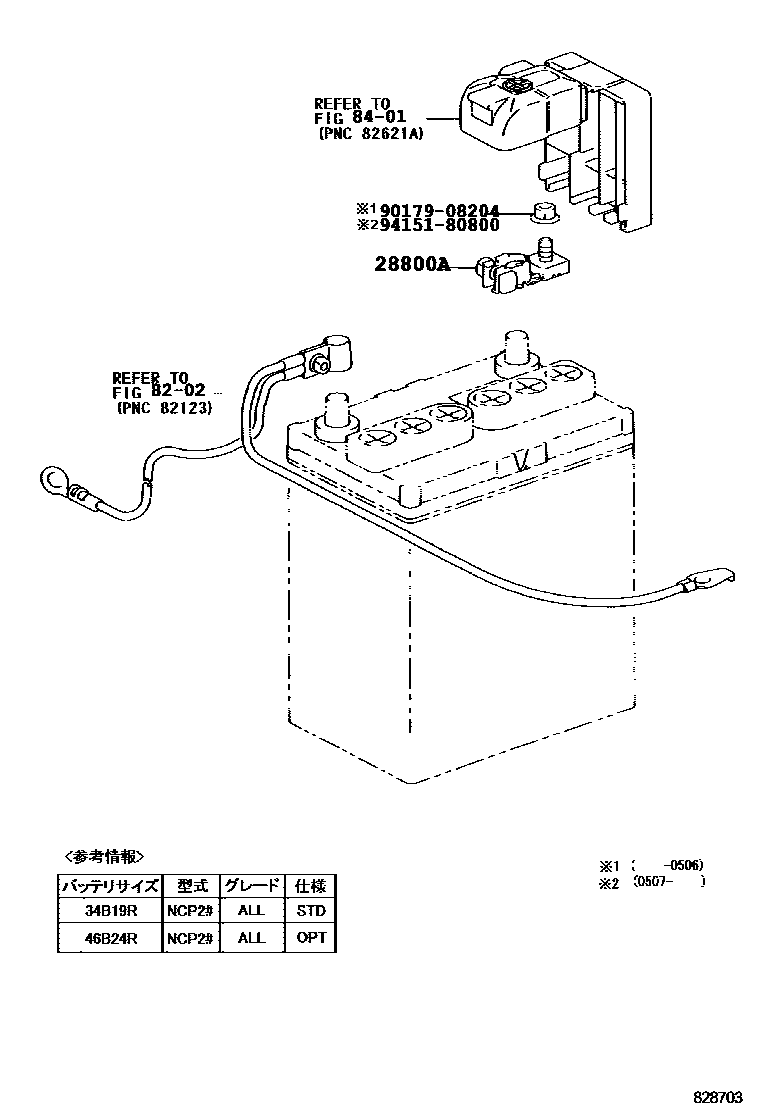

BATTERY & BATTERY CABLE for Toyota FUNCARGO

This section contains 5 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota FUNCARGO. Key components include: TERMINAL, BATTERY POSITIVE, WIRING & CLAMP, SWITCH & RELAY & COMPUTER.
