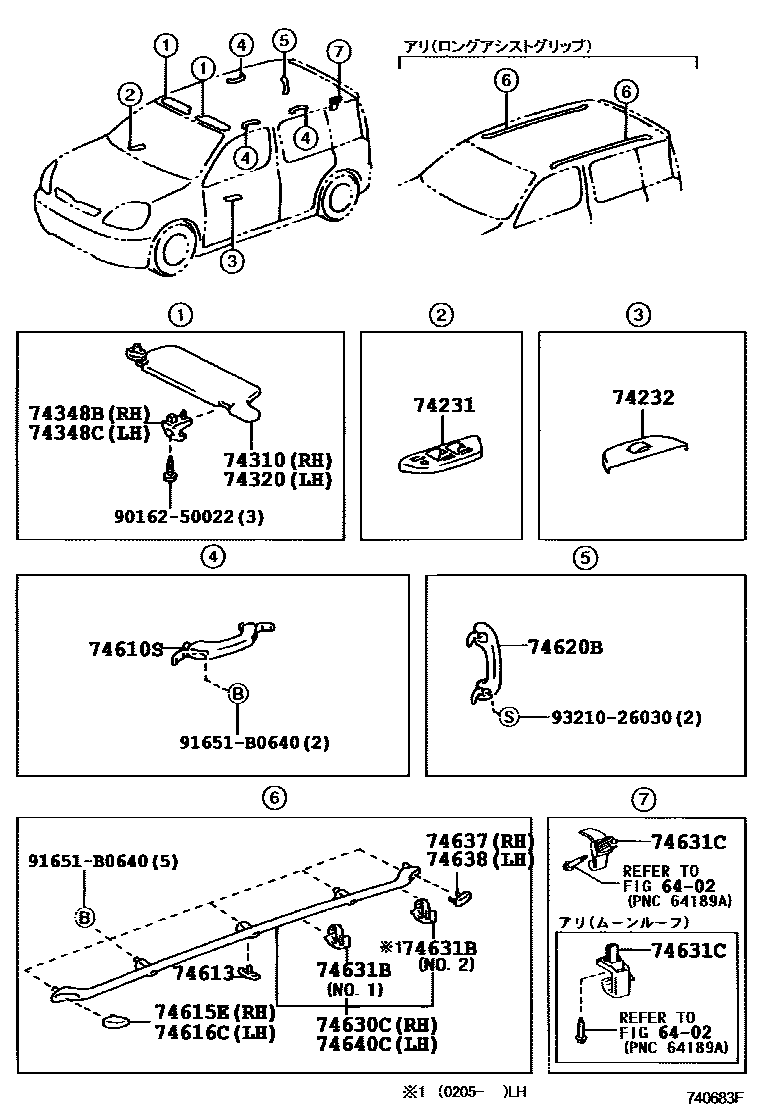

Toyota FUNCARGO — ARMREST & VISOR

6402

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52050-B1iNCP2#199908-200002

MD.GRAY,TRIM9#

main74231-52050-G0iNCP2#199908-200002

MIST GREEN,TRIM7#

main74231-52120-B0iNCP2#200002-200208

MD.GRAY,TRIM9#

main74231-52120-B1iNCP20,25..J,X200208-200509

DK.GRAY,TRIM1#

main74231-52120-G0iNCP2#200002-200208

MIST GREEN,TRIM7#

main74231-52210iNCP21,25..G200208-200509

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52060-B1iNCP2#199908-200002

MD.GRAY,TRIM9#

main74232-52060-G0iNCP2#199908-200002

MIST GREEN,TRIM7#

main74232-52110-B0iNCP2#200002-200208

MD.GRAY,TRIM9#

main74232-52110-B1iNCP20,25..J,X200208-200509

DK.GRAY,TRIM1#

main74232-52110-G0iNCP2#200002-200208

MIST GREEN,TRIM7#

main74232-52170iNCP21,25..G200208-200509

74310VISOR ASSY, RH

main74310-52080-B0iNCP2#199908-200208

LT. GRAY,TRIM7#,9#

main74310-52150-B0iNCP2#199908-200208

main74310-52410-B0iNCP2#200208-200509

LT. GRAY,TRIM1#

main74310-52420-B0iNCP20,25..X200208-200403

74320VISOR ASSY, LH

main74320-52100-B0iNCP20199908-200008

LT. GRAY,TRIM7#,9#

main74320-52110-B0iNCP20,25..J,X199908-200208

main74320-52120-B0iNCP21199908-200008

main74320-52130-B0iNCP21,25..G200208-200509

main74320-52240-B0iNCP20199908-200008

main74320-52250-B0iNCP20,25..J,X199908-200208

main74320-52260-B0iNCP21199908-200008

main74320-52270-B0iNCP21,25..G199908-200208

74348BHOLDER, VISOR, RH

main74348-12030-B5iNCP2#200208-200509

LT.GRAY,TRIM1#

74348CHOLDER, VISOR, LH

main74348-12030-B5iNCP2#200208-200509

LT.GRAY,TRIM1#

74610SGRIP ASSY, ASSIST

main74611-52010-B0×3iNCP2#199908-200208

LT.GRAY,TRIM7#,9#

74613PLUG, ASSIST GRIP

main74617-52010-B0×6iNCP2#199908-200208

LT.GRAY,TRIM7#,9#

74615EPLUG, FRONT ASSIST GRIP, NO.1 RH

main74615-52010-B0iNCP2#199908-200208

LT.GRAY,TRIM7#,9#

74616CPLUG, FRONT ASSIST GRIP, NO.1 LH

main74616-52010-B0iNCP2#199908-200208

LT.GRAY,TRIM7#,9#

74620BGRIP ASSY, ASSIST, REAR

main74611-20030-B8iNCP2#199908-200208

LT.GRAY,TRIM7#,9#

sub74610-12090

74630CGRIP ASSY, DOOR ASSIST, RH

main74641-52010-B0iNCP2#199908-200208

LT.GRAY,TRIM7#,9#

74631BHOOK, COAT

main74631-52020-B0×2iNCP2#200205-200208

main74631-52030-B0iNCP2#200205-200208

74631CHOOK, COAT

main74631-52040-B0iNCP2#200205-200208

LT.GRAY,TRIM1#

main74631-52050-B0iNCP20,25..X200208-200403

74637PLUG, ASSIST GRIP, NO.2 RH

main74637-52010-B0iNCP2#199908-200208

LT.GRAY,TRIM7#,9#

74638PLUG, ASSIST GRIP, NO.2 LH

main74638-52010-B0iNCP2#199908-200208

LT.GRAY,TRIM7#,9#

74640CGRIP ASSY, DOOR ASSIST, LH

main74642-52010-B0iNCP2#199908-200205

LT.GRAY,TRIM7#,9#

main74642-52011-B0iNCP2#200205-200208

LT.GRAY,TRIM7#,9#

9016250022

main90162-50022

91651B0640

main91651-B0640

9321026030

main93210-26030

21 parts on this diagram · 1 diagram in section
