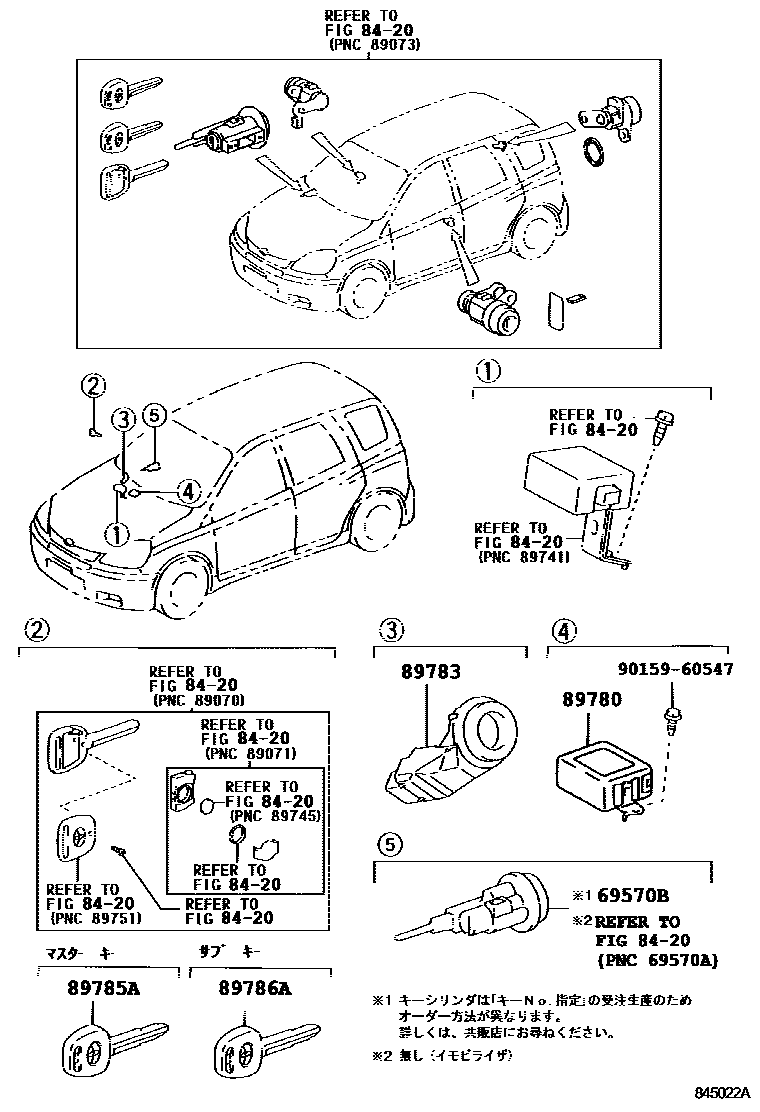

Toyota FUNCARGO — ANTI-THEFT DEVICE

69570BCYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12190i200208-200509

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-52010i200208-200509

89783AMPLIFIER, TRANSPONDER KEY

main89783-52030i200208-200509

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-60160i200208-200509

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-60170i200208-200509

9015960547

main90159-60547

7 parts on this diagram · 1 diagram in section

ANTI-THEFT DEVICE for Toyota FUNCARGO

This section contains 7 genuine Toyota parts for the ANTI-THEFT DEVICE system of the Toyota FUNCARGO. Key components include: CYLINDER ASSY, IGNITION SWITCH LOCK, WIRELESS DOOR LOCK, COMPUTER ASSY, TRANSPONDER KEY, AMPLIFIER, TRANSPONDER KEY, TRANSMITTER, TRANSPONDER CUT KEY MASTER.
