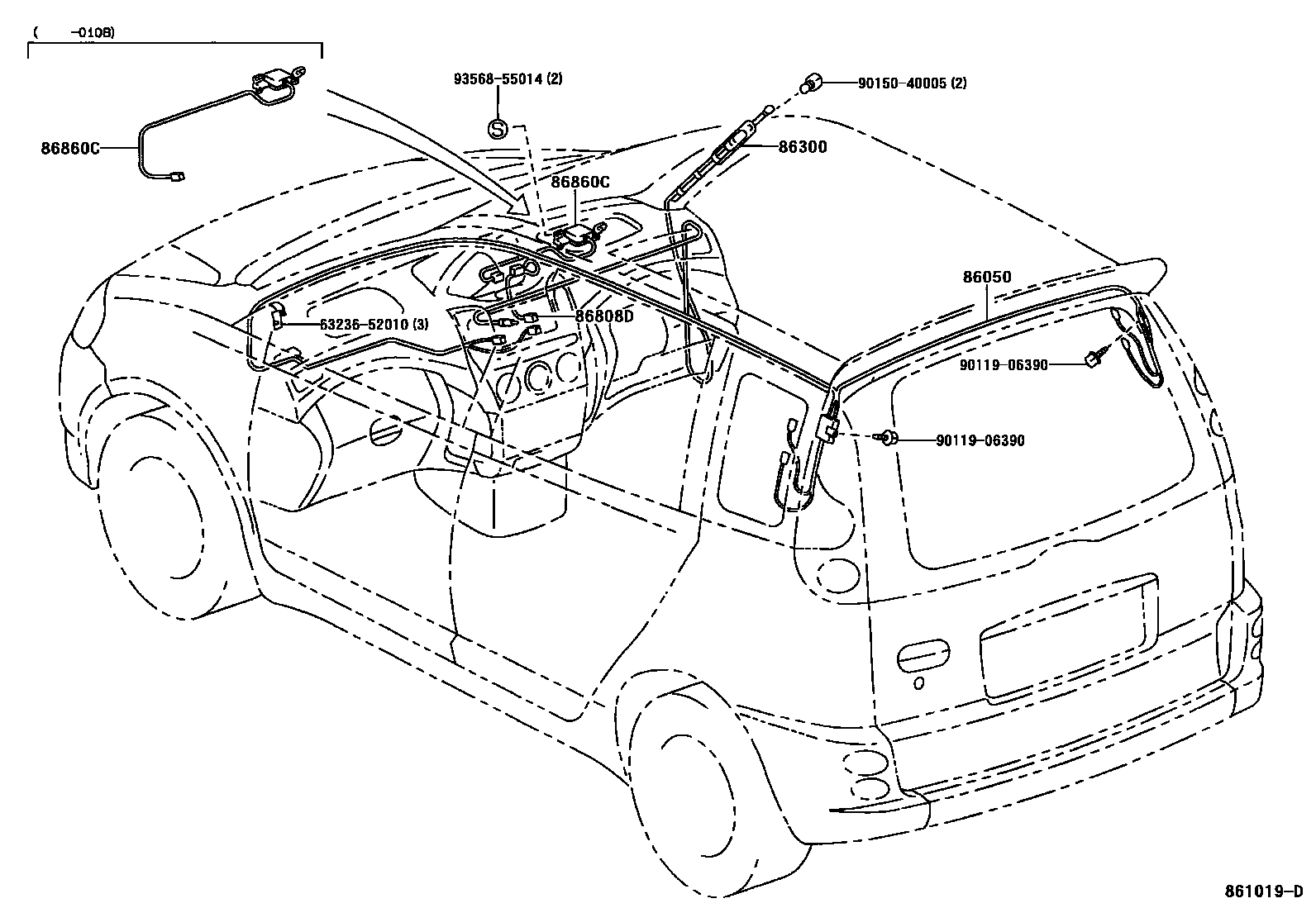

Toyota FUNCARGO — ANTENNA

0001 1 0002 1

86050ANTENNA ASSY, TELEVISION

main86050-52010iNCP2#199908-200108

main86050-52011iNCP2#200108-200206

main86050-52012iNCP2#200206-200208

main86050-52020iNCP2#199908-200108

main86050-52021iNCP2#200108-200206

main86050-52022iNCP2#200206-200208

main86050-52030iNCP2#199908-200108

main86050-52031iNCP2#200108-200208

main86050-52040iNCP2#199908-200108

main86050-52041iNCP2#200108-200208

86300ANTENNA ASSY, W/HOLDER

main86300-52010iNCP2#199908-200208

86808DCORD SUB-ASSY, NAVIGATION ANTENNA

main86808-52030iNCP2#200108-200208

86860CANTENNA ASSY, NAVIGATION

main86860-52010iNCP2#199908-200108

sub86860-52011

main86860-52060iNCP2#200108-200208

6323652010CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

main63236-52010

9011906390

main90119-06390

9015040005

main90150-40005

9356855014

main93568-55014

8 parts on this diagram · 2 diagrams in section
