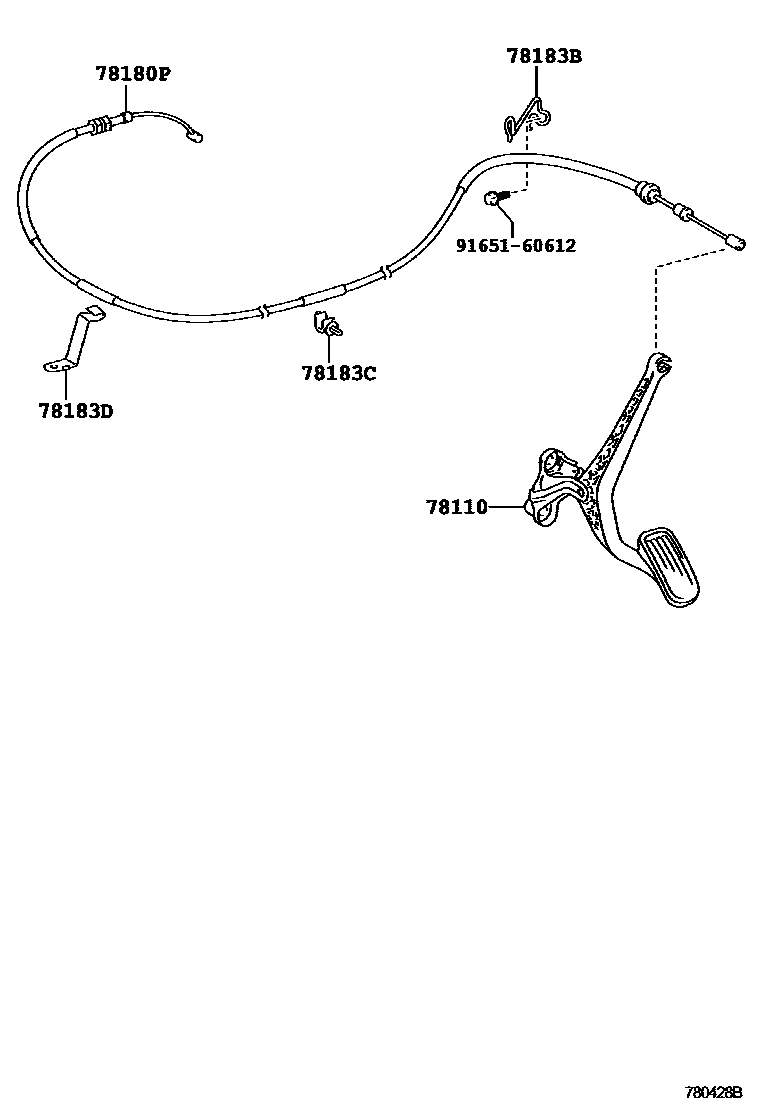

Toyota FUNCARGO — ACCELERATOR LINK

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52050iNCP2#199908-200208

main78120-52110iNCP2#200403-200509

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52030iNCP2#199908-200208

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-52080iNCP2#199908-200208

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52070iNCP2#199908-200208

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-52030iNCP2#199908-200109

main78183-52120iNCP2#200109-200208

9165160612

main91651-60612

6 parts on this diagram · 1 diagram in section
