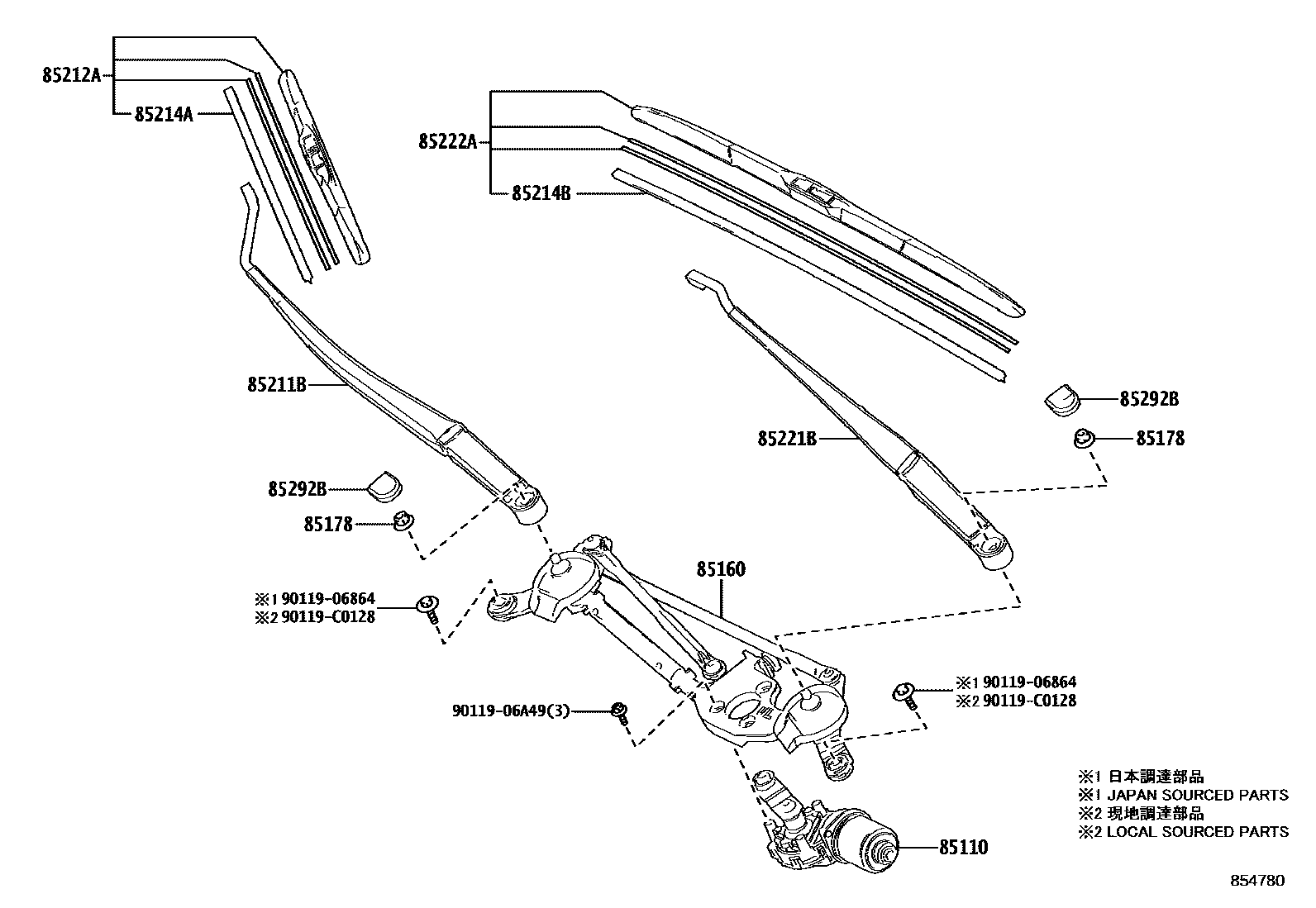

Toyota FRONT LANDER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0A060iMXGA10202201-202304

85160LINK ASSY, WINDSHIELD WIPER

main85150-0A070iMXGA10202201-202304

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iMXGA10,MXGH10202304

(J)

main90182-C0012×2iMXGA10202201-202304

(L)

85211BARM, FRONT WIPER, RH

main85211-0A080iMXGA10202201-202304

85212ABLADE, FR WIPER, RH

main85212-0A080iMXGA10,MXGH10202304

85214ARUBBER, WIPER, RH

main85214-0A170iMXGA10202201-202304

85214BRUBBER, WIPER, LH

main85214-06190iMXGA10202201-202304

85221BARM, FRONT WIPER, LH

main85221-0A080iMXGA10202201-202304

85222ABLADE, FR WIPER, LH

main85222-0A080iMXGA10202201-202304

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D110×2iMXGA10202201-202304

9011906864

main90119-06864

9011906A49

main90119-06A49

90119C0128

main90119-C0128

13 parts on this diagram · 1 diagram in section
