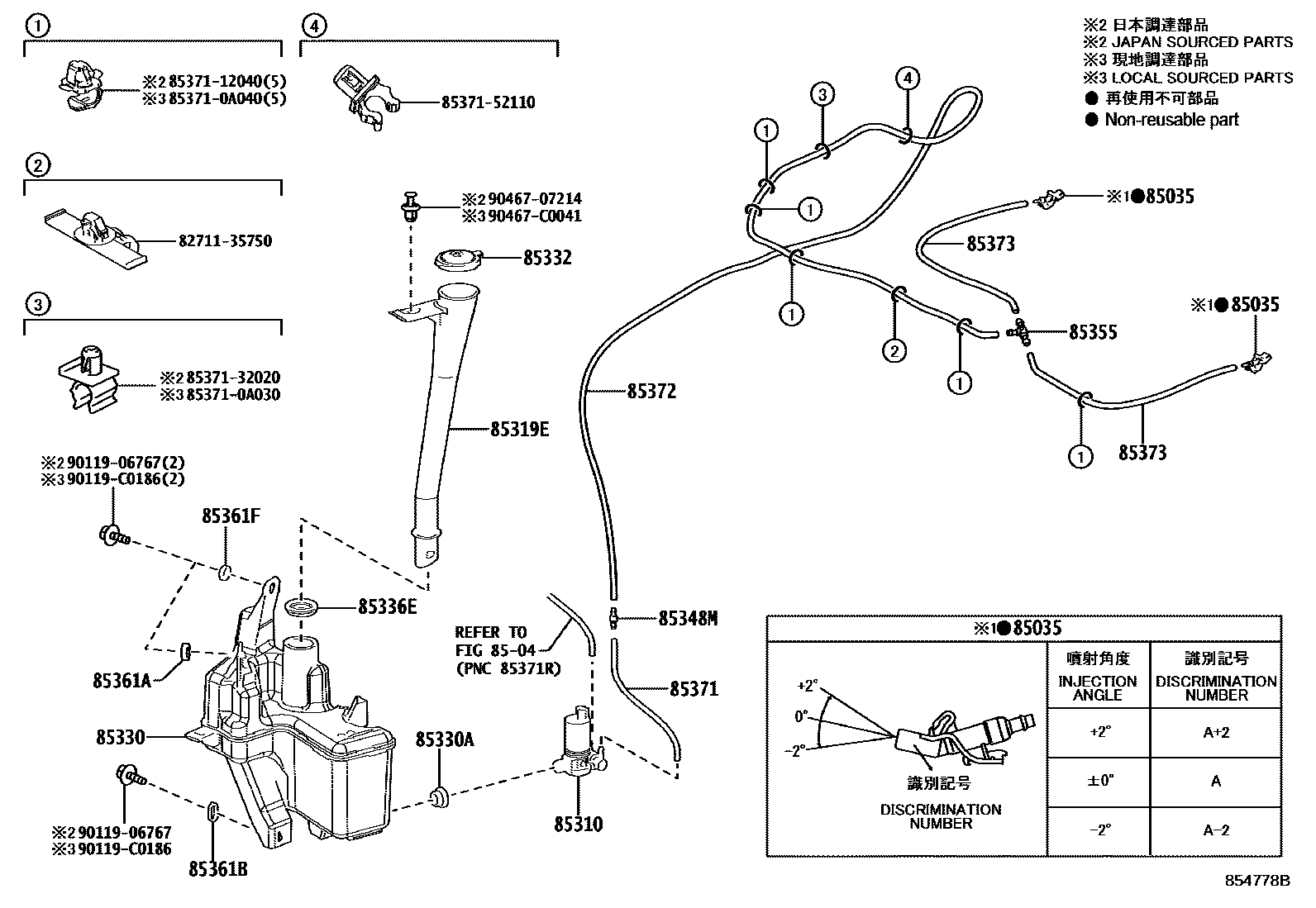

Toyota FRONT LANDER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0E090i202201-202304

ANGLE 0

main85381-0E100i202201-202304

ANGLE +2

main85381-0E110i202201-202304

ANGLE -2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0E050i202201-202304

85319EINLET WASHER

main85319-0A100i202201-202304

85330JAR ASSY, WINDSHIELD WASHER

main85315-0A100i202201-202304

85330ABUSH, WINDSHIELD WASHER JAR

main90069-52046i202201-202304

85332CAP, WINDSHIELD WASHER JAR

main85316-0A100i202201-202304

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90069-52047i202201-202304

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-02530i202201-202304

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02750i202201-202304

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-02530i202201-202304

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85338-02530i202201-202304

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85339-02530i202201-202304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46173i202201-202304

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46174i202201-202304

L=2320

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46177i202201-202304

L=445

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

853710A030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0A030

853710A040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0A040

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

8537152110HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52110

9011906767

main90119-06767

90119C0186

main90119-C0186

9046707214

main90467-07214

90467C0041

main90467-C0041

26 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota FRONT LANDER

This section contains 26 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota FRONT LANDER. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, INLET WASHER, JAR ASSY, WINDSHIELD WASHER.
