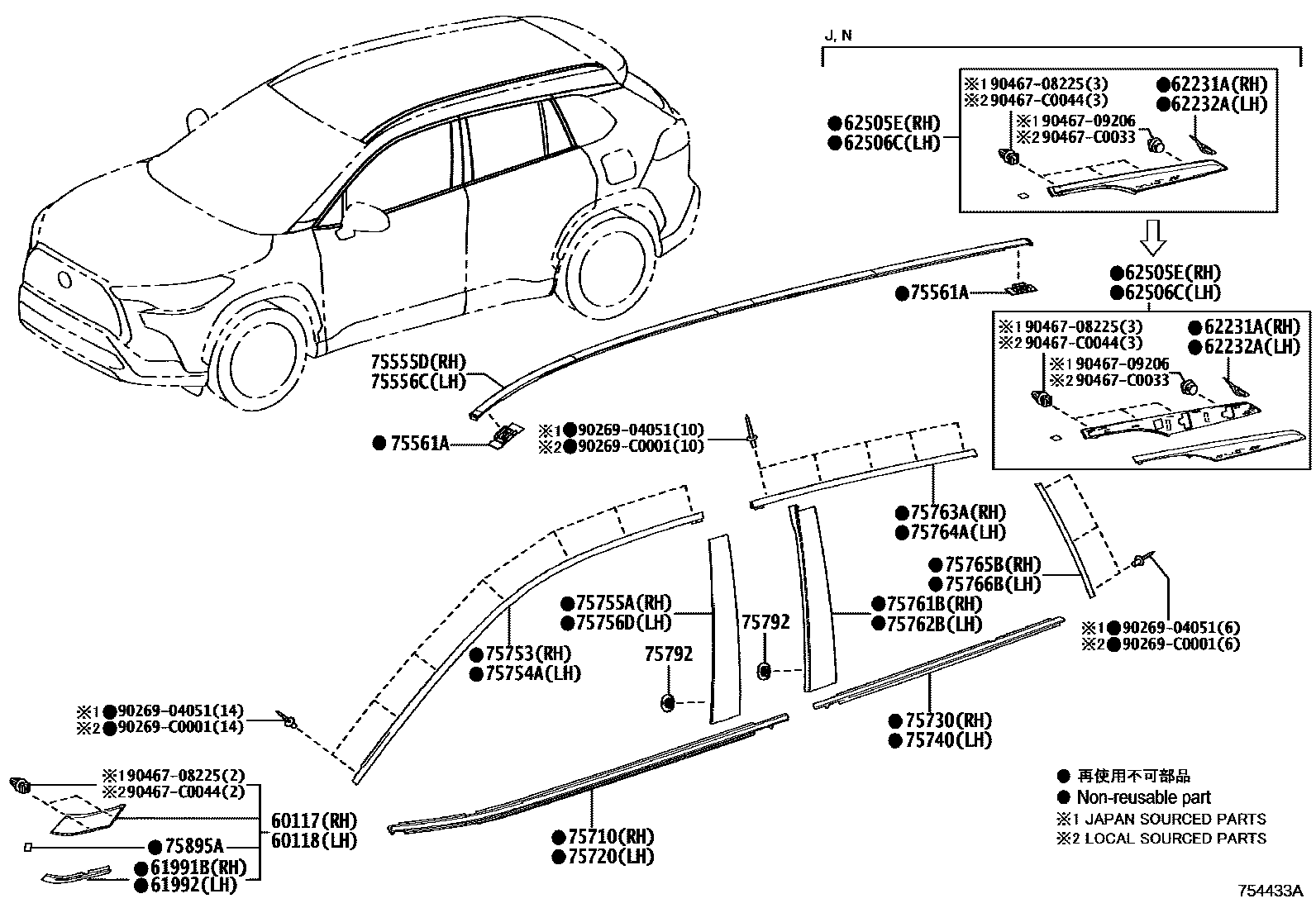

Toyota FRONT LANDER — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
61991BPROTECTOR, FRONT PILLAR COVER, RH
61992PROTECTOR, FRONT PILLAR COVER, LH
62231APAD, QUARTER PILLAR, RH
62232APAD, QUARTER PILLAR, LH
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.
PLATED
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.
PLATED
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
75792CLIP, DOOR WINDOW FRAME MOULDING
75895ATAPE, MOULDING, NO.1
9026904051
main90269-04051
90269C0001
main90269-C0001
9046708225
main90467-08225
9046709206
main90467-09206
90467C0033
main90467-C0033
90467C0044
main90467-C0044
33 parts on this diagram · 3 diagrams in section
SIDE MOULDING for Toyota FRONT LANDER
This section contains 86 genuine Toyota parts for the SIDE MOULDING system of the Toyota FRONT LANDER. Key components include: PAD, FRONT WHEEL OPENING EXTENSION, NO.3, PAD, FRONT WHEEL OPENING EXTENSION, NO.4, PAD, FRONT WHEEL OPENING EXTENSION, NO.5, COVER SUB-ASSY, FRONT PILLAR, UPR RH, COVER SUB-ASSY, FRONT PILLAR, UPR LH.
