Toyota FRONT LANDER — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-0A020i202201-202304

86464ALATCH, FORWARD RECOGNITION

main86464-0E010i202201-202304

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0A050i202201-202304

main86466-0A090i202304

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-0A060i202201-202304

main86467-0A030i202304

8646CCAMERA, FORWARD RECOGNITION

main8646C-0A030i202201-202304

main8646C-0A050i202304-202406

*614

main8646C-0A051i202407

*614; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,*614

9046705171

main90467-05171

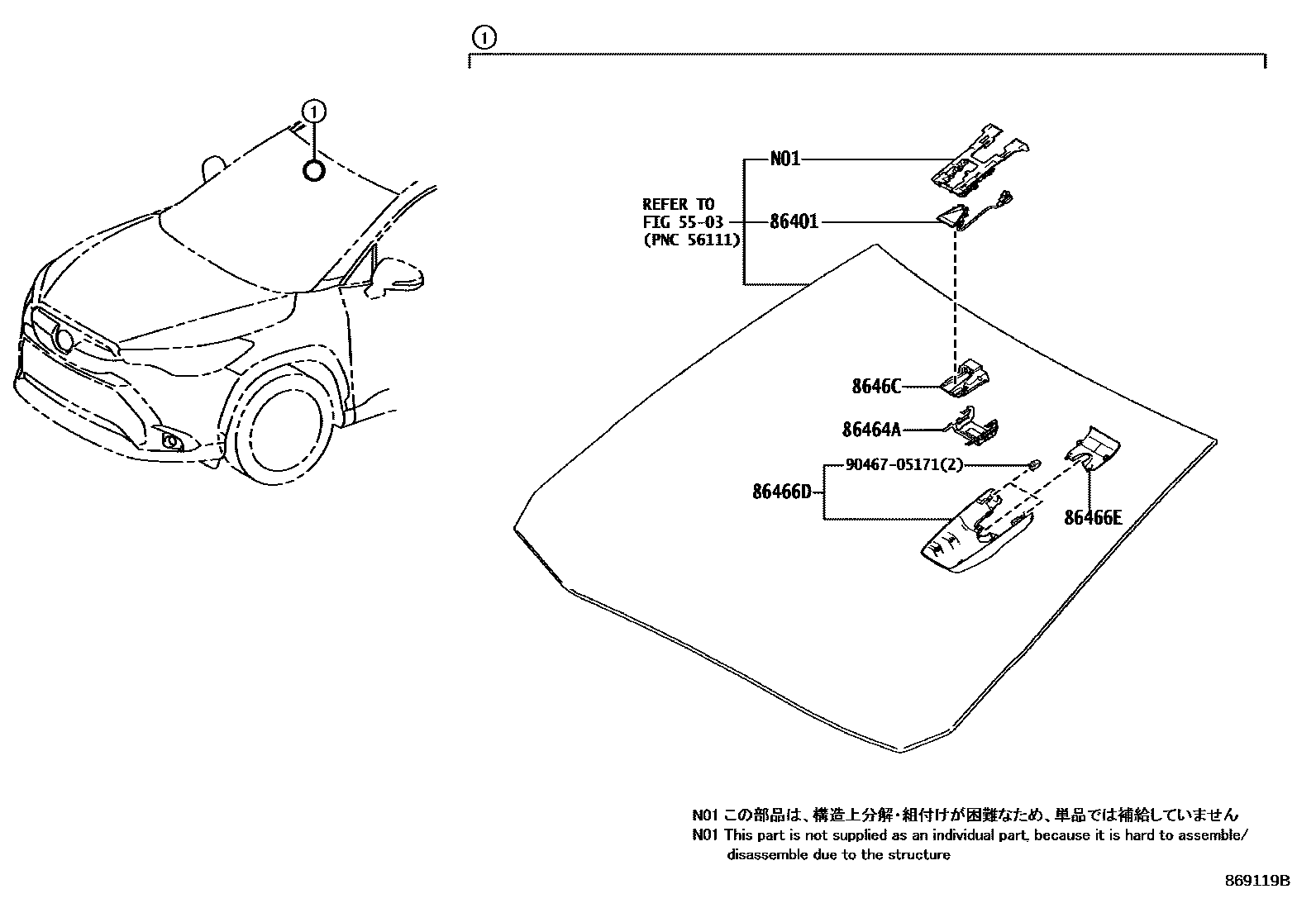

7 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota FRONT LANDER

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota FRONT LANDER. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
