Toyota FRONT LANDER — METER

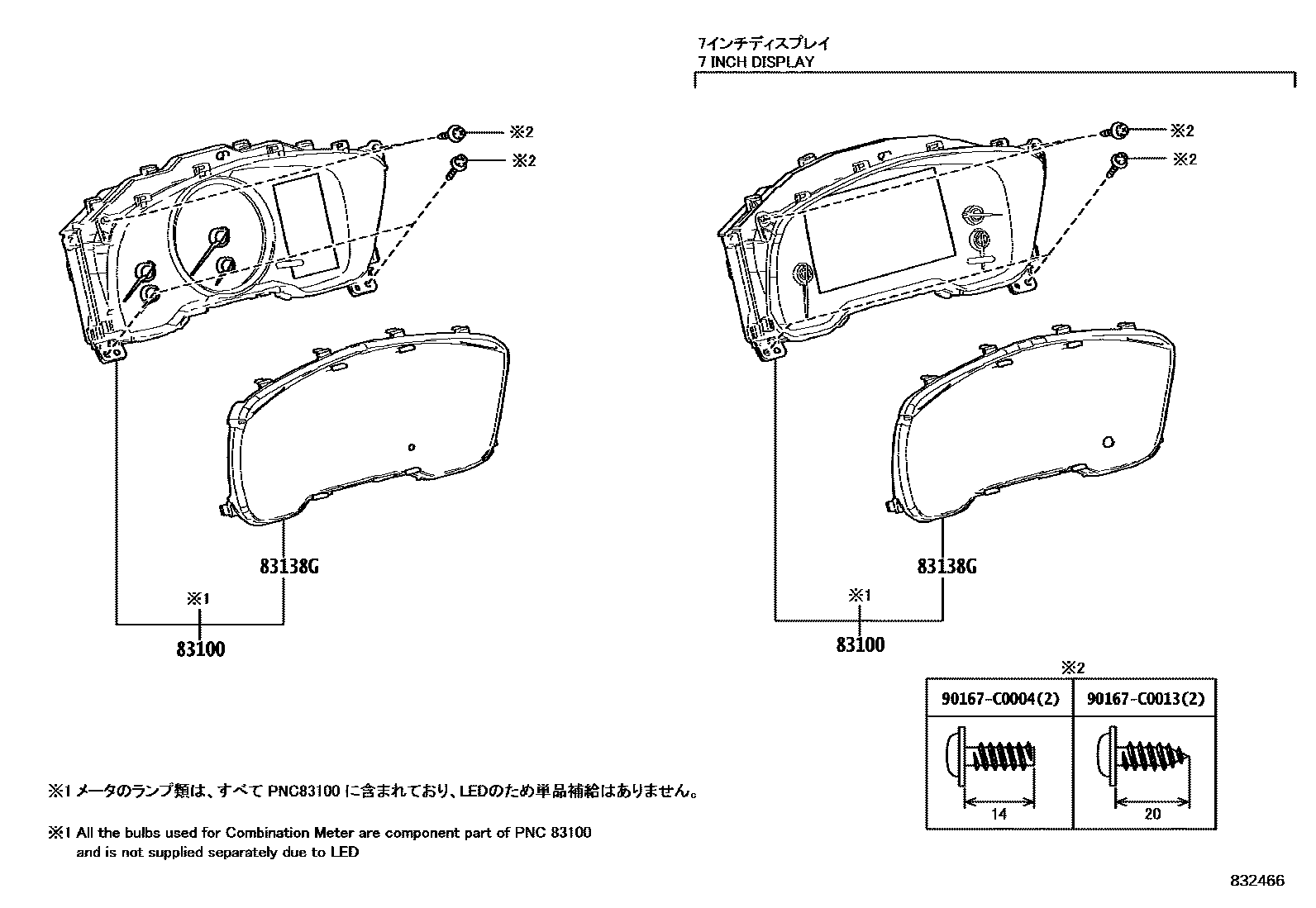

Parts diagram
83100METER ASSY, COMBINATION
main83800-0AA30i202201-202304
DENSO
main83800-0AA40i202201-202304
DENSO
main83800-0AA50i202201-202304
DENSO
main83800-0AE80i202304-202307
DENSO,*614
main83800-0AE81i202308-202403
DENSO,*614
main83800-0AE82i202404-202408
DENSO,*614
main83800-0AE83i202409
DENSO,*614
main83800-0AE90i202304-202307
DENSO,*614
main83800-0AE91i202308-202403
DENSO,*614
main83800-0AE92i202404-202408
DENSO,*614
main83800-0AE93i202409
DENSO,*614
main83800-0AF00i202307-202308
DENSO,*614
main83800-0AF01i202308-202403
DENSO,*614
main83800-0AF02i202404-202408
DENSO,*614
main83800-0AF03i202409
DENSO,*614
main83800-0AF10i202307-202308
DENSO,*614
main83800-0AF11i202308-202403
DENSO,*614
main83800-0AF12i202404-202408
DENSO,*614
main83800-0AF13i202409
DENSO,*614
main83800-0AF20i202307-202308
DENSO,*614
main83800-0AF21i202308-202403
DENSO,*614
main83800-0AF22i202404-202408
DENSO,*614
main83800-0AF23i202409
DENSO,*614
83138GGLASS, COMBINATION METER
main83852-FE340i202201-202304
main83852-FE380i202201-202304
main83A52-02D70i202307
90167C0004
main90167-C0004
90167C0013
main90167-C0013

4 parts on this diagram · 2 diagrams in section
