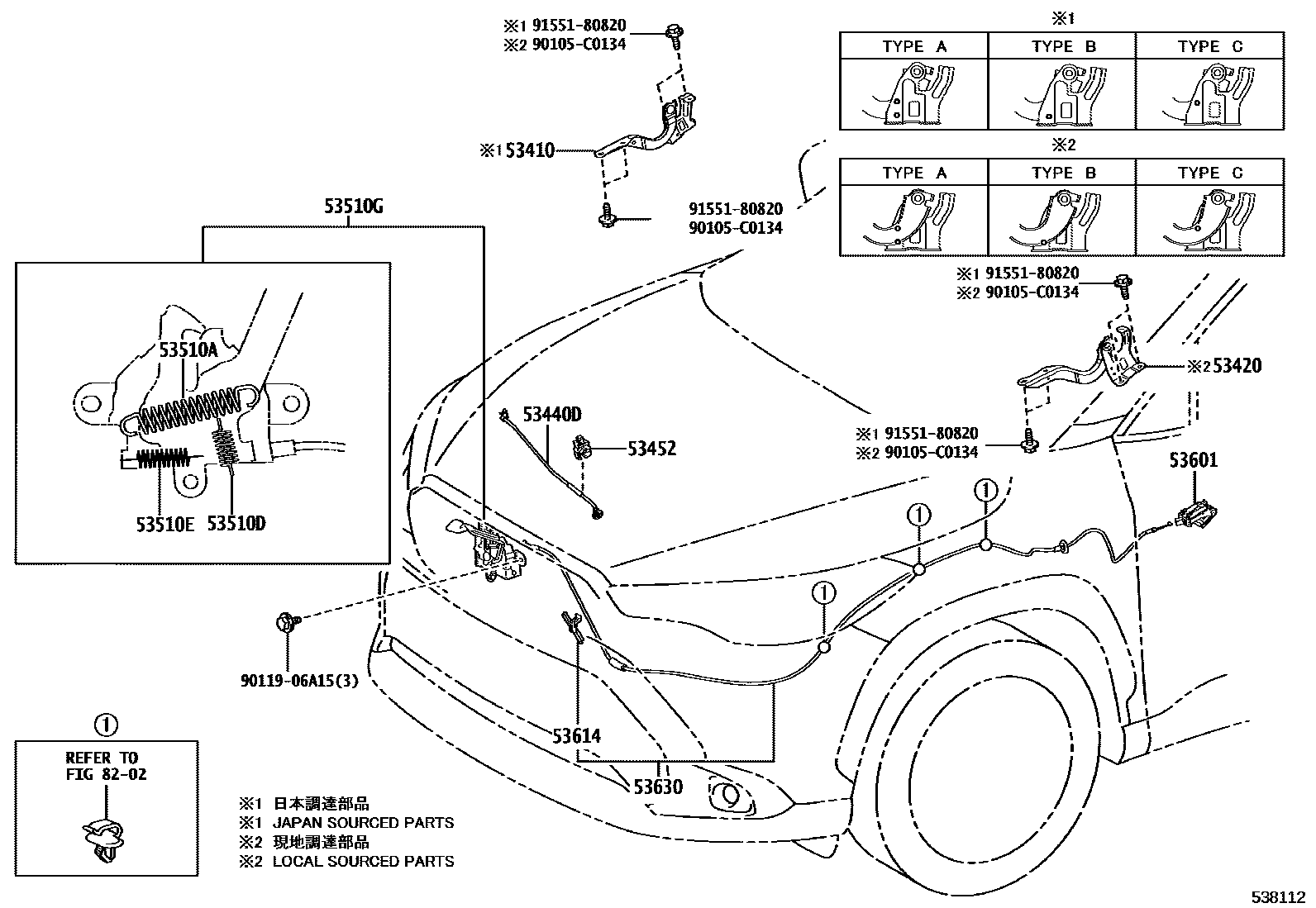

Toyota FRONT LANDER — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0A180i202201-202304

TYPE A:REFER ILLUST.

main53410-0A190i202304

TYPE B:REFER ILLUST.

main53410-0A200i202304

TYPE C:REFER ILLUST.

53420HINGE ASSY, HOOD, LH

main53420-0A180i202201-202304

TYPE A:REFER ILLUST.

main53420-0A190i202201-202304

TYPE B:REFER ILLUST.

main53420-0A200i202201-202304

TYPE C:REFER ILLUST.

53440DSUPPORT ASSY, HOOD

main53440-0A060i202304-202406

main53440-0A061i202407

53452HOLDER, HOOD STAY

main53452-0A010i202304

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i202304

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063i202201-202304

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067i202304

WD=1.8,CW=13

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-0A090i202201-202304

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D061-C1i202304

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-16020i202201-202304

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0A090i202201-202304

8202WIRING & CLAMP

→ Go to FIG 82-02

90105C0134

main90105-C0134

9011906A15

main90119-06A15

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota FRONT LANDER

This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota FRONT LANDER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, HOLDER, HOOD STAY, SPRING, TENSION(FOR HOOD LOCK).
