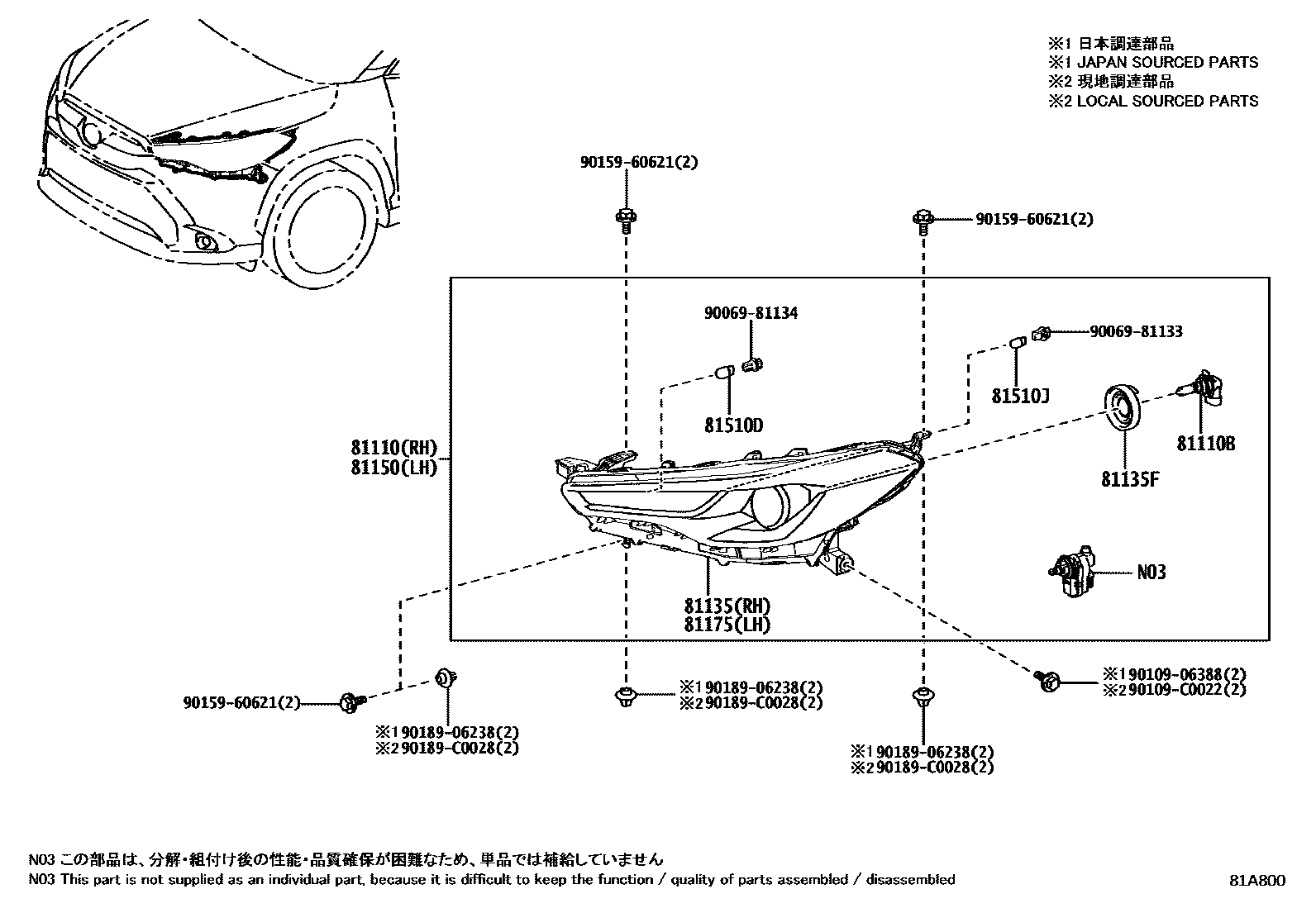

Toyota FRONT LANDER — HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-0A200iMXGA10..J,N202201-202304

main81110-0A220iMXGA10..A,E,G202201-202304

81110BBULB(FOR HEADLAMP, NO.1)

main90981-CD012×2iMXGA10..J,N202201-202304

12V 55W

81135UNIT ASSY, HEADLAMP, RH

main81130-0A200iMXGA10..J,N202201-202304

main81130-0A220iMXGA10,MXGH10..A,E,G202304

81135FCOVER, HEADLAMP BACK

main81135-0A200×2iMXGA10,MXGH10..J,N202304

81150HEADLAMP ASSY, LH

main81150-0A200iMXGA10..J,N202201-202304

main81150-0A220iMXGA10..A,E,G202201-202304

81175UNIT ASSY, HEADLAMP, LH

main81170-0A200iMXGA10,MXGH10..J,N202304

main81170-0A220iMXGA10,MXGH10..A,E,G202304

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-CB006×2iMXGA10..J,N202201-202304

12V 21W

81510JBULB(FOR DAYTIME RUNNING LAMP)

main90981-CB005×2iMXGA10..J,N202201-202304

12V 21/5W

9006981133

main90069-81133

9006981134

main90069-81134

9010906388

main90109-06388

90109C0022

main90109-C0022

9015960621

main90159-60621

9018906238

main90189-06238

90189C0028

main90189-C0028

15 parts on this diagram · 2 diagrams in section
