22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010i202304

*132

main22030-F2020i202304

*668,*669

22271GASKET, THROTTLE BODY

main22271-24010i202201-202304

*132

main22271-24020i202307

(J)

main22271-F2020i202304

*668,*669

main22271-F2070i202307

(L)

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i202201-202304

*132

main23101-F2020i202201-202304

*668,*669

23191FLANGE, FUEL PUMP

main23191-25050i202304

*132

main23214-F2030i202304

*668,*669

23224DGASKET, FUEL PUMP SPACER

main23224-25011i202304

*668,*669

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i202201-202304

(J),*668,*669,(J),*132

main90301-C0072×4i202201-202304

(L),*132,(L),*668,*669

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4i202304

MARK 1,*132:REFER R/M

main23209-24010-02×4i202304

MARK 2,*132:REFER R/M

main23209-24010-03×4i202304

MARK 3,(J),*668,*669,*RRM

main23209-24010-04×4i202304

MARK 4,*132:REFER R/M

main23209-24010-05×4i202304

MARK 5,*132:REFER R/M

main23209-24010-06×4i202304

MARK 6,*132:REFER R/M

main23209-24010-07×4i202304

MARK 7,(J),*668,*669,*RRM

main23209-24010-08×4i202201-202304

MARK 8,(J),*668,*669,*RRM,*132:REFER R/M

main23209-24010-09×4i202304

MARK 9,*132:REFER R/M

main23209-F2030-01×4i202201-202304

MARK 1,(L),*668,*669,*RRM

main23209-F2030-02×4i202304

MARK 2,(L),*668,*669,*RRM

main23209-F2030-03×4i202201-202304

MARK 3,(L),*668,*669,*RRM

main23209-F2030-04×4i202304

MARK 4,(L),*668,*669,*RRM

main23209-F2030-05×4i202201-202304

MARK 5,(L),*668,*669,*RRM

main23209-F2030-06×4i202201-202304

MARK 6,(L),*668,*669,*RRM

main23209-F2030-07×4i202304

MARK 7,(L),*668,*669,*RRM

main23209-F2030-08×4i202201-202304

MARK 8,(L),*668,*669,*RRM

main23209-F2030-09×4i202201-202304

MARK 9,(L),*668,*669,*RRM

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29115×4i202304

*132

main23209-29165×4i202201-202304

*132,*668,*669

main23209-29185×4i202307

(J)

main23209-F9100×4i202307

(L)

23255ASEAL, FUEL INJECTOR

main23255-25010×4i202201-202304

*132,*668,*669

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i202304

*668,*669

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31030×4i202201-202304

PNC23250E=23209F2030

main23258-47010×4i202304

*132

23291INSULATOR, INJECTOR VIBRATION

main23291-0V010×4i202304

(L),*668,*669

main23291-28020×4i202304

(J),*668,*669,*132

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i202201-202304

*132,*668,*669

23470LIFTER ASSY, FUEL PUMP

main23470-0Y010i202304

*668,*669

main23470-25010i202304

*132

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202304

*132

main23477-F2060i202304

*668,*669

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4i202304

*668,*669

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i202201-202304

*132

main23801-F2020i202304

*668,*669

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020i202304

*132

main23814-F2030i202201-202304

*668,*669

23814BPIPE, FUEL DELIVERY

main23814-24010i202201-202210

*132,*668,*669

main23814-24011i202304

*668,*669

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T120i202307

main23841-F3050i202201-202304

23841KCLAMP, FUEL PIPE

main23841-25040i202201-202304

(J)

main23841-F2030i202201-202304

(L)

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-F2010i202201-202304

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202201-202304

*132

main23851-F2020i202201-202304

*668,*669

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202201-202304

*132

main23851-F2030i202201-202304

*668,*669

23891SPACER, FUEL DELIVERY

main23891-24010×2i202304

*668,*669

23901TUBE SUB-ASSY, FUEL

main23901-F2220i202304

main23901-F2250i202307

23910ATUBE SUB-ASSY, FUEL

main23901-24081i202307

(J)

main23901-24100i202201-202304

main23901-F2110i202307

(L)

7701

8404

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

90105C0414

main90105-C0414

90105C0416

main90105-C0416

90105C0421

main90105-C0421

90105C0517

main90105-C0517

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

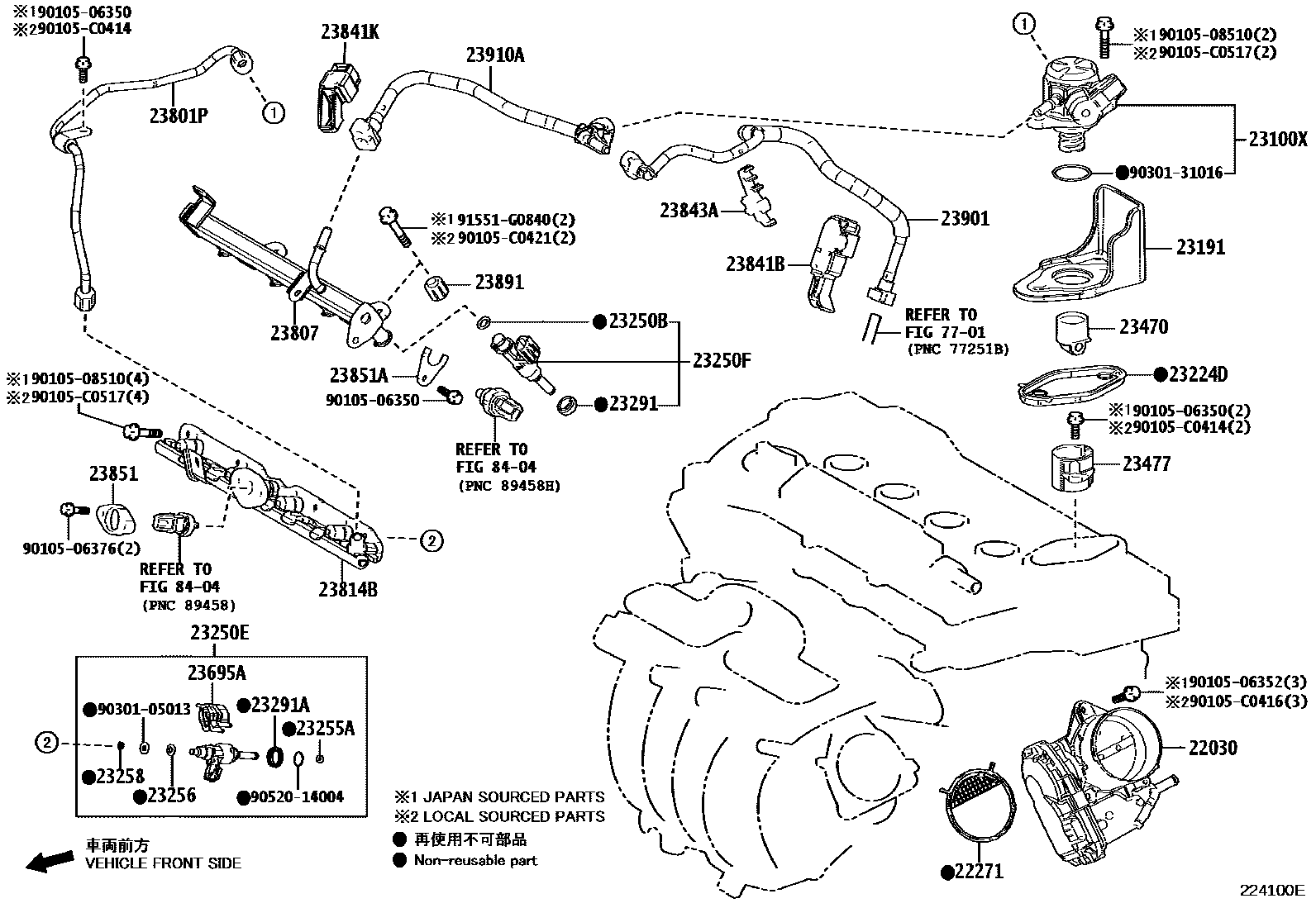

Toyota FRONT LANDER — FUEL INJECTION SYSTEM
