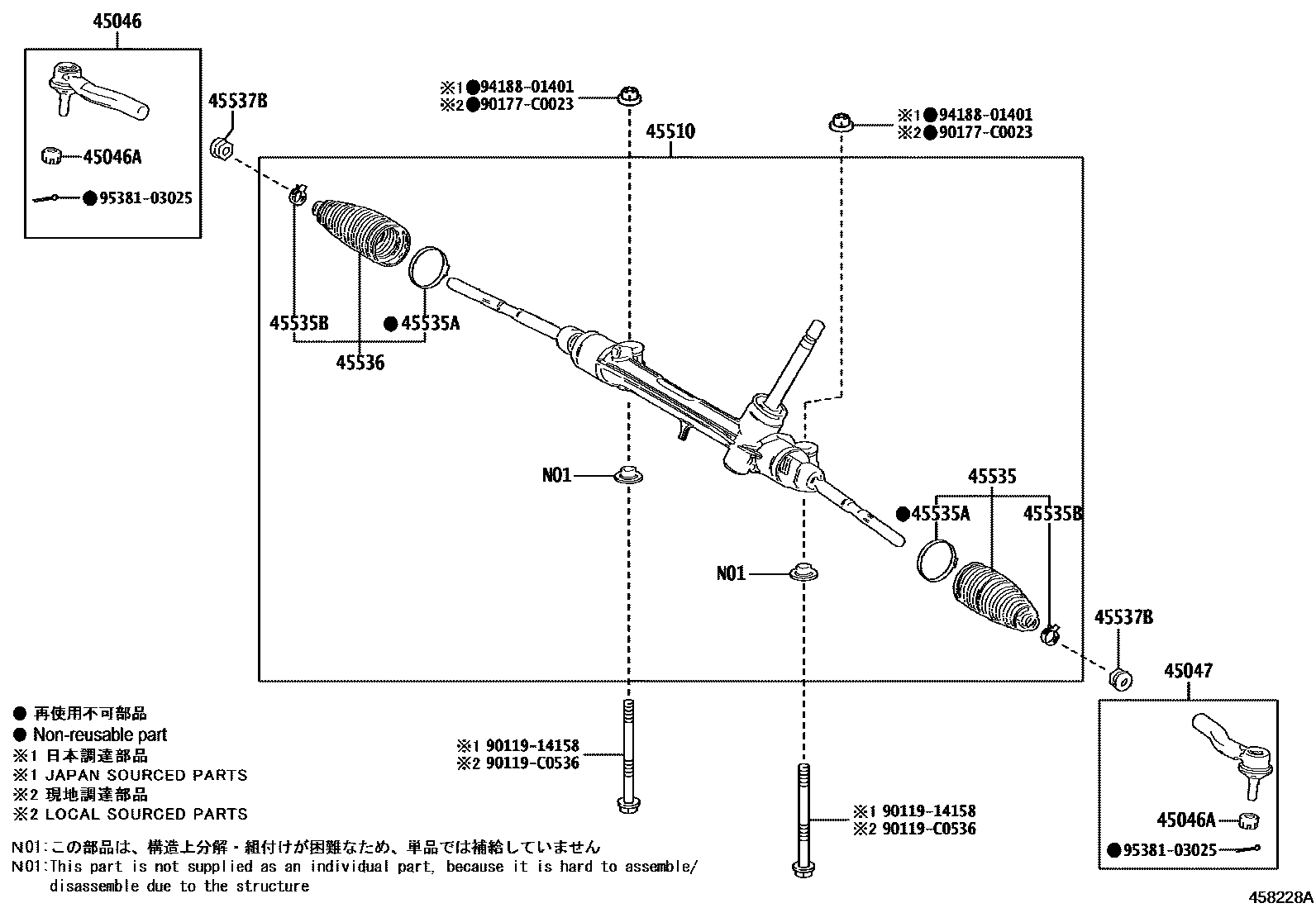

Toyota FRONT LANDER — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49265i202304

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i202304

(J)

main90171-C0001×2i202304

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-49205i202201-202304

45510GEAR ASSY, STEERING

main45510-F4060i202201-202304

45535BOOT, STEERING RACK, NO.1

main45535-59105i202304

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-0D070×2i202304

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030×2i202201-202304

45536BOOT, STEERING RACK, NO.2

main45535-59105i202304

45537BNUT, RACK END LOCK

main90178-16001×2i202201-202304

(J)

main90178-C0015×2i202201-202304

(L)

9011914158

main90119-14158

90119C0536

main90119-C0536

90177C0023

main90177-C0023

9418801401

main94188-01401

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota FRONT LANDER

This section contains 14 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota FRONT LANDER. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
