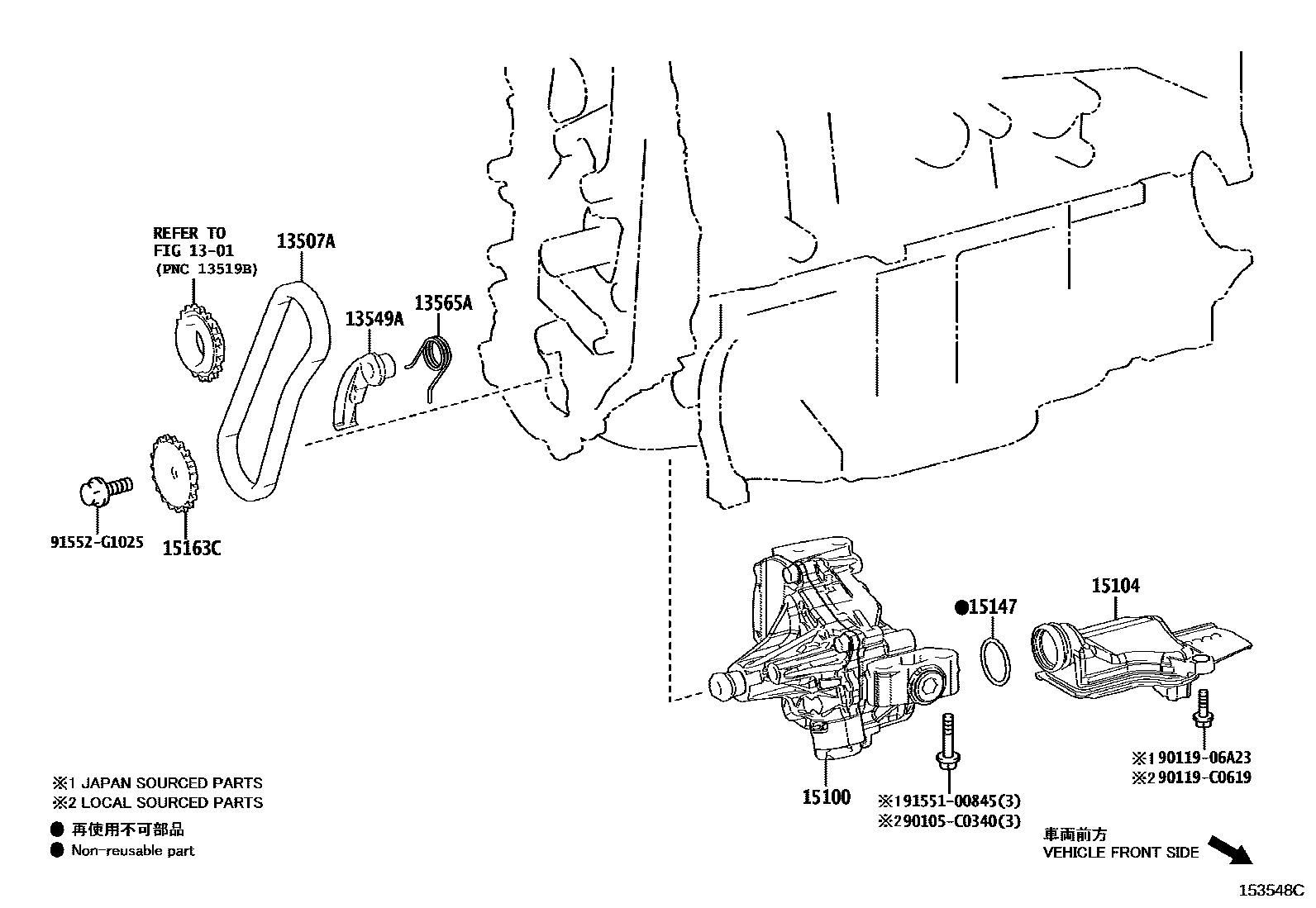

Toyota FRONT LANDER — ENGINE OIL PUMP

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020i202201-202304

*132

main13507-F2020i202201-202304

*668,*669

13549APLATE, CHAIN TENSIONER

main13549-25020i202304

*632

main13549-F2020i202201-202304

*668,*669

13565ASPRING, CHAIN DAMPER

main13565-25010i202201-202304

*132

main13565-F2020i202201-202304

*668,*669

15100PUMP ASSY, OIL

main15100-24020i202304

*632

main15100-F2030i202304

*668,*669

15104STRAINER SUB-ASSY, OIL

main15104-24010i202304

*632

main15104-F2050i202304

*668,*669

15147GASKET, OIL STRAINER

main15147-25010i202304

*632

main15147-F2010i202201-202304

*668,*669

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010i202201-202304

*132

main15163-F2020i202201-202304

*668,*669

90105C0340

main90105-C0340

9011906A23

main90119-06A23

90119C0619

main90119-C0619

9155100845

main91551-00845

91552G1025

main91552-G1025

13 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota FRONT LANDER

This section contains 13 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota FRONT LANDER. Key components include: CRANKSHAFT & PISTON, CHAIN SUB-ASSY, OIL PUMP DRIVE, PLATE, CHAIN TENSIONER, SPRING, CHAIN DAMPER, PUMP ASSY, OIL.
