Toyota FRONT LANDER — CRANKSHAFT & PISTON

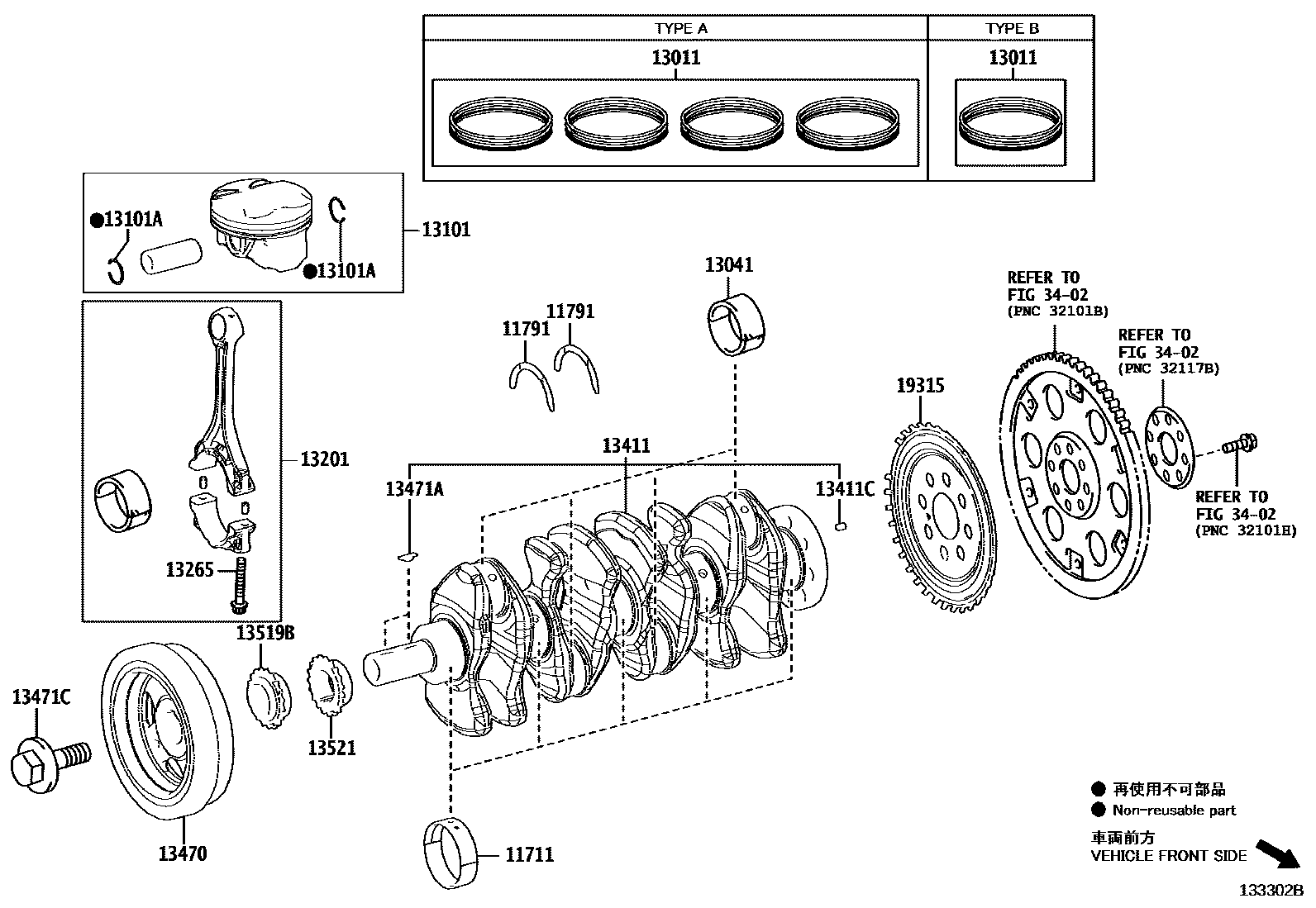

Parts diagram

11711BEARING, CRANKSHAFT

main11701-24010-01×5i202201-202303

MARK 1,*132:REFER R/M

main11701-24010-02×5i202201-202303

MARK 2,*132:REFER R/M

main11701-24010-03×5i202201-202303

MARK 3,*132:REFER R/M

main11701-24010-04×5i202201-202303

MARK 4,*132:REFER R/M

main11701-24010-05×5i202201-202303

MARK 5,*132:REFER R/M

main11701-24010-06×5i202201-202303

MARK 6,*132:REFER R/M

main11701-24011-01×5i202303-202304

MARK 1,*132:REFER R/M

main11701-24011-02×5i202304

MARK 2,*132:REFER R/M

main11701-24011-03×5i202303-202304

MARK 3,*132:REFER R/M

main11701-24011-04×5i202304

MARK 4,*132:REFER R/M

main11701-24011-05×5i202304

MARK 5,*132:REFER R/M

main11701-24011-06×5i202304

MARK 6,*132:REFER R/M

main11701-F2020-01×5i202304

MARK 1,*668,*669,*RRM

main11701-F2020-02×5i202304

MARK 2,*668,*669,*RRM

main11701-F2020-03×5i202201-202304

MARK 3,*668,*669,*RRM

main11701-F2020-04×5i202201-202304

MARK 4,*668,*669,*RRM

main11701-F2020-05×5i202304

MARK 5,*668,*669,*RRM

main11701-F2020-06×5i202304

MARK 6,*668,*669,*RRM

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2i202201-202304

STD,*132

main11791-F2030×2i202201-202304

STD,*668,*669

13011RING SET, PISTON

main13011-24040i202201-202304

STD,TYPE A:REFER ILLUST.

main13011-F2030×4i202304

STD,TYPE B:REFER ILLUST.

13041BEARING, CONNECTING ROD

main13041-24020-01×4i202304

MARK 1,*132:REFER R/M

main13041-24020-02×4i202304

MARK 2,*132:REFER R/M

main13041-24020-03×4i202201-202304

MARK 3,*132:REFER R/M

main13041-F2020-01×4i202201-202304

MARK 1,*668,*669,*RRM

main13041-F2020-02×4i202201-202304

MARK 2,*668,*669,*RRM

main13041-F2020-03×4i202201-202304

MARK 3,*668,*669,*RRM

13101PISTON SUB-ASSY, W/PIN

main13101-24040×4i202201-202304

STD,*132,*668,*669

main13101-F2110×4i202307

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8i202201-202304

*132,*668,*669

13201ROD SUB-ASSY, CONNECTING

main13201-29835-A0×4i202304

MARK A,*132:REFER R/M

main13201-29835-B0×4i202201-202304

MARK B,*132:REFER R/M

main13201-29835-C0×4i202304

MARK C,*132:REFER R/M

main13201-F9041-A0×4i202304

MARK A,*668,*669,*RRM

main13201-F9041-B0×4i202304

MARK B,*668,*669,*RRM

main13201-F9041-C0×4i202304

MARK C,*668,*669,*RRM

13265BOLT, CONNECTING ROD

main13265-25020×8i202304

*132

main13265-F2010×8i202201-202304

*668,*669

13411CRANKSHAFT

main13401-24010i202201-202304

*132

main13401-F2050i202304

*668,*669

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202304

*668,*669

main90250-C0025i202403

(L),*668,*669

13470PULLEY ASSY, CRANKSHAFT

main13470-24010i202201-202304

*132

main13470-24020i202401

(J)

main13470-F2010i202304

*668,*669

main13470-F2040i202401

(L)

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i202304

*668,*669

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202201-202304

*132

main90119-C0429i202304

*668,*669

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010i202304

*132

main13519-F2040i202201-202303

*668,*669

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010i202201-202304

*132

main13521-F2040i202201-202303

*668,*669

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010i202201-202304

*132

main19315-F2020i202201-202304

*668,*669

3402

17 parts on this diagram · 2 diagrams in section
