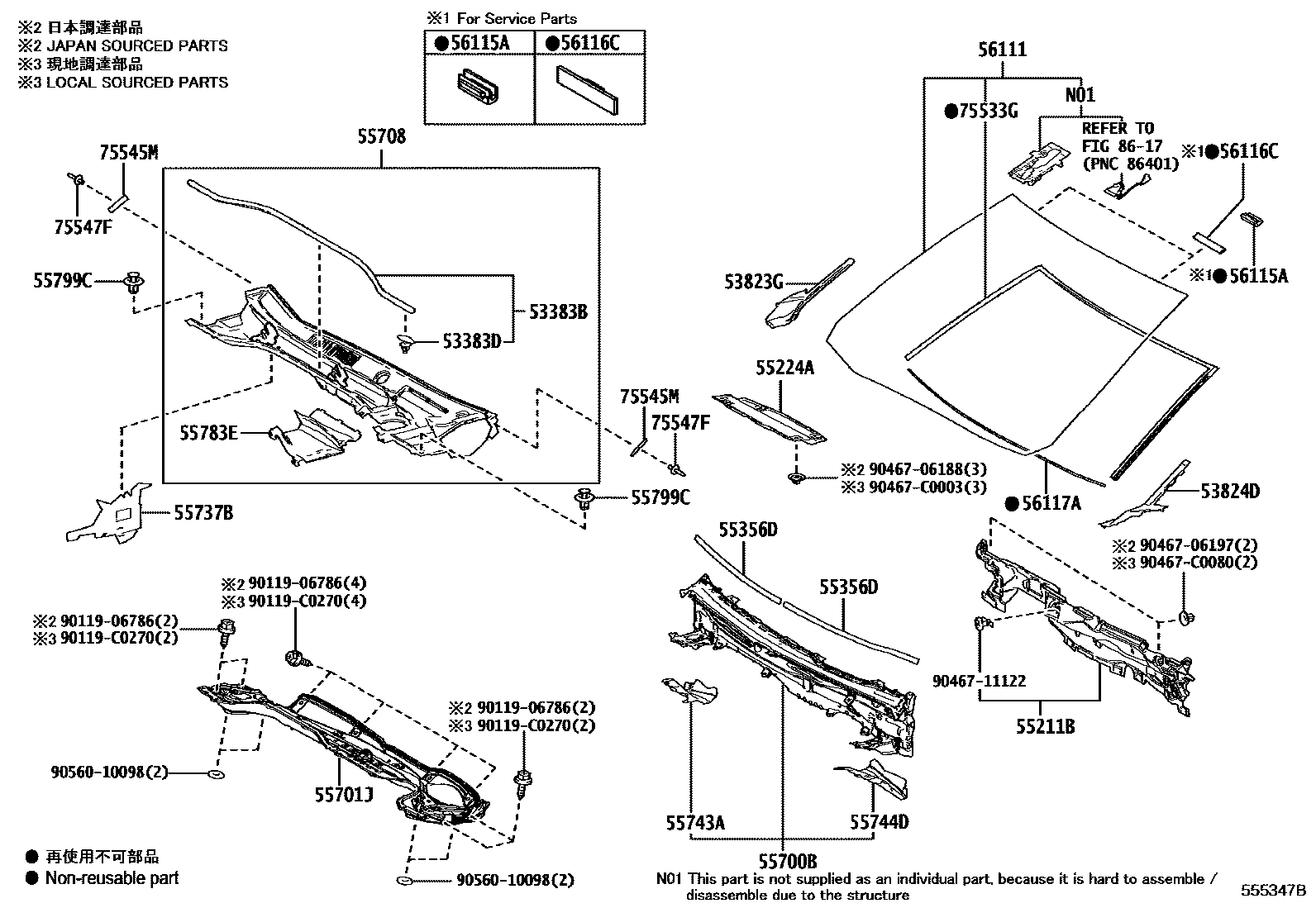

Toyota FRONT LANDER — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-0A080iMXGA10202201-202304

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0C010×3iMXGA10202201-202304

53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-0A060iMXGA10202201-202304

53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-0A060iMXGA10202201-202304

55211BSILENCER, FRONT PANEL

main55211-0A090iMXGA10202201-202304

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-0A070iMXGA10..G,J,N202201-202207

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-02570×2iMXGA10202201-202304

55700BCOWL ASSY

main55700-0A060iMXGA10..A,G,J,N202201-202304

main55700-0A080iMXGA10..E202201-202304

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0A080iMXGA10202201-202304

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0A120iMXGA10202201-202304

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0A070iMXGA10202201-202304

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-0A030iMXGA10202201-202304

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-0A030iMXGA10202201-202304

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-0A070iMXGA10202201-202304

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iMXGA10202201-202304

(J)

main90467-C0037×2iMXGA10202201-202304

(L)

56111GLASS, WINDSHIELD

main56101-0A360iMXGA10..A,E,G,N202201-202304

main56101-0A530supersedes 56101-0A350iMXGA10,MXGH10..A,E,G,N202304

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMXGA10,MXGH10202304

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMXGA10202201-202304

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0A060iMXGA10202201-202304

L=1314

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-0A080iMXGA10202201-202304

75545MCLIP, WINDSHIELD OUTSIDE MOULDING

main75545-16040×2iMXGA10202201-202304

75547FCLIP, WINDSHIELD OUTSIDE MOULDING

main75547-51021×2iMXGA10202201-202304

(J)

main90269-C0005×2iMXGA10202201-202304

(L)

8617

9011906786

main90119-06786

90119C0270

main90119-C0270

9046706188

main90467-06188

9046706197

main90467-06197

9046711122

main90467-11122

90467C0003

main90467-C0003

90467C0080

main90467-C0080

9056010098

main90560-10098

31 parts on this diagram · 2 diagrams in section
