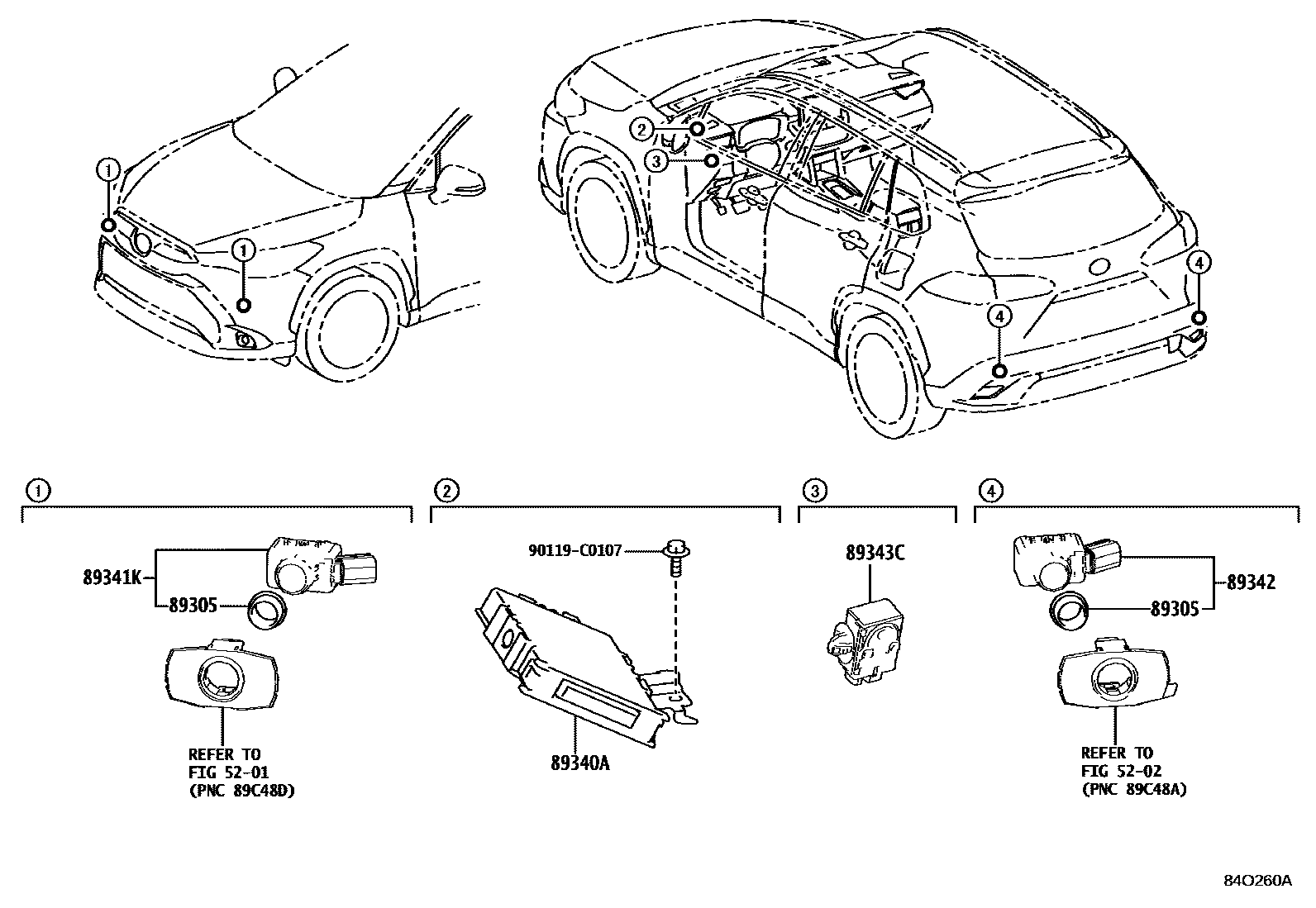

Toyota FRONT LANDER — CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010i202304

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0A070i202201-202304

*614

main89340-0A130i202304

*614

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-0R080-A0×2i202201-202206

PLATINUM WHITE PEARL MC.,089 ,2PU

main89341-0R080-B1×2i202201-202206

SILVER ME.,1D4

main89341-0R080-C0×2i202201-202206

BLACK MC.,209

main89341-0R080-D2×2i202201-202206

RED M.M.,2NU ,3R3

main89341-0R080-E0×2i202201-202206

AVANT-GARDE BRONZE ME.,2SA ,4V8

main89341-0R080-F0×2i202201-202206

BRASS GOLD ME.,2TY ,5C2

main89341-0R080-J2×2i202201-202206

BLUE ME.,8X7

main89341-0R100-A0×2i202207-202304

PLATINUM WHITE PEARL MC.,089 ,2PU

main89341-0R100-B3×2i202304

SILVER ME.,1D4

main89341-0R100-C0×2i202207-202304

DUMMY-MAT BLACK

main89341-0R100-C1×2i202304

BLACK MC.,209

main89341-0R100-D2×2i202207-202304

RED M.M.,2NU ,3R3

main89341-0R100-E2×2i202207-202304

AVANT-GARDE BRONZE ME.,2SA ,4V8

main89341-0R100-F1×2i202304

BRASS GOLD ME.,2TY ,5C2

main89341-0R100-J1×2i202207-202304

BLUE ME.,8X7

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0R080-C1×2i202201-202206

DUMMY-MAT BLACK

main89341-0R100-C0×2i202304

DUMMY-MAT BLACK

main89341-0R100-C1×2i202207-202304

BLACK MC.,209

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010i202201-202304

90119C0107

main90119-C0107

8 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota FRONT LANDER

This section contains 8 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota FRONT LANDER. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, FRONT CORNER.
