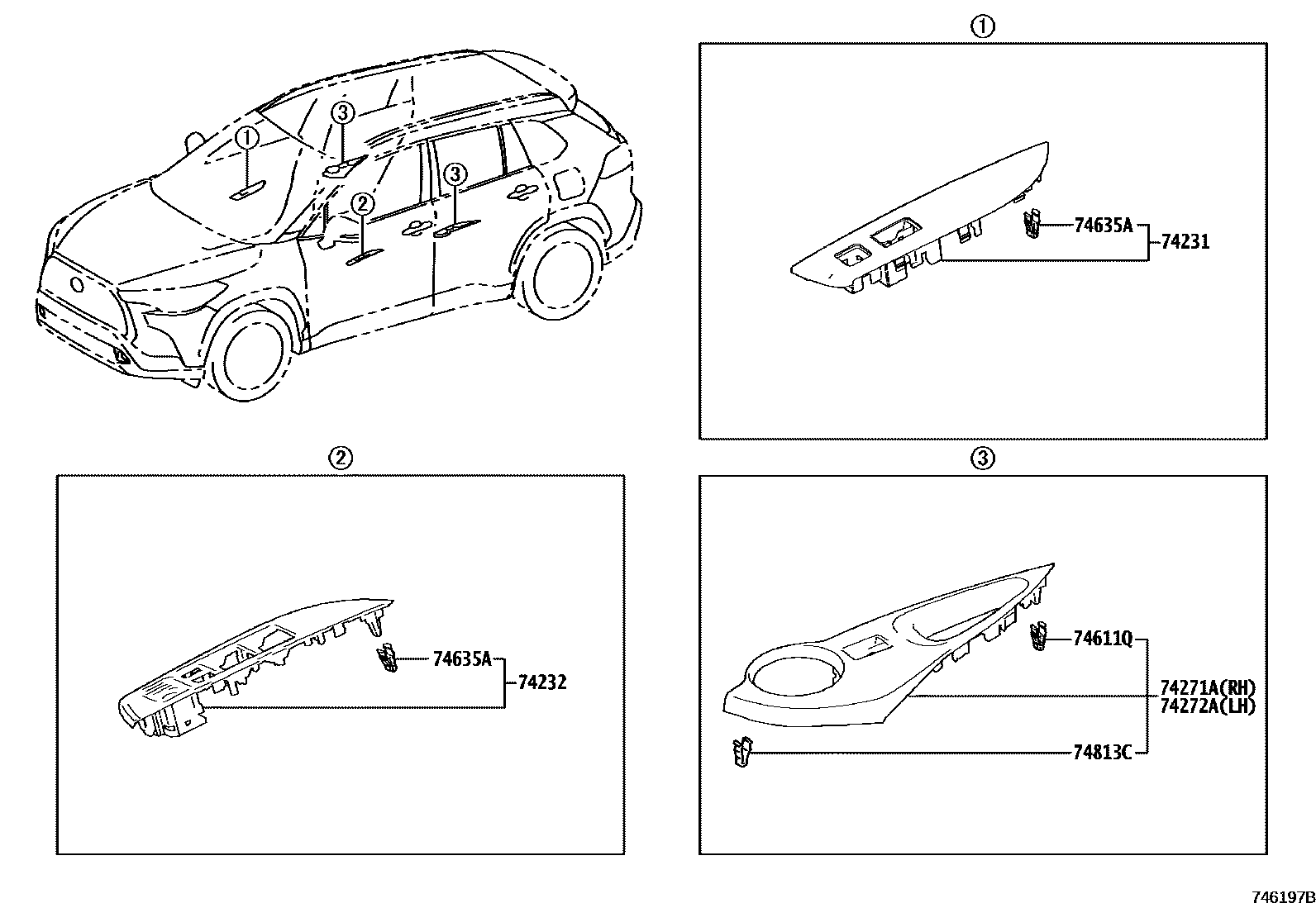

Toyota FRONT LANDER — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02J50iMXGA10,MXGH10..G,J,N202304

main74231-0A050iMXGA10..A,E202201-202304

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02K10iMXGA10..G,J,N202201-202304

main74232-0A040iMXGA10,MXGH10..A,E202304

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0A060iMXGA10202201-202304

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0A060iMXGA10202201-202304

74611QCLIP

main90467-C0031×2iMXGA10202201-202304

74635ACLIP

main90467-10203×2iMXGA10..G,J,N202201-202304

main90467-C0031iMXGA10..A,E202301-202304

(L)

74813CCLIP

main90467-12080×2iMXGA10,MXGH10202304

7 parts on this diagram · 2 diagrams in section
