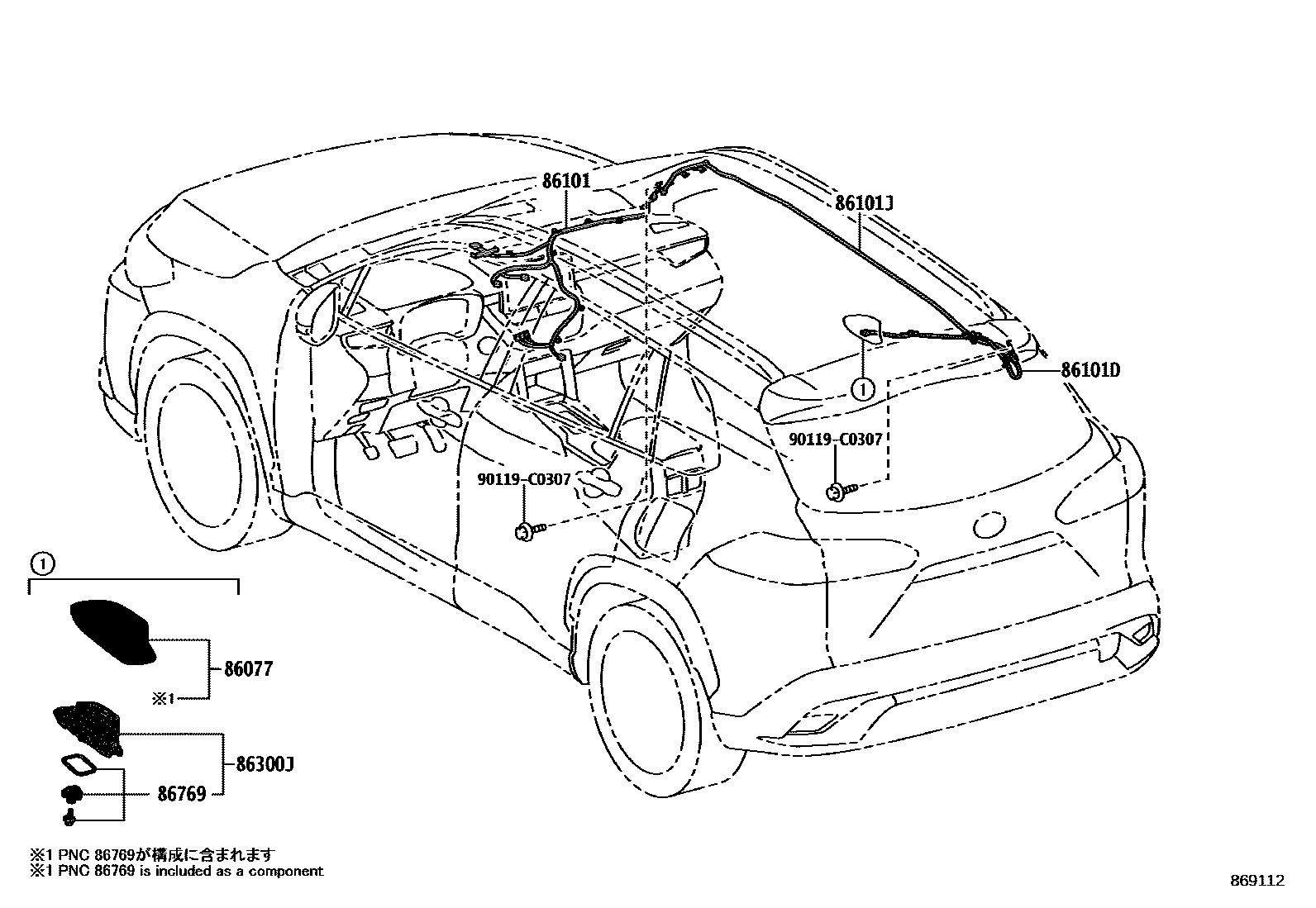

Toyota FRONT LANDER — ANTENNA

86077COVER KIT, ANTENNA

main86766-09000iMXGA10,MXGH10202304

main86766-F9020-A2iMXGA10202201-202304

PLATINUM WHITE PEARL MC.,089

main86766-F9020-B0iMXGA10202201-202304

SILVER ME.,1D4

main86766-F9020-C1iMXGA10202201-202304

BLACK MC.,209 ,2NU ,2PU ,2SA ,2TY

main86766-F9020-D0iMXGA10202201-202304

RED M.M.,3R3

main86766-F9020-E2iMXGA10202201-202304

AVANT-GARDE BRONZE ME.,4V8

main86766-F9020-F1iMXGA10202201-202304

BRASS GOLD ME.,5C2

main86766-F9020-J0iMXGA10202201-202304

BLUE ME.,8X7

86101CORD SUB-ASSY, ANTENNA

main86101-0A500iMXGA10..A,E202201-202304

main86101-0A530iMXGA10..G,J,N202201-202304

main86101-0A880iMXGA10,MXGH10202304

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0A520iMXGA10202201-202304

main86101-0A850iMXGA10,MXGH10202304

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0A490iMXGA10..A,G,J,N202201-202304

main86101-0A540iMXGA10..E202201-202304

main86101-0A860iMXGA10,MXGH10..A,G,J,N202304

main86101-0A870iMXGA10,MXGH10..E202304

86300JANTENNA ASSY, ROOF

main86300-0A040iMXGA10202201-202304

main86300-0A070iMXGA10,MXGH10202304

86769HOUSING, ROOF ANTENNA

main86769-0E030iMXGA10,MXGH10202304

main86769-12010iMXGA10202201-202304

90119C0307

main90119-C0307

7 parts on this diagram · 1 diagram in section
