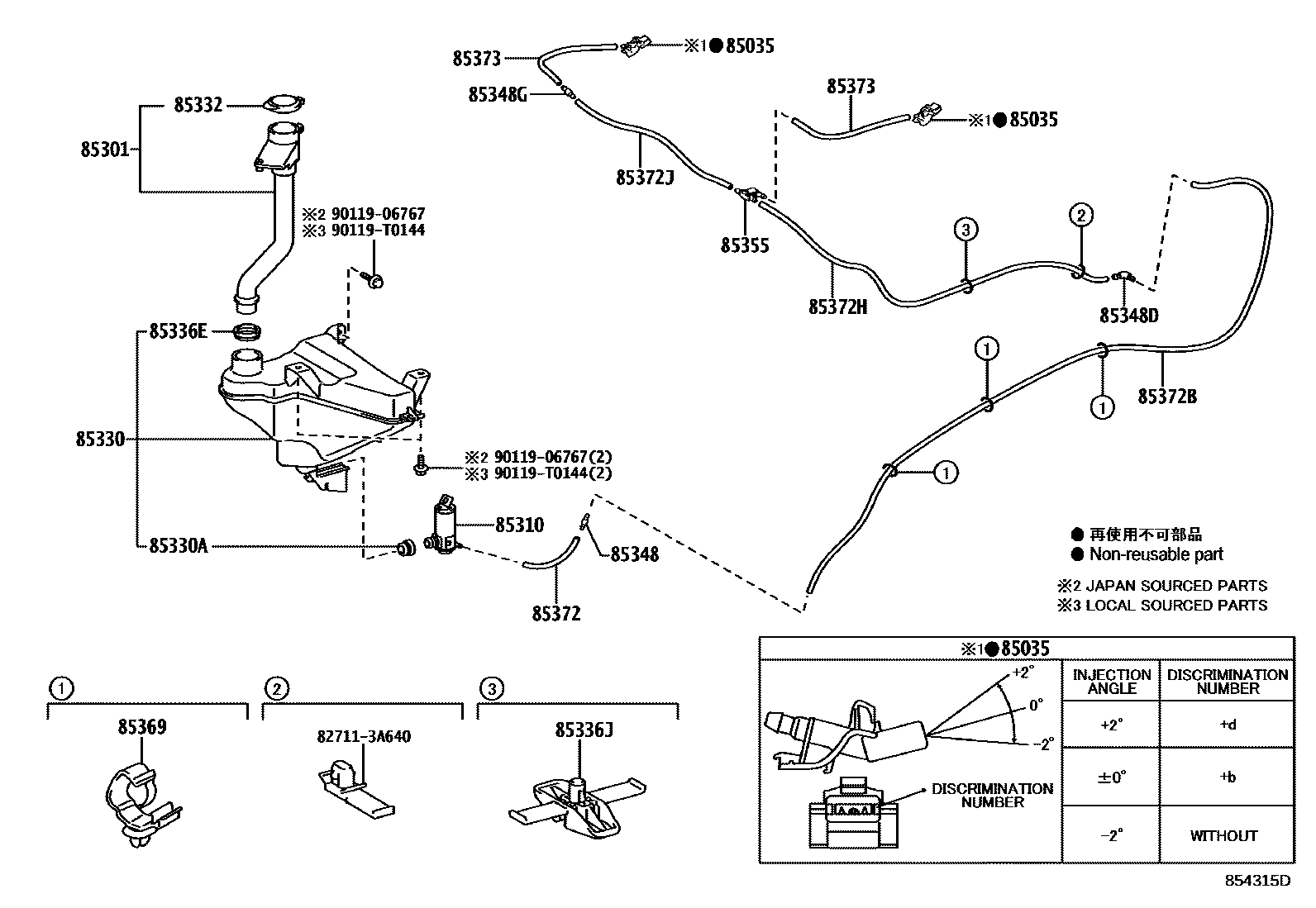

Toyota FORTUNER — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85301INLET SUB-ASSY, WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
9011906767
main90119-06767
90119T0144
main90119-T0144
21 parts on this diagram · 4 diagrams in section
WINDSHIELD WASHER for Toyota FORTUNER
This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota FORTUNER. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
