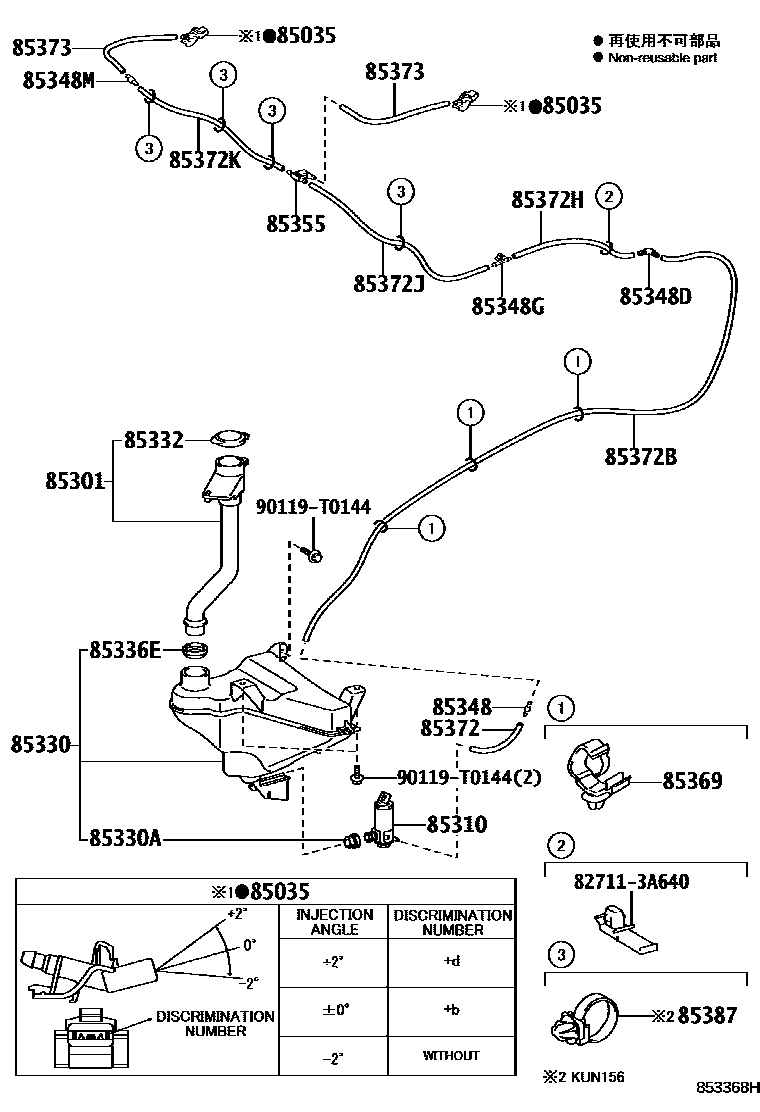

Toyota FORTUNER — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0005 1 0010 1 0011 1 0012 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0K070iTGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN166..6FC..(BZAGT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,168..AGTSU,IDNSU,MASUV,PK201507-202104

ANGLE 0

main85381-0K080iGGN155,TGN156,166..EPT201507-202104

ANGLE -2

main85381-0K090iGGN155,TGN156,166..EPT201507-202104

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85301-0K030iTGN166..VNSUV;TGN166..IDNSU..5F..GCC;TGN166..IDNSU..6FC..(H,L,M);GGN155,165,GUN15#,165,KUN156,TGN156..IDNSU,VNSUV201601-202008

main85301-0K100iGUN156,166,TGN166..IND201610-202012

main85301-0K110iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,PKNSU,THSUV201507-202104

main85301-0K140iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main85301-0K160iGUN155,165,TGN156..MA201605-202012

main85301-0K190iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV201507-201704

main85330-0K051iGUN156,166,TGN166..IND201703-202012

main85330-0K052iGUN156,TGN166202101-202104

main85330-47100iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201710-202005

main85330-58011iGUN156,TGN156..THSUV..(GEN,KZS)201708-201709

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K230iTGN166..IDNSU..S..GCC;TGN166..LHD..IDNSU..(GEN,PH,VN)201601-202008

main85315-0K240iGUN156,166,TGN166..IND201610-202012

main85315-0K250iGUN156..THSUV..(H,L);GUN156..RHD..(PKNSU,THSUV)..(M,S);GGN155,165,GUN155,16#,TGN156,166..(EPTSU,PKNSU,THSUV)..(EPT,GCC,PKN,TH)201507-202104

main85315-0K270iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main85315-0K360iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main85315-0K460iGUN155,165,TGN156..MA201605-202012

main85315-71040iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iTGN166..IDNSU..S..GCC;TGN166..LHD..IDNSU..(GEN,PH,VN)201507-202104

85332CAP, WINDSHIELD WASHER JAR

main85316-0K100iGUN156,166,TGN166..IND201610-202012

main85316-16070iTGN166..IDNSU..S..GCC;TGN166..LHD..IDNSU..(GEN,PH,VN)201601-202012

main85316-YE011iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,PKNSU,SASUV,THSUV201507-202104

main85386-0K140iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iTGN166..IDNSU..S..GCC;TGN166..LHD..IDNSU..(GEN,PH,VN)201507-202104

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-02330iGUN156,166,TGN166..IND201610-202012

main85375-06101iGGN155,TGN156,166..EPT201507-202104

main85375-10260iTGN166..L..GEN;TGN166..IDNSU..6FC..(GCC,PH,VN)201601-202008

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iTGN166..L..GEN;TGN166..IDNSU..6FC..(GCC,PH,VN)201601-202008

main85377-0D040iGUN156,166,TGN166..IND201507-202104

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-06101iGUN165..MA;GUN156..THSUV..H..GEN;GUN165..(SASUV,THSUV)..6F..L;GUN165..(AGTSU,SASUV,THSUV)..6FC..(H,L,S);GUN156,166,TGN166..(AGTSU,PKNSU,SASUV,THSUV)..(BZAGT,GCC,LA,201512-202104

main85375-10260iGUN155,165,TGN166..IDN201912-202007

main85375-17050iGUN156,16#,TGN166..THSUV201507-201601

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-02330iGUN156,166,TGN166..IND201610-202012

main85375-06101iGUN156,16#,TGN166..THSUV201507-201601

main85375-10260iGUN155,165,TGN166..IDN201601-202008

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGUN165..6FC..TH;GUN165,TGN166..IDN;GUN15#,166..IDN,TH201507-202104

main85348-14390iGUN15#,16#,TGN166..IDN,TH201912-202007

85369CLAMP

main82711-0K070iGUN156,166,TGN166..IND201507-202104

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33160iGUN156..THSUV..H..GEN;GGN155..AGTSU,SASUV,THSUV;GGN165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,MASUV,PKNSU,SASUV,THSUV)..(ARL,BZAGT,GCC,LA,MA,PKN,SA,TH)201507-202104

L=40

main90068-33261iTGN166..L..GEN;TGN166..IDNSU..6FC..(GCC,PH,VN)201601-202008

L=40

main90068-33278iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

L=1635

main90069-46081iGUN156,166,TGN166..IND201610-202012

L=300

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33296iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

L=685

main90068-59152iGGN155,TGN156,166..EPT201507-202104

L=1445

main90068-59153iTGN166..VNSUV;TGN166..IDNSU..5F..GCC;TGN166..IDNSU..6FC..(GEN,IDN,LA);GGN155,165,GUN15#,165,KUN156,TGN156..IDNSU,VNSUV201601-202008

L=1445

main90069-46096iGUN156,166,TGN166..IND201610-202012

L=1445

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33258iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

L=430

main90068-33276iGUN156,16#,TGN166..THSUV201507-201601

L=205

main90068-33295iGUN165..M..TH;GUN165..6F..TH;GUN156,166,TGN166..RHD..THSUV201512-202104

L=685

main90068-33297iKUN156..AGTSU,SASUV201512-201709

L=535

main90068-33298iTGN166..VNSUV;TGN166..IDNSU..5F..GCC;TGN166..IDNSU..6FC..(GEN,IDN,LA);GGN155,165,GUN15#,165,TGN156..IDNSU,VNSUV201601-202008

L=685

main90068-33299iKUN156..IDNSU201601-201707

L=535

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90068-33257iGGN155,TGN156,166..EPT201512-202104

L=430

main90068-33259iKUN156..AGTSU,SASUV201512-201709

L=580

main90068-33264iGUN155,165,TGN166..IDN201912-202007

L=430

main90068-33266iGUN156,16#,TGN166..THSUV201507-201601

L=470

main90069-46078iGUN156,166,TGN166..IND201610-202012

L=40

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90068-33257iGUN156,16#,TGN166..THSUV201507-201601

L=430

main90068-33264iGUN155,165,TGN166..IDN201601-202008

L=430

main90068-33265iKUN156..IDNSU201601-201707

L=580

main90068-33395iGUN155,165,TGN166..IDN201912-202007

L=175

main90068-33398iGUN15#,16#..TH201912-202005

L=175

main90069-46077iGUN156,166,TGN166..IND201610-202012

L=430

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33019iGUN15#,16#..TH201912-202005

L=40

main90068-33251iGGN155,TGN156,166..EPT201507-202104

L=235

main90068-33256iTGN166..VNSUV;TGN166..IDNSU..5F..GCC;TGN166..IDNSU..6FC..(GEN,LA);GGN155,165,GUN15#,165,KUN156,TGN156..(IDNSU,VNSUV)..(GCC,GEN,LA,PH,VN)201601-202008

L=235

main90068-33394iGUN155,165,TGN166..IDN201912-202007

L=40

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52070iKUN156..IDNSU201512-201709

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

90119T0144

main90119-T0144

22 parts on this diagram · 7 diagrams in section
