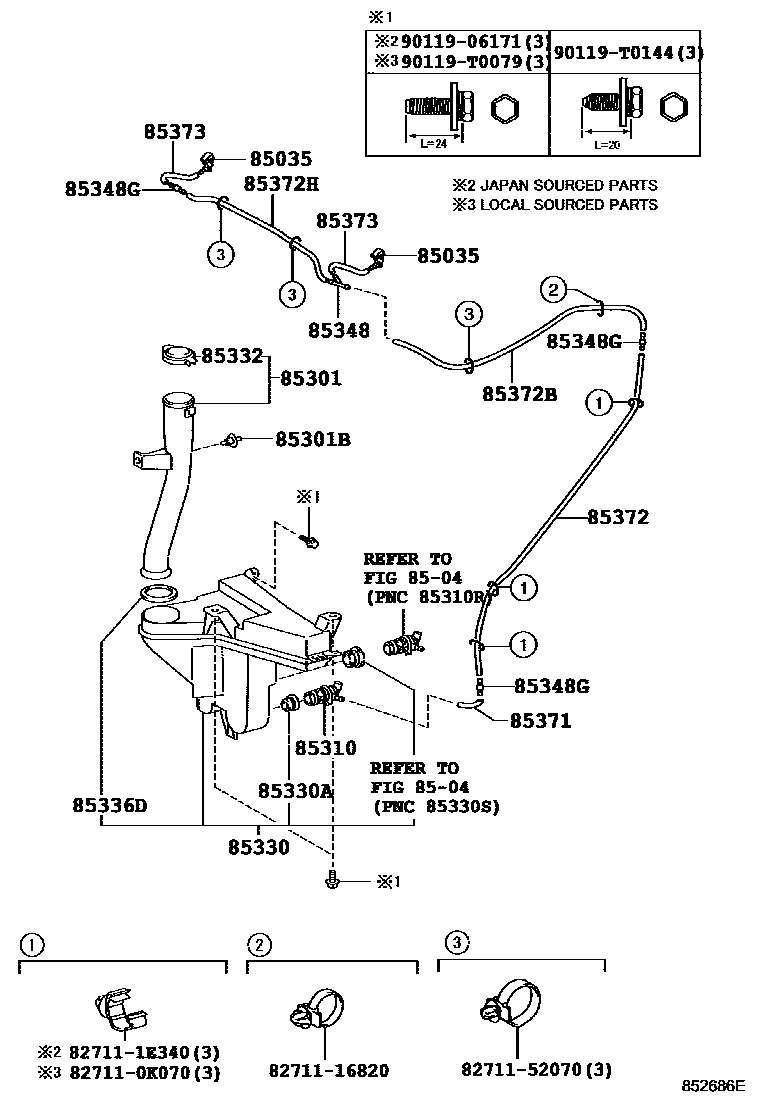

Toyota FORTUNER — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8504REAR WASHER
85301INLET SUB-ASSY, WASHER
main85301-0K150iGGN50,60,KUN51,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,KZS,PHL,PKN,SA,TH,VN)201107
85301BCLIP, WASHER
IVORY
BLACK
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-0D100iGGN50,KUN50,61..EPT,IDN,TH;TGN51..EPT,GCC,GEN,IDN,PKN,SA;KUN60,TGN61..GCC,GEN,IDN,IND,PHL,SA,TH,VN201107
main85330-71020iTGN51..VN;KUN61..IND,SA;TGN61..4FC..HTWC..LA;GGN50,60,KUN51,LAN50..SR..(ANCOM,CO,GCC,GEN,IND,LA,PHL,SA,TH)201107
85330JAR ASSY, WINDSHIELD WASHER
main85315-0K050iGGN50,KUN61..EPT,TH;TGN51..SUVW..(EPT,GCC,GEN,IDN,KZS,PKN,SA);KUN60,TGN61..SUVW..(GCC,GEN,IDN,PHL,SA,TH,VN)201107
HEADLAMP-HALOGEN
main85355-71020iTGN51..VN;KUN61..IND,SA;TGN61..4FC..HTWC..LA;GGN50,60,KUN51,LAN50..SR..(ANCOM,CO,GCC,GEN,IND,LA,PHL,SA,TH)201107
85330ABUSH, WINDSHIELD WASHER JAR
main85336-0K020iGGN50,KUN61..EPT,TH;TGN51..SUVW..(EPT,GCC,GEN,IDN,KZS,PKN,SA);KUN60,TGN61..SUVW..(GCC,GEN,IDN,PHL,SA,TH,VN)201107
main85336-60300iTGN51..CO,VN;TGN61..CO,LA;KUN6#..SR..(IND,SA);KUN60,TGN51,61..IDSUV;GGN50,60,KUN5#,LAN50..ANCOM,CO,GCC,GEN,IDN,IND,LA,PHL,SA,TH201107
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
main85336-0K010iGGN50,KUN61..EPT,TH;TGN51..SUVW..(EPT,GCC,GEN,IDN,KZS,PKN,SA);KUN60,TGN61..SUVW..(GCC,GEN,IDN,PHL,SA,TH,VN)201107
HEADLAMP-HALOGEN
main85336-42190iTGN51..VN;KUN6#..SR..(IND,SA);TGN61..4FC..HTWC..LA;GGN50,60,KUN51,LAN50..SR..(ANCOM,CO,GCC,GEN,IND,LA,PHL,SA,TH)201107
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1910
L=1910
main90068-33160iGGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,MA,PHL,PKN,SA,TH,VN)201107
L=40
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=510
main90068-59091iGGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,MA,PHL,PKN,SA,TH,VN)201107
L=950
L=1450(*H,L=530)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90068-33159iGGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,MA,PHL,PKN,SA,TH,VN)201107
L=900
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33299iGGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,MA,PHL,PKN,SA,TH,VN)201107
L=1000(*H,L=530)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=120
L=1450(*H,L=120)
827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-0K070
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E340
8271152070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52070
9011906171
main90119-06171
90119T0079
main90119-T0079
90119T0144
main90119-T0144
23 parts on this diagram · 5 diagrams in section
WINDSHIELD WASHER for Toyota FORTUNER
This section contains 27 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota FORTUNER. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER.
