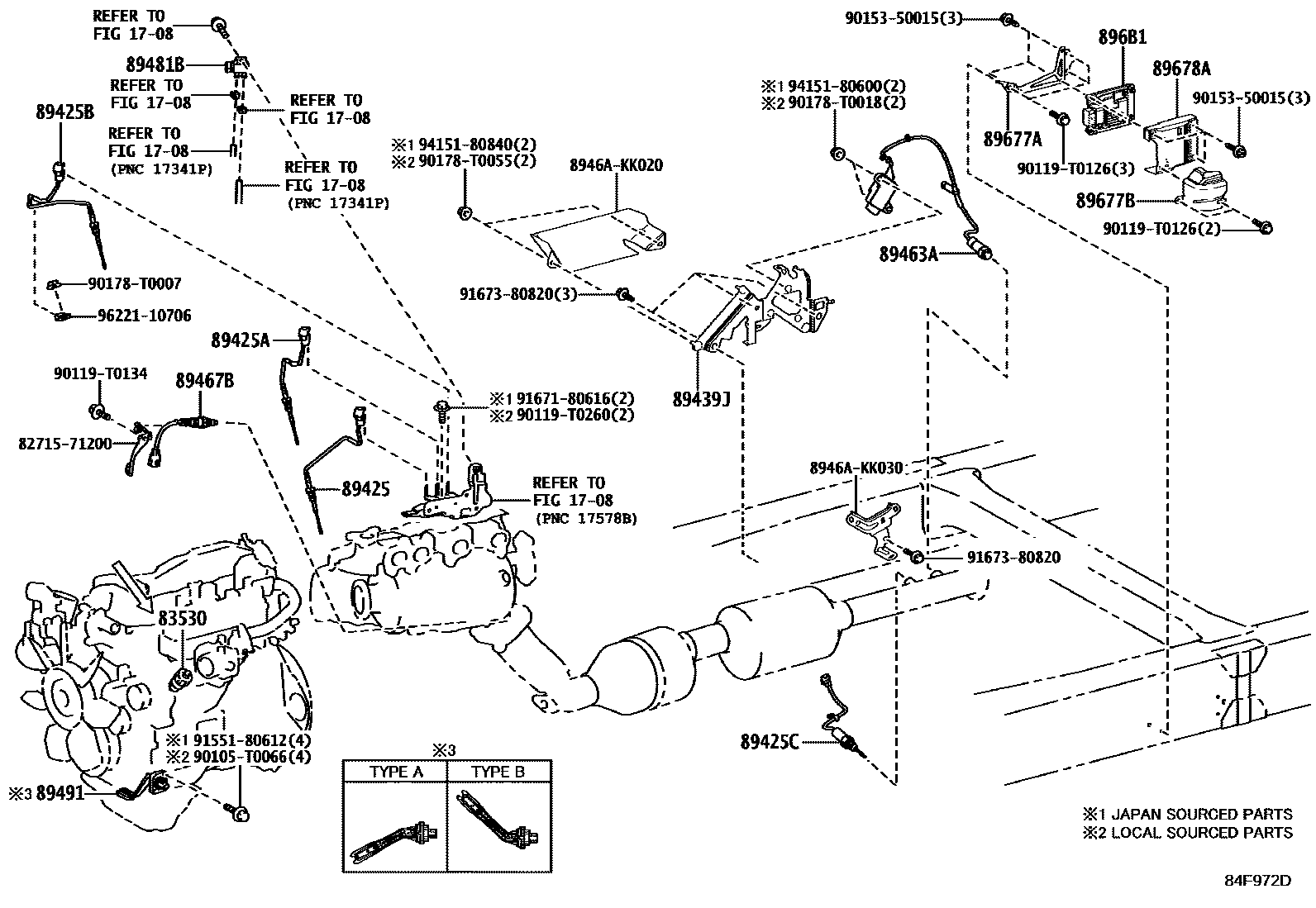

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iGUN15#,16#,KUN156,165..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

DENSO

main83530-28020iTGN166..IND201507-202012

DENSO

main83530-60010iGUN156,166..IND201507-202012

YAZAKI

main83530-60020iGGN155,TGN156,166..EPT201507-202101

YAZAKI

main83530-60030iLAN155201603-202009

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070supersedes 89425-71070iGUN156,166..IND202002-202012

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080supersedes 89425-71080iGUN156..IND201507-201709

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090iGUN156..IND201507-201709

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-71060iGUN156,166..IND202002-202012

89439JBRACKET, SENSOR, NO.2

main8946A-71050iGUN156,166..IND202002-202012

89463ASENSOR, NITROGEN OXIDES

main89463-71020iGUN156,166..IND202002-202012

sub89463-71021

89467BSENSOR, AIR FUEL RATIO

main89467-71110×2iGGN155,165201512-202101

main89467-71120supersedes 89467-71120iGUN156..H..HDCR..BZAGT;GUN156..(AGTSU,THSUV)..(L,M,S)..HDCR..(ARL,BZAGT,GEN)201507-202012

main89467-71130iTGN156,166..EPT201507-202101

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGUN156,166..IND201507-201710

89491SENSOR, ENGINE OIL LEVEL

main89491-26190iGUN156..THSUV..(M,S)..GEN201905-202012

main89491-71010iGUN156..THSUV..(M,S)..GEN201807-201905

89677ABRACKET, UREA PUMP CONTROL, NO.1

main89677-71020iGUN156,166..IND202002-202012

89677BBRACKET, UREA PUMP CONTROL, NO.3

main89677-0K020iGUN156,166..IND202002-202012

89678ABRACKET, UREA PUMP CONTROL, NO.2

main89678-71010iGUN156,166..IND202002-202012

896B1COMPUTER, UREA PUMP CONTROL

main896B1-71050iGUN156,166..IND202002-202012

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200

8946AKK020BRACKET, EXHAUST SENSOR CLAMP

main8946A-KK020

8946AKK030BRACKET, EXHAUST SENSOR CLAMP

main8946A-KK030

90105T0066

main90105-T0066

90119T0126

main90119-T0126

90119T0134

main90119-T0134

90119T0260

main90119-T0260

9015350015

main90153-50015

90178T0007

main90178-T0007

90178T0018

main90178-T0018

90178T0055

main90178-T0055

9155180612

main91551-80612

9167180616

main91671-80616

9167380820

main91673-80820

9415180600

main94151-80600

9415180840

main94151-80840

9622110706

main96221-10706

32 parts on this diagram · 21 diagrams in section
