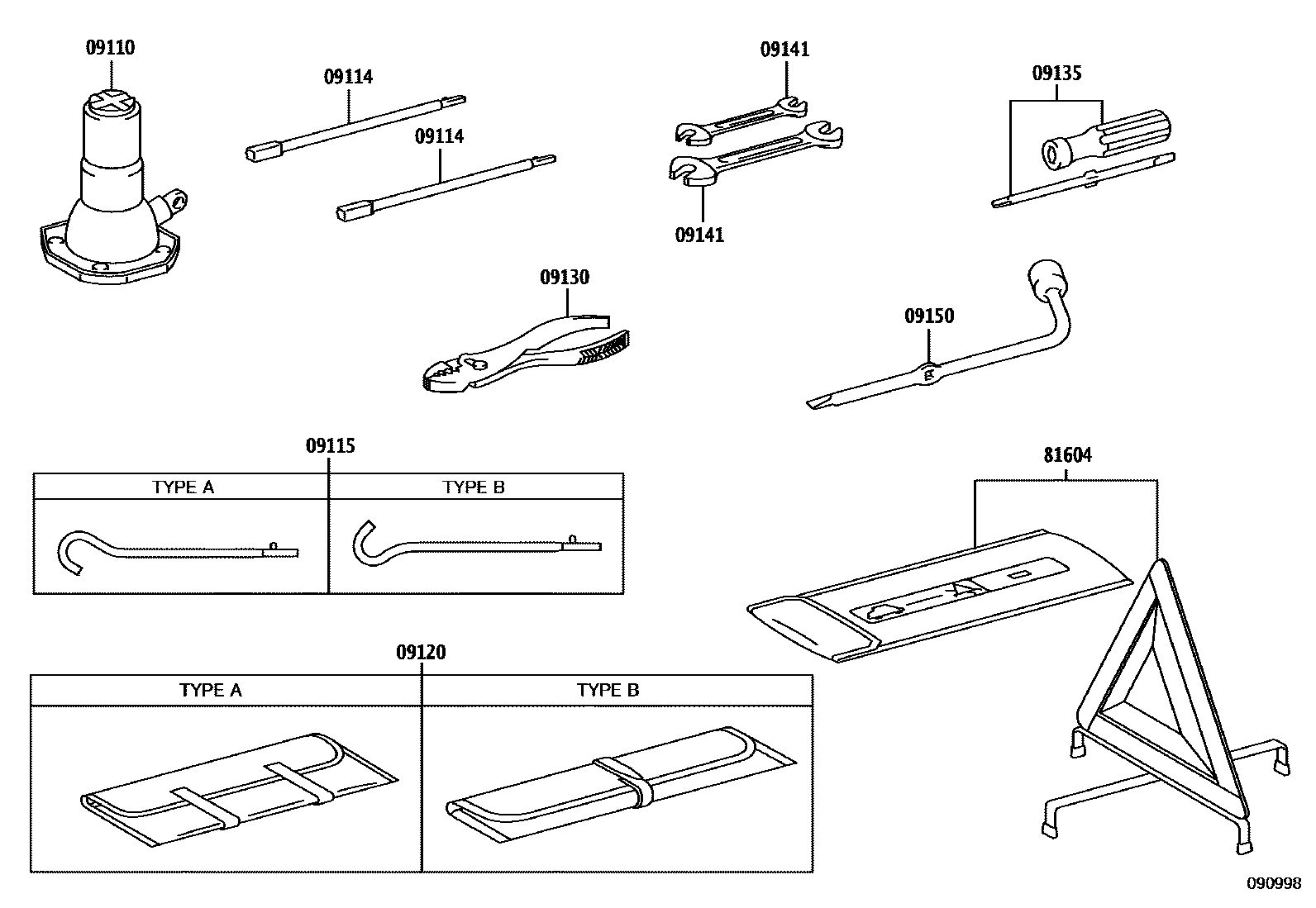

Toyota FORTUNER — STANDARD TOOL
09110JACK ASSY
main09111-0K161iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204
09114EXTENSION SUB-ASSY, JACK HANDLE
09115ROD SUB-ASSY, JACK HANDLE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
09120BAG, TOOL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
09130PLIERS
09135DRIVER, SCREW
09141SPANNER
8 X 10
12 X 14
8 X 10
12 X 14
12 X 14
8 X 10
8 X 10
8 X 10
12 X 14
8 X 10
12 X 14
09150WRENCH, HUB NUT BOX
81604REFLECTOR SET, TRIANGLE
9 parts on this diagram · 1 diagram in section
STANDARD TOOL for Toyota FORTUNER
This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota FORTUNER. Key components include: JACK ASSY, EXTENSION SUB-ASSY, JACK HANDLE, ROD SUB-ASSY, JACK HANDLE, BAG, TOOL, PLIERS.
