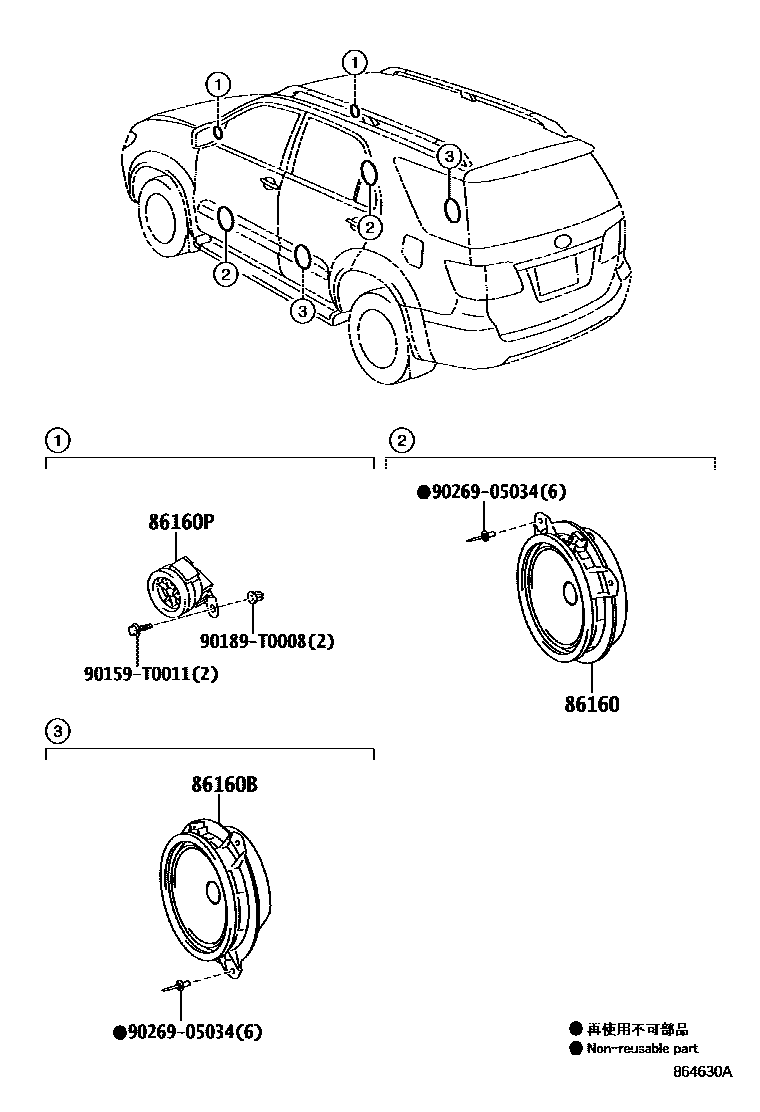

Toyota FORTUNER — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
86160BSPEAKER ASSY, REAR
86160PSPEAKER ASSY, FRONT NO.2
RH
main86150-0K020iKUN51..RHD..SA;KUN61,TGN61..SUVW..(5F,5FC)..(CO,GCC,SA,TH);KUN51,TGN51..(SASUV,SUVW,THSUV)..SR..(CO,GCC,GEN,IDN,LA,PHL,TH);KUN61,TGN61..SUVW..4FC..(DCR,HTWC)..(CO,GCC,GEN,IDN,IND,LA,PHL,SA,TH);GGN50,60,KUN60..(SUVW,THSUV)..SR..(ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107
LH
RH
LH
RH
LH
90159T0011
main90159-T0011
90189T0008
main90189-T0008
9026905034
main90269-05034
6 parts on this diagram · 1 diagram in section
SPEAKER for Toyota FORTUNER
This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota FORTUNER. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
