Toyota FORTUNER — SIDE WINDOW
56117CDAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE)
L=770
62710AWINDOW ASSY, QUARTER, RH
main62710-0K400iGUN155..RHD..GEN;GGN155,GUN156,16#,TGN156,166..(IDNSU,VNSUV)..H..(GEN,PH,VN)202007-202204
BACK GLASS-FIX TYPE(PRIVACY)
62720AWINDOW ASSY, QUARTER, LH
main62720-0K300iGUN155..RHD..GEN;GGN155,GUN156,16#,TGN156,166..(IDNSU,VNSUV)..H..(GEN,PH,VN)202007-202204
BACK GLASS-FIX TYPE(PRIVACY)
62761HRETAINER, QUARTER WINDOW GLASS, FRONT
RH
RH
main62762-0K051iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204
LH
LH
62763JRETAINER, QUARTER WINDOW GLASS, UPPER
RH
RH
LH
LH
62765HRETAINER, QUARTER WINDOW GLASS, LOWER
RH
RH
main62766-0K011iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204
LH
LH
62767BRETAINER, QUARTER WINDOW GLASS, REAR
RH
RH
LH
LH
62775ACLIP, QUARTER WINDOW
main62775-0K220iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204
62775BCLIP, QUARTER WINDOW, LH
main62775-0K210iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204
62775GCLIP, QUARTER WINDOW, RH
62785ASPACER, QUARTER WINDOW GLASS
69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1
69998BPIN, QUARTER WINDOW GUIDE PIECE, NO.2
main69999-0K011iGGN155,GUN155..EPT,TH;GGN155,GUN155..(SASUV,THSUV)..(L,S);GUN156..(SASUV,THSUV)..(ARL,GEN,SA,TH);GUN16#,LAN155,TGN156,166..EPTSU,SASUV,THSUV202006-202203
75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH
75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH

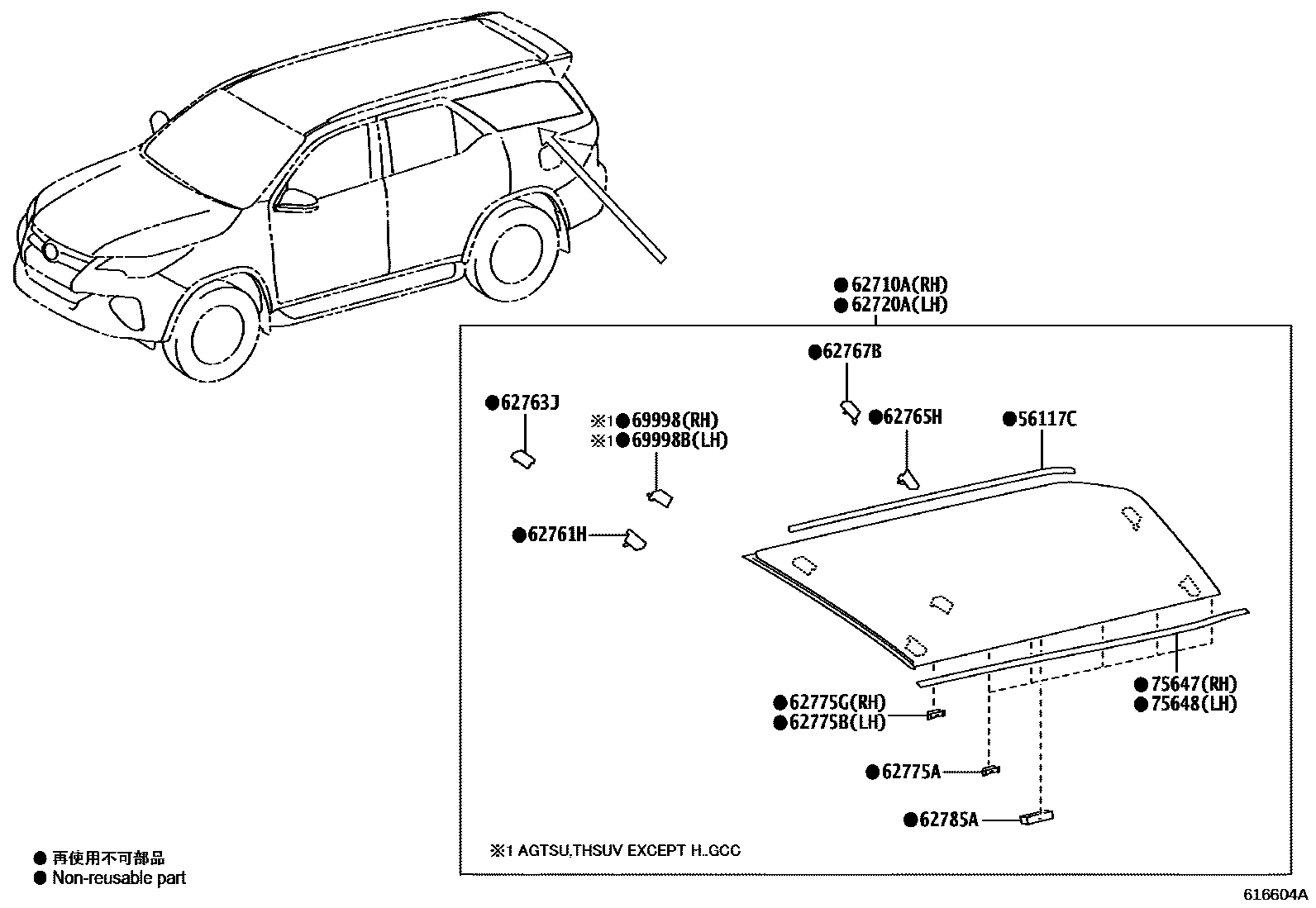

15 parts on this diagram · 1 diagram in section
SIDE WINDOW for Toyota FORTUNER
This section contains 15 genuine Toyota parts for the SIDE WINDOW system of the Toyota FORTUNER. Key components include: DAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE), WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH, RETAINER, QUARTER WINDOW GLASS, FRONT, RETAINER, QUARTER WINDOW GLASS, UPPER.
