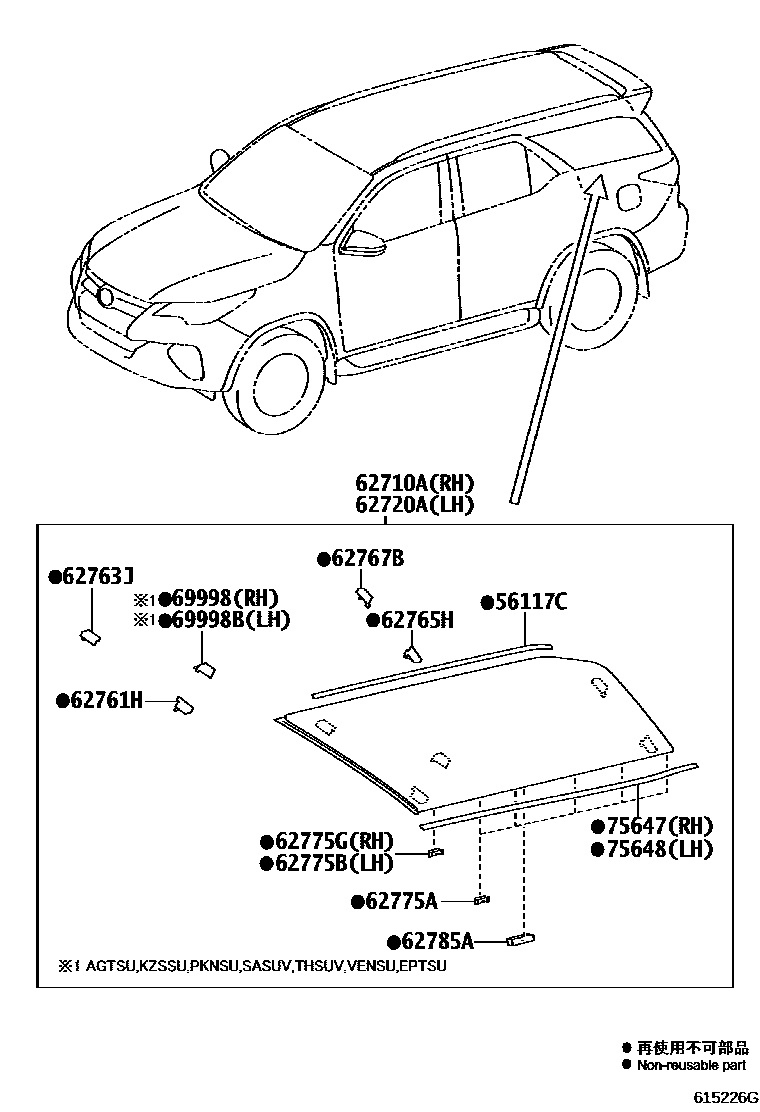

Toyota FORTUNER — SIDE WINDOW

56117CDAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE)

main56117-KK070×2iGUN156,166,TGN166..IND201507-202012

L=770

62710AWINDOW ASSY, QUARTER, RH

main62710-0K310iGUN156,166,TGN156,166..PKN,TH;GGN155,165,GUN155,165..THSUV..(H,M)201507-201705

main62710-0K311iGGN165,GUN165..THSUV..(H,M);GUN155,166,TGN156,166..PKN,TH;GUN156..(PKNSU,THSUV)..(H,M)..(GEN,PKN,TH)201706-202104

main62710-0K320iGUN156..M..ARL201507-201612

main62710-0K321iGGN155,GUN156..(H,M)..(ARL,EPT)201701-202101

main62710-0K380iGGN155,GUN156,KUN156,TGN156,166..AGTSU..M201512-202010

main62710-0K390iGGN155,GUN156,TGN156..H..BZAGT201512-202010

main62710-0K400iGGN165,GUN165..LHD..IDNSU..(H,M);GGN155,GUN156,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)..(GEN,LA,PH,VN)201601-202008

main62710-0K410iGUN165,TGN166..M..IDN;GUN155..(H,M)..(GEN,IDN)201601-202007

main62710-0K420iGUN156,166,TGN166..IND201610-201809

sub62710-0K640

main62710-0K460iGUN156..L..ARL;GGN155,165,GUN155,165,TGN156,166..THSUV..(L,S)201507-201705

main62710-0K461iGUN156..L..ARL;GGN155,165,GUN15#,165,TGN156,166..THSUV..(L,S)..(GCC,GEN,KZS,TH)201706-202005

main62710-0K470iGUN156..S..ARL201507-201612

main62710-0K471iGUN156..S..ARL;TGN156,166..EPT201701-202101

main62710-0K490supersedes 62710-0K480iGGN155,GUN156,166,KUN156,TGN166..RHD..S..SA201603-201612

BACK GLASS-FIX TYPE(PRIVACY)

main62710-0K491supersedes 62710-0K481iGGN155,GUN156,166,KUN156,TGN166..RHD..S..SA201701-202009

BACK GLASS-FIX TYPE(PRIVACY)

main62710-0K500iGUN156,165,KUN156,TGN156,16#..AGTSU..L201512-202010

main62710-0K510iGUN156,TGN156,16#..S..BZAGT201512-202010

main62710-0K520iGUN165..RHD..GEN;TGN156,166..(IDNSU,VNSUV)..(L,S);GGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(L,S)..(GCC,LA,PH,VN)201601-202008

main62710-0K530iGUN165..LHD..GEN;GUN155,165..S..IDN201601-202007

main62710-0K540iGUN155..L..MA201605-202012

main62710-0K550iGUN155,165,TGN156..M..MA201605-202012

main62710-0K580iGUN156,166,TGN166..IND201809-202012

main62710-0K600iGGN155,GUN15#..THSUV..H..GCC201806-202005

main62710-0K610iGGN155,GUN15#..IDNSU..H..GCC201806-202007

main62710-0K590iGGN155,GUN155,TGN156,166..THSUV..S..GCC201806-202005

BACK GLASS-FIX TYPE(GREEN,*HSEA)

main62710-0K620iGGN155,GUN155,TGN156,166..IDNSU..S..GCC201806-202007

BACK GLASS-FIX TYPE(GREEN,*HSEA)

62720AWINDOW ASSY, QUARTER, LH

main62720-0K210iGUN156,166,TGN156,166..PKN,TH;GGN155,165,GUN155,165..THSUV..(H,M)201507-201705

main62720-0K211iGGN155,GUN15#..THSUV..H201706-201806

main62720-0K220iGUN156..M..ARL201507-201612

main62720-0K221iGGN155,GUN156..(H,M)..(ARL,EPT)201701-202101

main62720-0K280iGGN155,GUN156,KUN156,TGN156,166..AGTSU..M201512-202010

main62720-0K290iGGN155,GUN156,TGN156..H..BZAGT201512-202010

main62720-0K300iGGN165,GUN165..LHD..IDNSU..(H,M);GGN155,GUN156,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)..(GEN,LA,PH,VN)201601-202008

main62720-0K310iGUN165,TGN166..M..IDN;GUN155..(H,M)..(GEN,IDN)201601-202007

main62720-0K320iGUN156,166,TGN166..IND201610-201809

sub62720-0K530

main62720-0K350iGUN156..L..ARL;GGN155,165,GUN155,165,TGN156,166..THSUV..(L,S)201507-201705

main62720-0K351iGUN156..L..ARL;GGN155,165,GUN15#,165,TGN156,166..THSUV..(L,S)..(GCC,GEN,KZS,TH)201706-202005

main62720-0K360iGUN156..S..ARL201507-201612

main62720-0K361iGUN156..S..ARL;TGN156,166..EPT201701-202101

main62720-0K380supersedes 62720-0K370iGGN155,GUN156,166,KUN156,TGN166..RHD..S..SA201603-201612

BACK GLASS-FIX TYPE(PRIVACY)

main62720-0K381supersedes 62720-0K371iGGN155,GUN156,166,KUN156,TGN166..RHD..S..SA201701-202009

BACK GLASS-FIX TYPE(PRIVACY)

main62720-0K390iGUN156,165,KUN156,TGN156,16#..AGTSU..L201512-202010

main62720-0K400iGUN156,TGN156,16#..S..BZAGT201512-202010

main62720-0K410iGUN165..RHD..GEN;TGN156,166..(IDNSU,VNSUV)..(L,S);GGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(L,S)..(GCC,LA,PH,VN)201601-202008

main62720-0K420iGUN165..LHD..GEN;GUN155,165..S..IDN201601-202007

main62720-0K430iGUN155..L..MA201605-202012

main62720-0K440iGUN155,165,TGN156..M..MA201605-202012

main62720-0K470iGUN156,166,TGN166..IND201809-202012

sub62720-0K530

main62720-0K490iGGN155,GUN15#..THSUV..H..GCC201806-202005

main62720-0K500iGGN155,GUN15#..IDNSU..H..GCC201806-202007

main62720-0K480iGGN155,GUN155,TGN156,166..THSUV..S..GCC201806-202005

BACK GLASS-FIX TYPE(GREEN,*HSEA)

main62720-0K510iGGN155,GUN155,TGN156,166..IDNSU..S..GCC201806-202007

BACK GLASS-FIX TYPE(GREEN,*HSEA)

62761HRETAINER, QUARTER WINDOW GLASS, FRONT

main62761-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810

RH

main62761-0K051iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104

RH

main62761-0K090iGUN156,166,TGN166..IND201610-202007

RH

main62761-0K091iGUN156,166,TGN166..IND202008-202012

RH

main62761-0K100iGUN155,165,TGN156..MA201605-201810

RH

main62761-0K101iGUN155,165,TGN156..MA201811-202012

RH

main62762-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810

LH

main62762-0K051iGGN155,TGN156,166..EPT201811-202101

LH

main62762-0K090iGUN156,166,TGN166..IND201610-202007

LH

main62762-0K091iGUN156,166,TGN166..IND202008-202012

LH

main62762-0K100iGUN155,165,TGN156..MA201605-201810

LH

main62762-0K101iGUN155,165,TGN156..MA201811-202012

LH

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810

RH

main62763-0K051iGGN155,TGN156,166..EPT201811-202101

RH

main62763-0K090iGUN156,166,TGN166..IND201610-202007

RH

main62763-0K091iGUN156,166,TGN166..IND202008-202012

RH

main62763-0K100iGUN155,165,TGN156..MA201605-201810

RH

main62763-0K101iGUN155,165,TGN156..MA201811-202012

RH

main62764-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810

LH

main62764-0K011iGGN155,TGN156,166..EPT201811-202101

LH

main62764-0K050iGUN156,166,TGN166..IND201610-202007

LH

main62764-0K051iGUN156,166,TGN166..IND202008-202012

LH

main62764-0K060iGUN155,165,TGN156..MA201605-201810

LH

main62764-0K061iGUN155,165,TGN156..MA201811-202012

LH

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810

RH

main62765-0K051iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104

RH

main62765-0K090iGUN156,166,TGN166..IND201610-202007

RH

main62765-0K091iGUN156,166,TGN166..IND202008-202012

RH

main62765-0K100iGUN155,165,TGN156..MA201605-201810

RH

main62765-0K101iGUN155,165,TGN156..MA201811-202012

RH

main62766-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810

LH

main62766-0K011iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104

LH

main62766-0K050iGUN156,166,TGN166..IND201610-202007

LH

main62766-0K051iGUN156,166,TGN166..IND202008-202012

LH

main62766-0K060iGUN155,165,TGN156..MA201605-201810

LH

main62766-0K061iGUN155,165,TGN156..MA201811-202012

LH

62767BRETAINER, QUARTER WINDOW GLASS, REAR

main62767-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810

RH

main62767-0K011iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104

RH

main62767-0K050iGUN156,166,TGN166..IND201610-202007

RH

main62767-0K051iGUN156,166,TGN166..IND202008-202012

RH

main62767-0K060iGUN155,165,TGN156..MA201605-201810

RH

main62767-0K061iGUN155,165,TGN156..MA201811-202012

RH

main62768-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810

LH

main62768-0K011iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104

LH

main62768-0K050iGUN156,166,TGN166..IND201610-202007

LH

main62768-0K051iGUN156,166,TGN166..IND202008-202012

LH

main62768-0K060iGUN155,165,TGN156..MA201605-201810

LH

main62768-0K061iGUN155,165,TGN156..MA201811-202012

LH

62775ACLIP, QUARTER WINDOW

main62775-0K220×10iGUN155,165,TGN156..MA201512-202009

62775BCLIP, QUARTER WINDOW, LH

main62775-0K210iGUN156,166,TGN166..IND201512-202012

62775GCLIP, QUARTER WINDOW, RH

main62775-0K210iGUN156,166,TGN166..IND201507-202012

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030×2iGUN156,16#,TGN166201507-201511

main68294-26030×2iGGN155,TGN156,166..EPT201512-202101

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-0K010iGGN155,GUN15#..THSUV..H201507-201806

main69998-0K011iGGN155,TGN156,166..EPT201811-202101

69998BPIN, QUARTER WINDOW GUIDE PIECE, NO.2

main69999-0K010iGGN155,GUN15#..THSUV..H201507-201806

main69999-0K011iGGN155,TGN156,166..EPT201811-202101

75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH

main75647-0K010iGUN156,166,TGN166..IND201507-202012

main75647-0K060iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..(L,S)201507-202101

75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH

main75648-0K010iTGN156..(H,M)..(BZAGT,GEN);TGN156..(M,S)..(LA,MA,PKN,VN);TGN166..(H,M,S)..(GEN,IDN,LA,PKN,TH);GGN155,165,GUN15#,16#,KUN156..(AGTSU,IDNSU,MASUV,PKNSU,THSUV,VNSUV)..(201507-202104

main75648-0K060iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..(L,S)201507-202101

15 parts on this diagram · 1 diagram in section
