Toyota FORTUNER — SIDE WINDOW
62710AWINDOW ASSY, QUARTER, RH
*TT,T=3.1,GREEN
main62710-0K190iKUN51,TGN61..RHD..(IDN,SA);GGN50,60,KUN50,6#,TGN51..RHD..SR..(GEN,IDN,SA)201107-201512
*TT,T=3.1,PRIVACY
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN; *TT,T=3.5,GREEN,AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; *TT,T=3.5,GREEN,AIR CONDITIONER-SINGLE AIR CONDITIONER
62711ASPACER, QUARTER WINDOW GLASS, NO.1
62711BSPACER, QUARTER WINDOW GLASS, NO.2
main61667-0K010iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
62720AWINDOW ASSY, QUARTER, LH
main62720-0K031iKUN51..LHD..SA;KUN60..LHD..GEN;GGN50,KUN51..IDSUV..LA;KUN60,LAN50,TGN51..GCC,KZS,MA,PHL,SA,TH;GGN50,KUN5#,61,TGN61..GCC,GEN,MA,PHL,TH201107-201703
*TT,T=3.1,GREEN
main62720-0K041iKUN51,TGN61..RHD..(IDN,SA);GGN50,60,KUN50,6#,TGN51..RHD..SR..(GEN,IDN,SA)201107-201512
*TT,T=3.1,PRIVACY
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.1,GREEN
4 parts on this diagram · 1 diagram in section

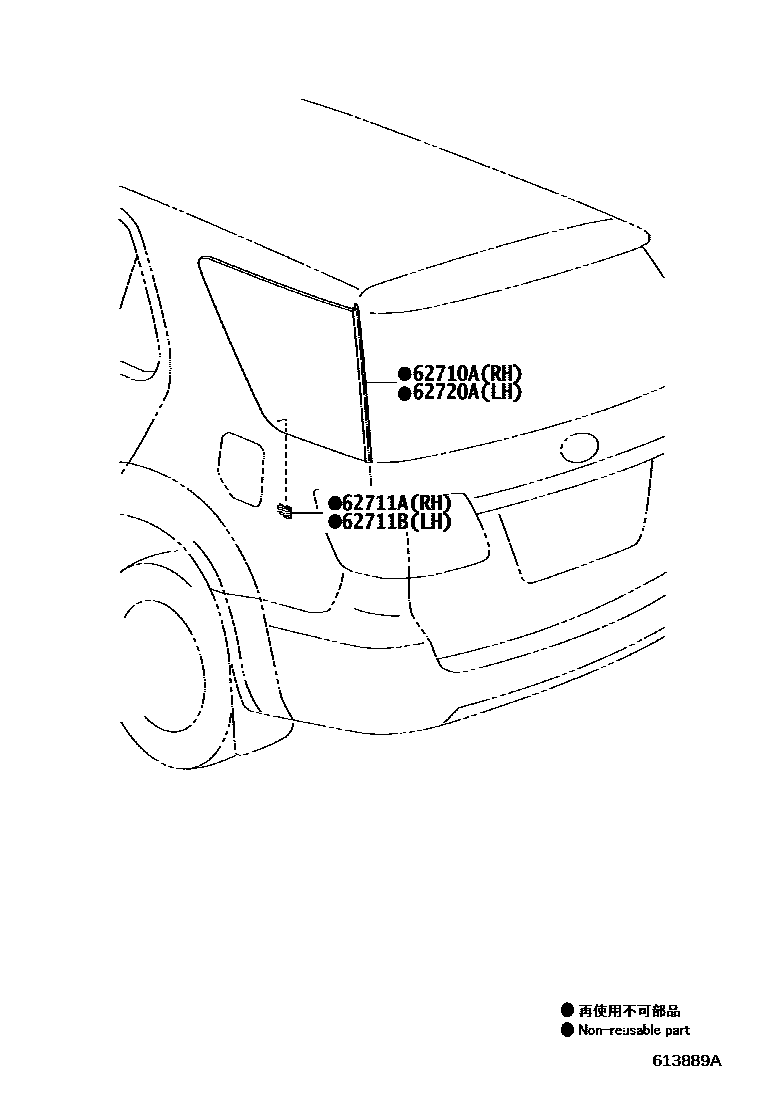

SIDE WINDOW for Toyota FORTUNER
This section contains 4 genuine Toyota parts for the SIDE WINDOW system of the Toyota FORTUNER. Key components include: WINDOW ASSY, QUARTER, RH, SPACER, QUARTER WINDOW GLASS, NO.1, SPACER, QUARTER WINDOW GLASS, NO.2, WINDOW ASSY, QUARTER, LH.
