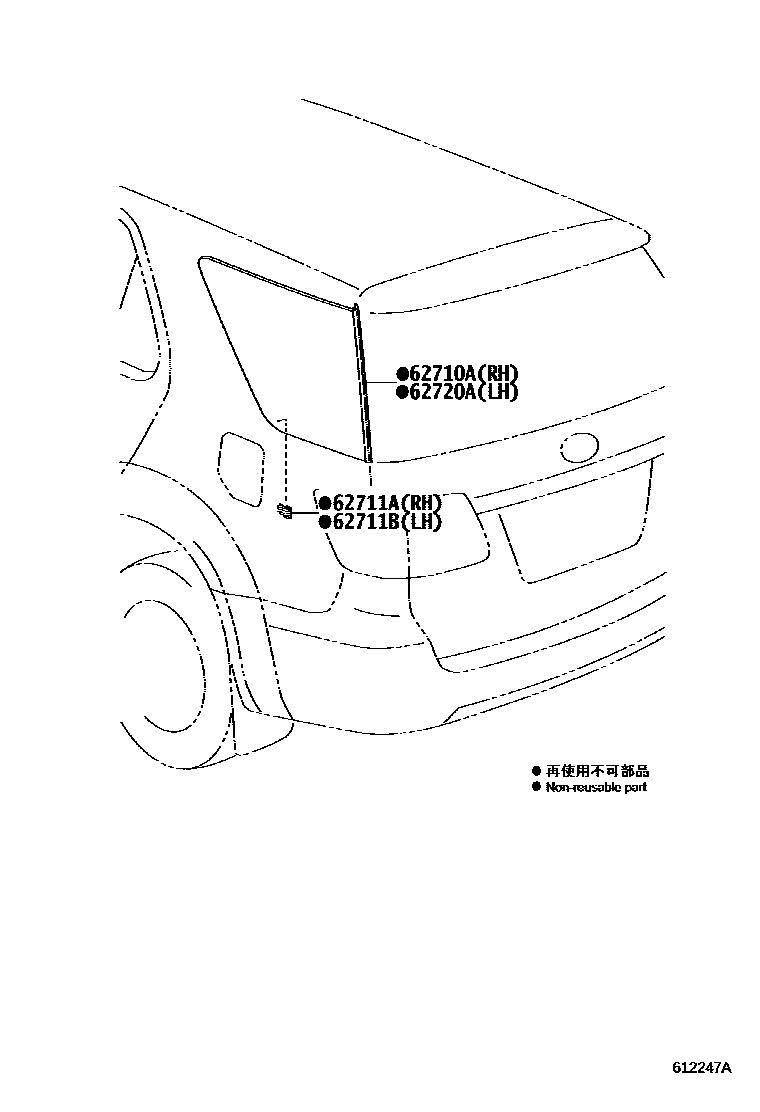

Toyota FORTUNER — SIDE WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-0K030iGGN50,KUN51,TGN51,61..GCC,GEN200507-200806

*TT,T=3.1,GREEN

main62710-0K031iGGN50,KUN51,TGN51,61..GCC,GEN200807-200808

*TT,T=3.1,GREEN

main62710-0K050iKUN60,TGN51,61..IDN200504-200712

*TT,T=3.1,PRIVACY

main62710-0K051iKUN60..SUVW..IDN;GGN50,60,KUN51,61,TGN51,61..RHD..(IDN,SA)200801-200810

*TT,T=3.1,PLIVACY

main62710-0K080iKUN51..PHL,TH;KUN51..LHD..SA;KUN50,60,LAN50,TGN51,61..MA,PHL,SA,TH200501-200806

*TT,T=3.1,GREEN

main62710-0K081iKUN51..LHD..SA;KUN50,LAN50..5F;KUN51..SUVW..(PHL,TH);KUN60,TGN51,61..SUVW..(MA,PHL,SA,TH)200807-200810

*TT,T=3.1,GREEN

sub62710-0K082

main62710-0K130iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

*TT,T=3.5,GREEN

main62710-0K170iGGN50,TGN51,61..GCC200808-201107

*TT,T=3.1,GREEN,AIR CONDITIONER-AUTO AIR CONDITIONER DUAL

main62710-0K180iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

*TT,T=3.5,GREEN

sub62710-0K181

main62710-0K190iGGN50,60..5FC..SA;KUN51,6#,TGN51,61..RHD..(IDN,SA)200808-201108

*TT,T=3.1,PRIVACY

main62710-0K200iKUN50,61,TGN61..4FC..(MA,PHL,TH);KUN51..(IDSUV,SUVW)..(GEN,PHL,TH);KUN60,LAN50,TGN51..MA,PHL,SA,TH,VN200808-201204

*TT,T=3.1,GREEN

sub62710-0K201

main62710-0K230iKUN51..IND200908-201204

*TT,T=3.1,GREEN

62711ASPACER, QUARTER WINDOW GLASS, NO.1

main61667-0K010iTGN51..TH200501-200708

62711BSPACER, QUARTER WINDOW GLASS, NO.2

main61667-0K010iKUN50,TGN51..MA200501-200809

62720AWINDOW ASSY, QUARTER, LH

main62720-0K030iKUN51..LHD..SA;LAN50,TGN51..GCC,MA,SA,TH;GGN50,KUN5#,60,TGN61..GCC,GEN,MA,PHL,TH200501-200806

*TT,T=3.1,GREEN

main62720-0K031iKUN50..4FC;KUN51..LHD..SA;LAN50,TGN51..GCC,MA,SA,VN;GGN50,KUN51,6#,TGN61..GCC,GEN,PHL,TH,VN200808-201204

*TT,T=3.1,GREEN

sub62720-0K032

main62720-0K040iKUN60,TGN51,61..IDN200504-200712

*TT,T=3.1,PRIVACY

main62720-0K041iKUN60..SUVW..IDN;GGN50,60,KUN51,61,TGN51,61..RHD..(IDN,SA)200801-200810

*TT,T=3.1,PRIVACY

main62720-0K100iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

*TT,T=3.5,GREEN

sub62720-0K101

main62720-0K170iKUN51..IND200908-201204

*TT,T=3.1,GREEN

4 parts on this diagram · 1 diagram in section
