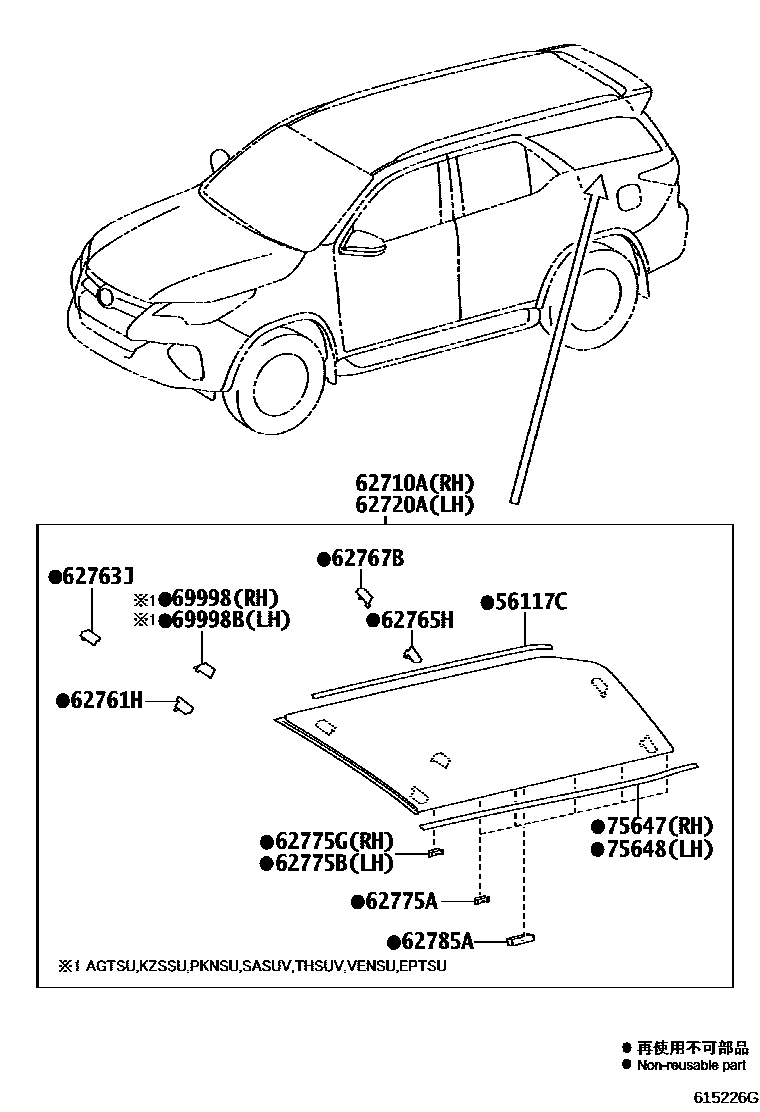

Toyota FORTUNER — SIDE WINDOW
56117CDAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE)
L=770
62710AWINDOW ASSY, QUARTER, RH
main62710-0K461iGUN156..L..ARL;GGN155,165,GUN15#,165,TGN156,166..THSUV..(L,S)..(GCC,GEN,KZS,TH)201706-202005
main62710-0K481iTGN166..L..SA;GUN156,KUN156..LHD..SA;GUN155,165,KUN165,LAN155,TGN156..SA201706-202009
BACK GLASS-FIX TYPE(PRIVACY)
BACK GLASS-FIX TYPE(PRIVACY)
main62710-0K520iGUN165..RHD..GEN;TGN156,166..(IDNSU,VNSUV)..(L,S);GGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(L,S)..(GCC,LA,PH,VN)201601-202008
62720AWINDOW ASSY, QUARTER, LH
main62720-0K351iGUN156..L..ARL;GGN155,165,GUN15#,165,TGN156,166..THSUV..(L,S)..(GCC,GEN,KZS,TH)201706-202005
main62720-0K371iTGN166..L..SA;GUN156,KUN156..LHD..SA;GUN155,165,KUN165,LAN155,TGN156..SA201706-202009
BACK GLASS-FIX TYPE(PRIVACY)
BACK GLASS-FIX TYPE(PRIVACY)
main62720-0K410iGUN165..RHD..GEN;TGN156,166..(IDNSU,VNSUV)..(L,S);GGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(L,S)..(GCC,LA,PH,VN)201601-202008
62761HRETAINER, QUARTER WINDOW GLASS, FRONT
main62761-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810
RH
RH
RH
RH
RH
RH
main62762-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810
LH
main62762-0K051iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104
LH
LH
LH
LH
LH
62763JRETAINER, QUARTER WINDOW GLASS, UPPER
main62763-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810
RH
main62763-0K051iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104
RH
RH
RH
RH
RH
main62764-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810
LH
main62764-0K011iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104
LH
LH
LH
LH
LH
62765HRETAINER, QUARTER WINDOW GLASS, LOWER
main62765-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810
RH
main62765-0K051iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104
RH
RH
RH
RH
RH
main62766-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810
LH
main62766-0K011iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104
LH
LH
LH
LH
LH
62767BRETAINER, QUARTER WINDOW GLASS, REAR
main62767-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810
RH
RH
RH
RH
RH
RH
main62768-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV201507-201810
LH
main62768-0K011iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV201811-202104
LH
LH
LH
LH
LH
62775ACLIP, QUARTER WINDOW
62775BCLIP, QUARTER WINDOW, LH
62775GCLIP, QUARTER WINDOW, RH
62785ASPACER, QUARTER WINDOW GLASS
69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1
69998BPIN, QUARTER WINDOW GUIDE PIECE, NO.2
main69999-0K010iGGN155..BZAGT,EPT;GGN155,GUN155..(AGTSU,SASUV,THSUV)..(L,M,S);GUN156..(AGTSU,PKNSU,SASUV,THSUV)..(ARL,BZAGT,GEN,LA,PKN,SA,TH);GGN165,GUN16#,KUN156,165,LAN155,TGN156201507-201810
main69999-0K011iGGN155..BZAGT;GUN156..(AGTSU,PKNSU,SASUV,THSUV)..(ARL,BZAGT,GEN,LA,PKN,SA,TH);GGN155,GUN155,16#,LAN155,TGN156,16#..(AGTSU,PKNSU,SASUV,THSUV)..(L,M,S)201811-202104
75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH
main75647-0K060iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..(L,S)201507-202101
75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH
main75648-0K060iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..(L,S)201507-202101
15 parts on this diagram · 1 diagram in section
SIDE WINDOW for Toyota FORTUNER
This section contains 15 genuine Toyota parts for the SIDE WINDOW system of the Toyota FORTUNER. Key components include: DAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE), WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH, RETAINER, QUARTER WINDOW GLASS, FRONT, RETAINER, QUARTER WINDOW GLASS, UPPER.
