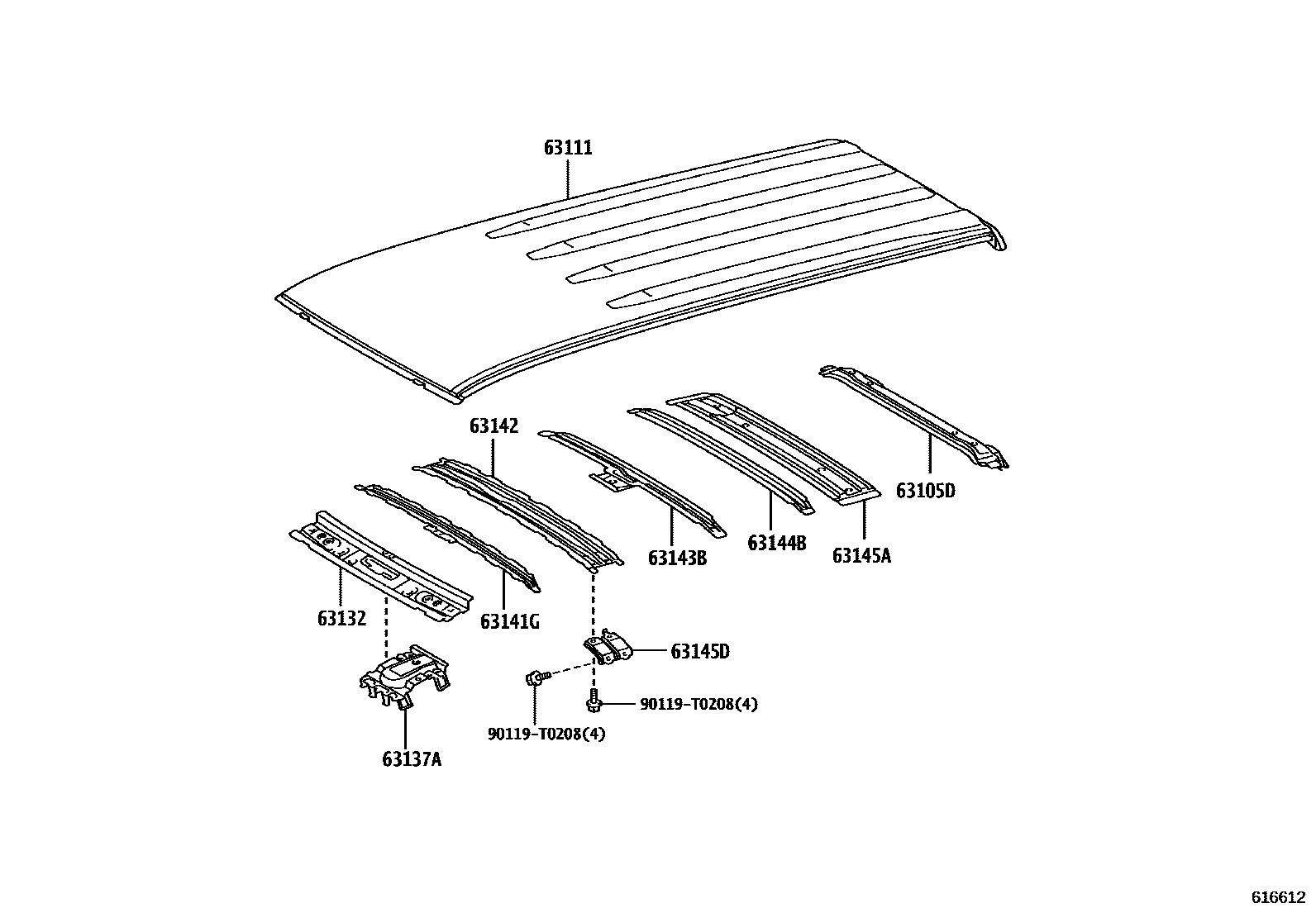

Toyota FORTUNER — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF RAIL

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK020iGUN156..IDNSU..GCC;GUN156..MASUV,SASUV,THSUV;GGN155,GUN155,16#,LAN155,TGN156,166..EPT,GCC,MA,SA,TH202006-202203

main63105-KK080iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

63111PANEL, ROOF

main63111-KK040iGUN156,165..L..(ARL,PH,VN);GUN156,LAN155,TGN156..LHD..SA202006-202204

main63111-KK050iGUN156,TGN156,166..PKN202006-202201

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK900iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

sub63132-KK021

main63132-KK902iGUN156,TGN156,166..PKN202101-202201

sub63132-KK031

63137ABRACKET, DOME LAMP, NO.1

main63137-KK030iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63104-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-KK050iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63103-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63106-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK010×2iGGN155,GUN15#,16#,LAN155,TGN156,166202006-202010

main63145-KK030×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV202010-202204

90119T0208

main90119-T0208

11 parts on this diagram · 2 diagrams in section
