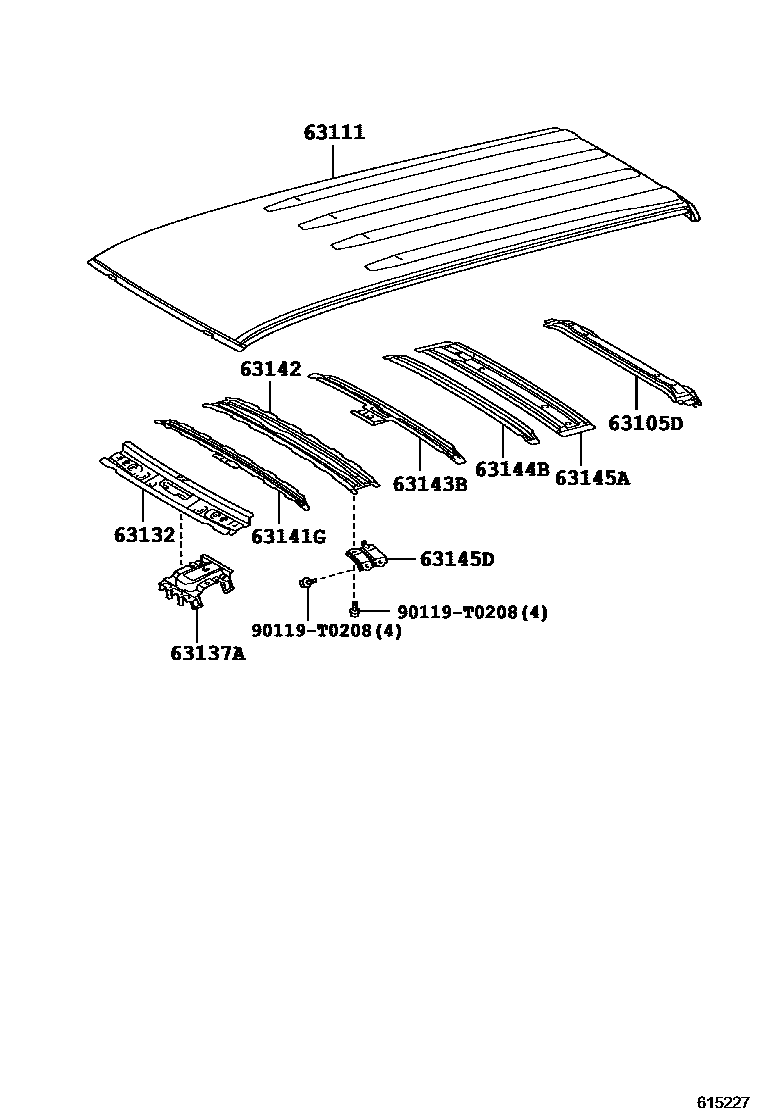

Toyota FORTUNER — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF RAIL

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK020supersedes 63105-KK020iGUN165..S..PH;GUN165..GCC,GEN,IDN,LA,MA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

63111PANEL, ROOF

main63111-KK040iTGN166..L..GCC201905-202009

main63111-KK050supersedes 63111-KK050iTGN166..6FC..L..GCC201507-201905

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK900supersedes 63132-KK900iGUN165..S..PH;GUN165..GEN,IDN,VN;TGN156,166..L..GEN;GUN165..IDNSU..L..GCC;TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GGN155,GUN15#..IDNSU..(GCC,GEN,IDN,PH,VN);TGN166..201507-201806

sub63132-KK021

main63132-KK901iGGN155,GUN156,165,TGN156,16#..AGTSU201808-202010

main63132-KK902iGUN156,TGN166..PKN201902-202104

sub63132-KK031

63137ABRACKET, DOME LAMP, NO.1

main63137-KK030supersedes 63137-KK030iGUN156,166,TGN166..IND201507-202012

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63104-KK010supersedes 63104-KK010iGUN156,166,TGN166..IND201507-202012

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-KK050supersedes 63141-KK050iGUN156,166,TGN166..IND201507-202012

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63103-KK010supersedes 63103-KK010iGUN156,166,TGN166..IND201507-202012

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-KK010supersedes 63144-KK010iGUN156,166,TGN166..IND201507-202012

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63106-KK010supersedes 63106-KK010iGUN156,166,TGN166..IND201507-202012

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK010×2supersedes 63145-KK010iTGN166..EPT,PKN;GGN155,GUN15#,165,TGN156..(H,L,M)..(EPT,MA,PKN)201507-202010

main63145-KK030×2iGGN155,TGN156,166..EPT202010-202101

90119T0208

main90119-T0208

11 parts on this diagram · 2 diagrams in section
