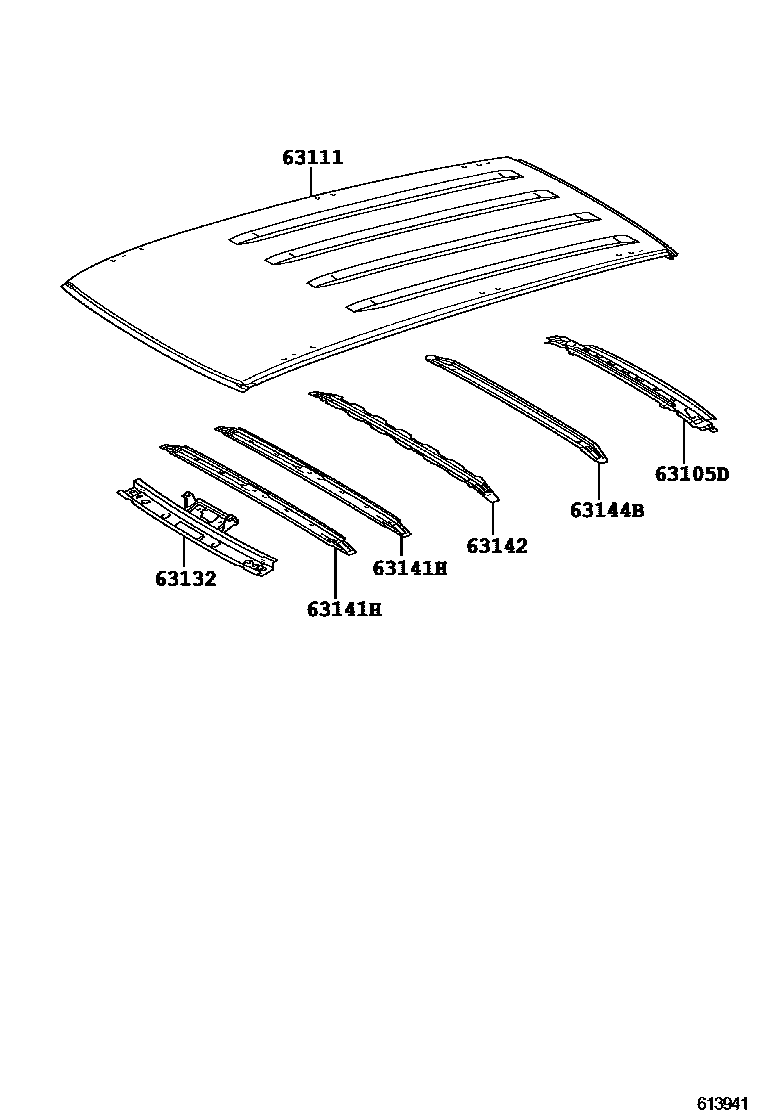

Toyota FORTUNER — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF RAIL

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-0K901supersedes 63105-0K901iTGN51..PKN201107-201609

63111PANEL, ROOF

main63111-0K060supersedes 63111-0K070iKUN61..4FC;KUN60..5FC..TH;TGN51..CO,GEN,IDN,MA;TGN61..CO,IDN,LA,PHL;KUN61..(5F,5FC)..(SA,TH);KUN51..5F..(CO,GEN,LA,SA);KUN51..(4FC,5FC)..(CO,GEN,LA,PHL,SA,TH);GGN50201107

main63111-0K070iKUN60..TH201107-201208

63132PANEL, WINDSHIELD HEADER, INNER

main63102-0K040supersedes 63102-0K040iKUN61..4FC;TGN51..5F..SA;TGN51..GCC,GEN,IDN,MA;GGN50,KUN51..IDSUV..LA;KUN61,LAN50..RHD..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,TGN61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH201107

main63102-0K090iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201310-201510

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-0K021iKUN51..CO,LA;KUN51..THSUV;GGN50,TGN51,61..LHD..(CO,GEN,KZS,LA)201107-201703

REAR

main63141-0K011×2supersedes 63141-0K011iKUN51,6#..(5F,5FC)..IND201107-201608

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-0K040iKUN51..CO,LA;KUN51..THSUV;GGN50,TGN51,61..LHD..(CO,GEN,KZS,LA)201107-201703

main63142-0K011supersedes 63142-0K011iTGN51..PKN201107-201609

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63106-0K040iKUN51..CO,LA;KUN51..THSUV;GGN50,TGN51,61..LHD..(CO,GEN,KZS,LA)201107-201703

main63144-0K011supersedes 63144-0K011iKUN61..4FC;TGN51..5F..SA;TGN51..GCC,GEN,IDN,MA;KUN61,LAN50..RHD..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,TGN61..(IDSUV,SASUV,SUVW)..(ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH)201107

6 parts on this diagram · 2 diagrams in section
