Toyota FORTUNER — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

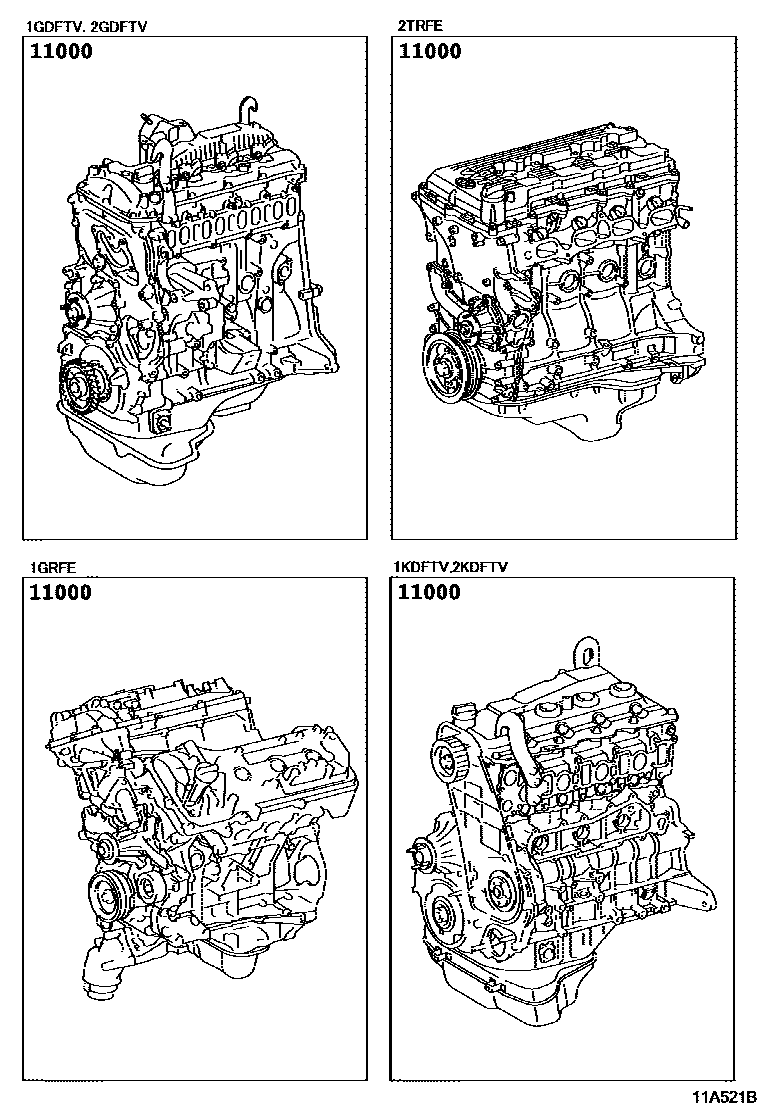

11000ENGINE ASSY, PARTIAL

main19000-0C250i2TRFE..TGN156,166..6FC..(L,M)..(GCC,GEN,IDN)201601-201806

main19000-0C260i2TRFE..TGN168..5F201607-202010

main19000-0C270supersedes 19000-0C370i2TRFE..TGN156,166..SA201603-202009

main19000-0C280supersedes 19000-0C280i2TRFE..TGN156,166..THSUV..S..GCC201507-201809

main19000-0C290i2TRFE..TGN156,166..BZAGT,LA201512-202010

main19000-0C420i2TRFE..TGN168..6FC201607-202010

main19000-0C430i2TRFE..TGN166..L..GEN;2TRFE..TGN166..IDNSU..(GCC,IDN,PH);2TRFE..TGN156..LHD..IDNSU..(GCC,GEN)201806-202004

main19000-0E010i1GDFTV..GUN156..LA201512-201904

main19000-0E020i1GDFTV..GUN156,166..RHD..SA201710-201904

CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT

main19000-0E030i1GDFTV..GUN156..IART201512-202010

main19000-0E050i2GDFTV..GUN155..L..MA201709-201904

main19000-0E070supersedes 19000-0E090i2GDFTV..GUN165..6F..SA201507-201710

main19000-0E080supersedes 19000-0E080i1GDFTV..GUN156,166..PH,TH,VN201507-201904

main19000-0E090i2GDFTV..GUN165..6F..IDN201601-201904

main19000-0E100i2GDFTV..GUN155..MA201601-201709

sub19000-0E250

main19000-0E190i2GDFTV..GUN165..6F..IDN201904-202007

main19000-0E200i2GDFTV..GUN165..6F..SA;2GDFTV..GUN155..(L,M,S)..(GEN,IDN,MA,SA);2GDFTV..GUN165..RHD..(IDNSU,MASUV,SASUV)..6FC201904-202012

main19000-0E210i1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L)..(ARL,GEN);1GDFTV..GUN156,166..(AGTSU,IDNSU,PKNSU,SASUV)..HDCR..(BZAGT,GEN,PKN,SA)201904-202104

main19000-0E220i1GDFTV..GUN156..(AGTSU,THSUV)..(L,M,S)..(GEN,LA)201904-202010

main19000-0E230supersedes 19000-0E250i2GDFTV..GUN155,165..LHD..GEN;2GDFTV..GUN155,165..6FC..(GCC,PH,TH,VN)201904-202008

main19000-0E240i1GDFTV..GUN156,166..GCC,PH,TH,VN201904-202008

main19000-0L061i1KDFTV..KUN156201512-201709

sub19000-30431

main19000-30451i2KDFTV..KUN165201603-201709

main19000-31L11i1GRFE..GGN155,165201512-202101

main19000-54A40i5LE..LAN155201603-202009

main19000-0E060i1GDFTV..GUN156..6FC..LA201810-202010

PERU SPEC

1 parts on this diagram · 2 diagrams in section
