Toyota FORTUNER — PARTIAL ENGINE ASSEMBLY

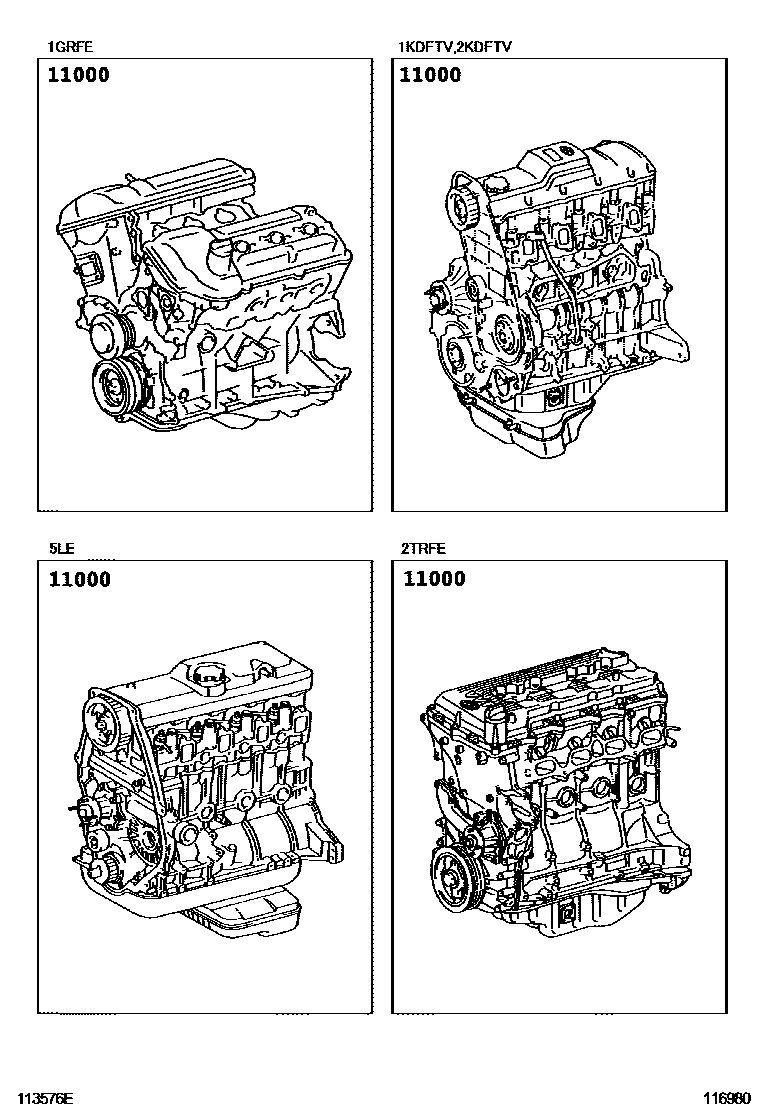

11000ENGINE ASSY, PARTIAL

main19000-0C011supersedes 19000-0C061i2TRFE..TGN51,61..VN201107-201611

main19000-0C061i2TRFE..TGN61..HTWC..(LA,TH)201107-201601

main19000-0C201i2TRFE..TGN61..HTWCF201110-201510

main19000-0C230i2TRFE..TGN51..KZS201403-201703

main19000-0L061i1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(PHL,SA,TH)201107-201512

(L)

main19000-0L141i2KDFTV..KUN50,60..IDN,MA,PHL201107-201208

(L)

main19000-0L170i2KDFTV..KUN50..IDN;2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN201202-201611

*130

main19000-0L190i1KDFTV..KUN61..IND;1KDFTV..KUN51..5F..IND;1KDFTV..KUN61..5FC..TH;1KDFTV..KUN51..RHD..5FC;1KDFTV..KUN51..IDSUV..5FC201201-201608

main19000-0L220i1KDFTV..KUN51..IART201204-201510

***

main19000-0L240i2KDFTV..KUN60..5F..IND201501-201608

sub19000-30820

main19000-30411i2KDFTV..KUN50,60..IDN,MA,PHL201107-201208

(J)

main19000-30431supersedes 19000-30690i1KDFTV..KUN51..5F..CO201111-201410

main19000-30690i1KDFTV..KUN51..5F..CO201410-201510

main19000-30720i1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN201107-201510

main19000-30790supersedes 19000-30820i2KDFTV..KUN50..MA201210-201611

*360

main19000-30830i2KDFTV..KUN60..5FC201208-201608

main19000-31511i1GRFE..GGN50..5F201107-201207

main19000-31L11i1GRFE..GGN50,60..5FC..(ANCOM,GCC,SA)201411

main19000-54A40i5LE..LAN50201108-201512

main19000-0C121i2TRFE..TGN51..5F..SA201108-201310

ENGINE-2TR-FE LEADED

1 parts on this diagram · 1 diagram in section
