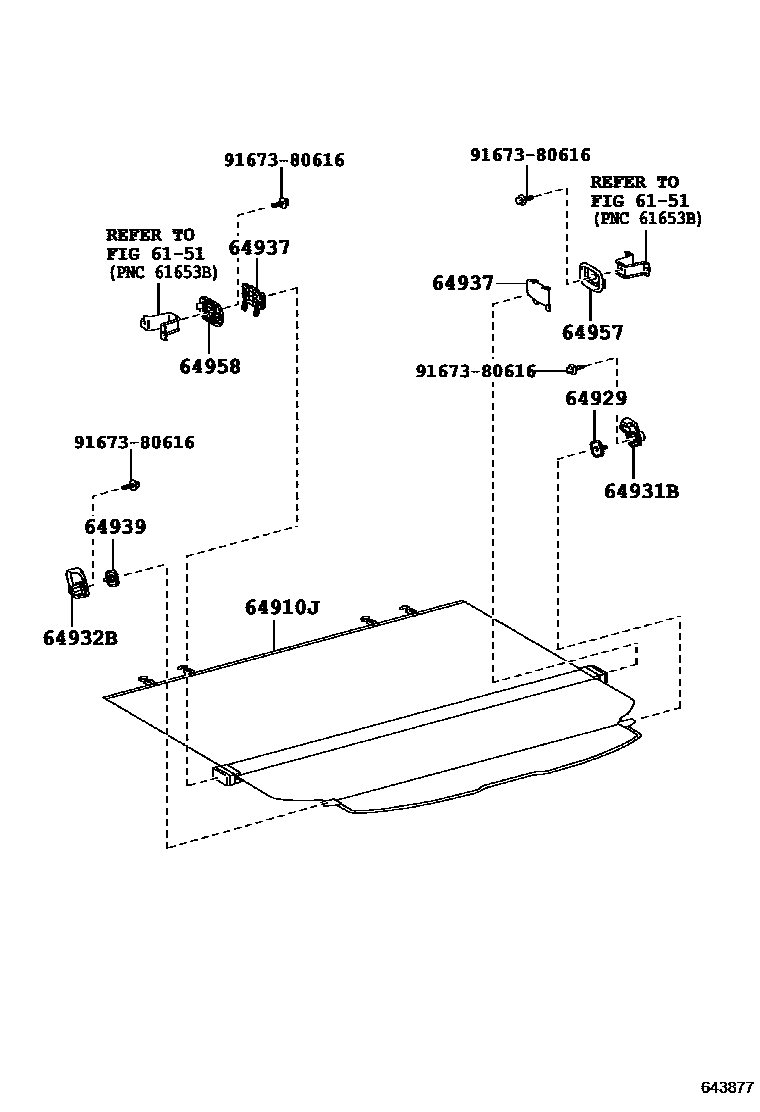

Toyota FORTUNER — PACKAGE TRAY PANEL
64910JCOVER ASSY, TONNEAU
main64910-71020-C0iGUN156,TGN168..L..BZAGT;GUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010 REAR NO.2 SEAT-WITHOUT,BLACK,TRIM4#
64929COVER, TONNEAU COVER HOLDER, RH
main62538-71010-C0iGUN156,TGN168..L..BZAGT;GUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010 REAR NO.2 SEAT-WITHOUT,BLACK,TRIM4#
64931BHANGER, TONNEAU COVER, RH
main64931-71020-C0iGUN156,TGN168..L..BZAGT;GUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010 REAR NO.2 SEAT-WITHOUT,BLACK,TRIM4#
64932BHANGER, TONNEAU COVER, LH
main64932-71020-C0iGUN156,TGN168..L..BZAGT;GUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010 REAR NO.2 SEAT-WITHOUT,BLACK,TRIM4#
64937CAP, TONNEAU COVER HOLDER, NO.1
main62538-0K080-C0×2iGUN156,TGN168..L..BZAGT;GUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010 REAR NO.2 SEAT-WITHOUT,BLACK,TRIM4#
64939COVER, TONNEAU COVER HOLDER, LH
main62538-71010-C0iGUN156,TGN168..L..BZAGT;GUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010 REAR NO.2 SEAT-WITHOUT,BLACK,TRIM4#
64957RETAINER, TONNEAU COVER, RH
main64957-71010-C0iGUN156,TGN168..L..BZAGT;GUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010 REAR NO.2 SEAT-WITHOUT,BLACK,TRIM4#
64958RETAINER, TONNEAU COVER, LH
main64958-71010-C0iGUN156,TGN168..L..BZAGT;GUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010 REAR NO.2 SEAT-WITHOUT,BLACK,TRIM4#
10 parts on this diagram · 1 diagram in section
